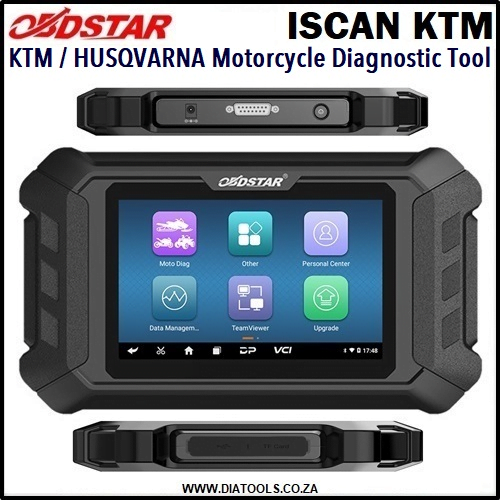

OBDStar ISCAN KTM / HUSQVARNA Motorcycle Diagnostic Tool

OBDStar ISCAN KTM and HUSQVARNA Motorcycle Diagnostic Tool

The OBDStar ISCAN KTM / HUSQVARNA Motorcycle Diagnostic Tool is a portable tablet which has super performance and industrial appearance design specialized for KTM, HUSQVARNA. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.

ALL OBDSTAR PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Obdstar/

OBDStar ISCAN KTM Functions:

1. New android 5.1.1 operation system.
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation.
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc.
4. Menu arbitrary selection is more convenient and quicker.
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults.
6. Wi-Fi connection to the internet, one-click software upgrade Via Official Website: Http://Www.Obdstar.Com/
7. One-click remote function, OBDStar technical staff remote assistance.

Advanced function:

1. The first fault guidance, help data, technical bulletin, diagnostic socket etc help you diagnose accurately and efficiently.
2. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults.
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

Motorcycle/snowmobile/ATV/UTV support series:

HUSQVARNA, KTM

Function Display:

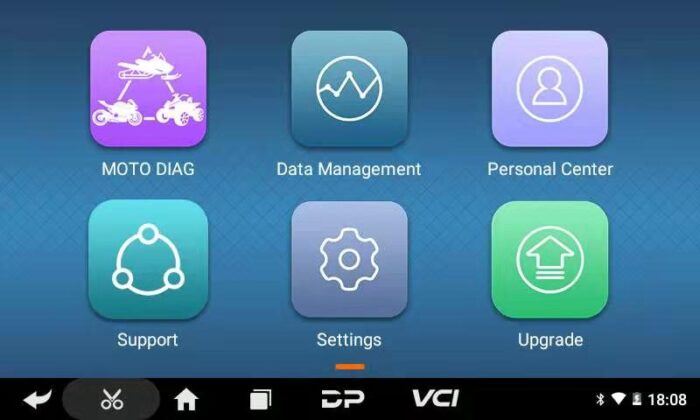

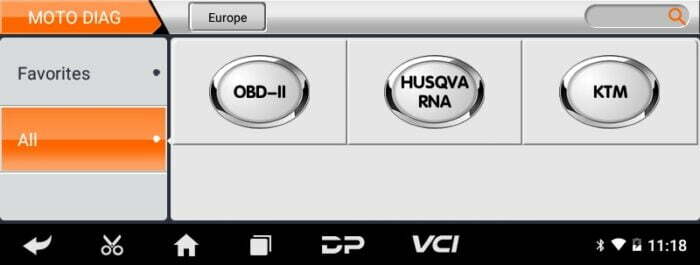

1) Main Page/Brand Supported:

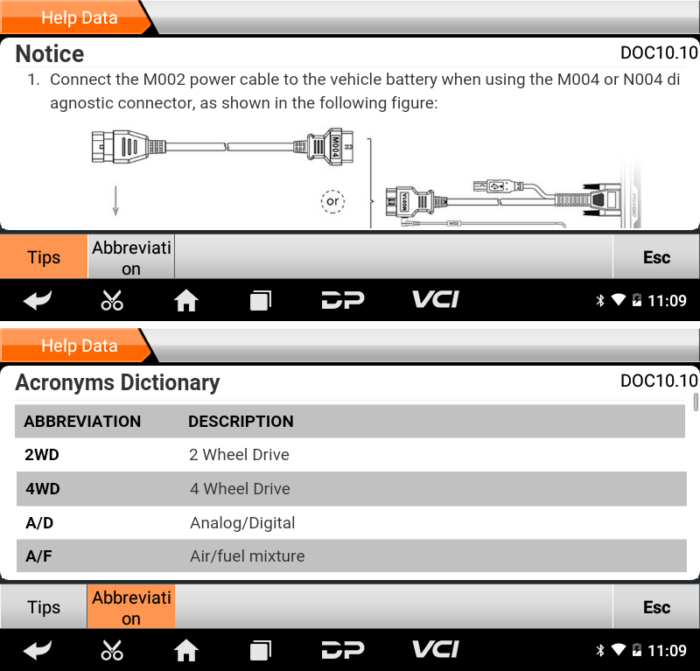

2) Help Data/Technical Bulletin/Diagnostic Guide:

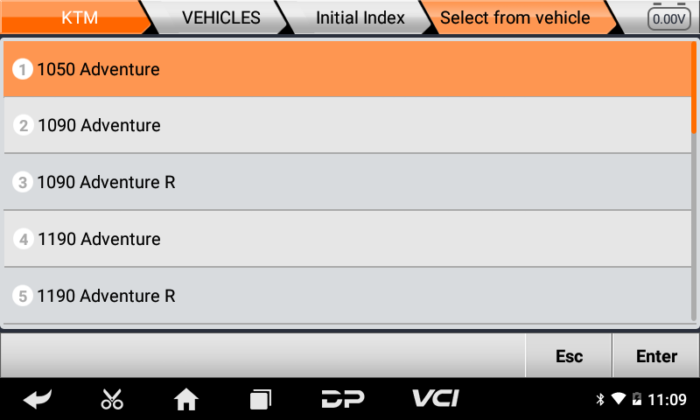

3）Supported Systems List/Vehicles List:

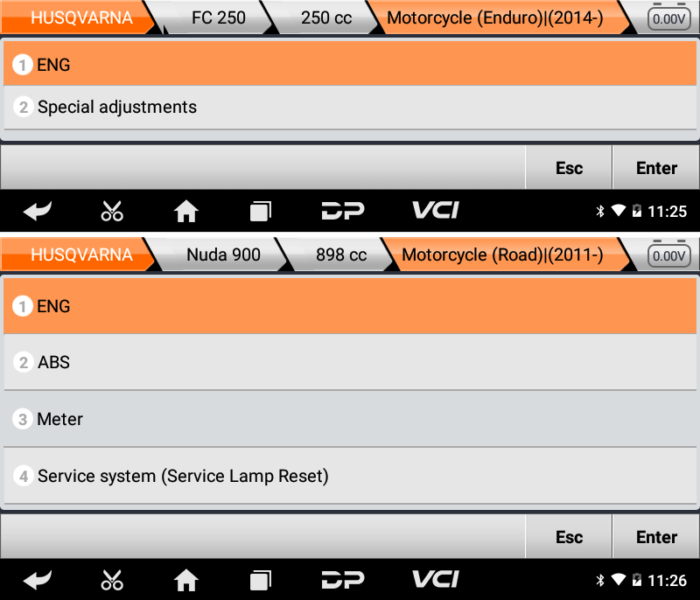

4) Special Function/Advanced Function-KTM:

• Distance Unit of Measurement.
• Pressure Measurement.
• Volume Unit of Measurement.
• Fuel Consumption Measurement Unit.
• Gear shift indicator level setting
• Time setting.
• Display language change.
• Date setting.
• Odometer wiring.
• Set distance remaining until next scheduled maintenance.
• Tyre pressure sensor enabling/ disabling.
• Electronic Suspension enabling/ disabling.
• Heated grips enabling/ disabling.
• Quick shift enabling/ disabling.
• Gear shift indicator.
• Type of tank.
• Model.
• Speed correction.
• Data reset.
• Transport mode.

5) Special Function-HUSQVARNA:

• TPS Reset.
• Reset of the Mixture Adaptation Values.
• Idle Motor Adjustment.
• Transmission Reset.
• Reset of all the Adaptation Values.

OBDStar ISCAN KTM Specifications:

• Operation system: Android 5.1.1.
• CPU: RK3128 quad-core ARM cortex A7.
• Battery: 2600mA, rechargeable polymer lithium battery.
• Extension memory card: 32G micro-SD (TF) card supported.
• LCD 5.0 inch.
• LCD resolution: 800*480.
• Touch screen: Capacitive touch screen.
• Wifi: Supported.
• Working temperature: -20℃~55℃ (14℉~131℉)
• Storage temperature: -20℃~70℃ (-4℉~158℉)

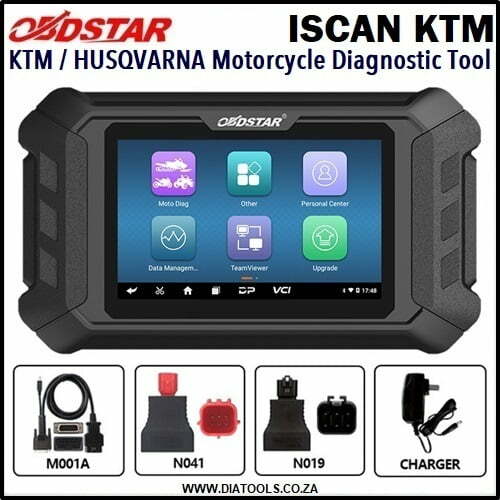

Package List:

• Main Unit (Tablet)
• M001A Main Cable.
• N019 KTM Adapter.
• N041 EURO V Adapter.
• 12V2A Charger.
• Quick Start Guide.
