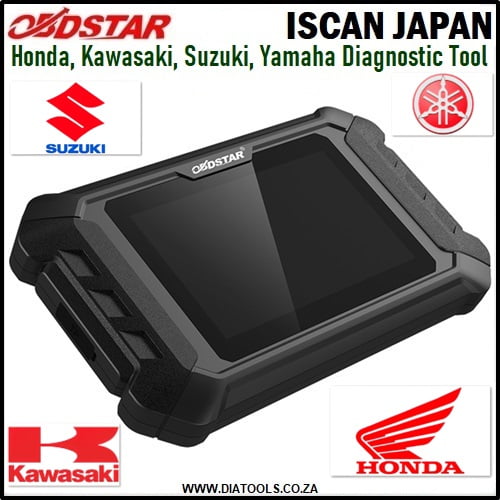

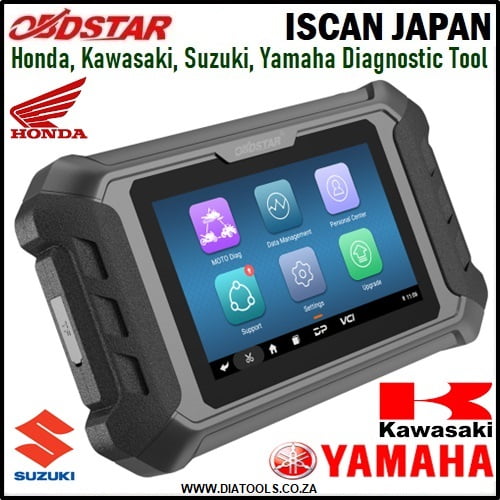

OBDStar ISCAN Japan Motorcycle Diagnostic Tool

OBDStar ISCAN Japan Motorcycle Diagnostic Tool For Honda, Kawasaki, Suzuki, Yamaha

The OBDStar ISCAN Japan Motorcycle Diagnostic Tool is a portable tablet which has super performance and industrial appearance design specialized for Honda, Kawasaki, Suzuki, Yamaha. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience. Support: Honda, Kawasaki, Suzuki, Yamaha diagnosis and key programming.

ALL OBDSTAR PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Obdstar/

OBDStar ISCAN Japan Functions:

1. New android 5.1.1 operation system:
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation:
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc:
4. Menu arbitrary selection is more convenient and quicker:
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults:
6. Wi-Fi connection to the internet, one-click software upgrade Via Official Website: Http://Www.Obdstar.Com/
7. One-click remote function, OBDSTAR technical staff remote assistance:

OBDStar ISCAN Japan Advanced function:

1. The first fault guidance, help data, technical bulletin, diagnostic socket, etc. help you diagnose accurately and efficiently:
2. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults:
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

Motorcycle/snowmobile/ATV/UTV support series:

• Honda, Kawasaki, Suzuki, Yamaha.

Motorcycle key programming support series:

Note: May differ from makes and models.

• Honda, Kawasaki, Suzuki, Yamaha.

OBDStar ISCAN Japan Function Display:

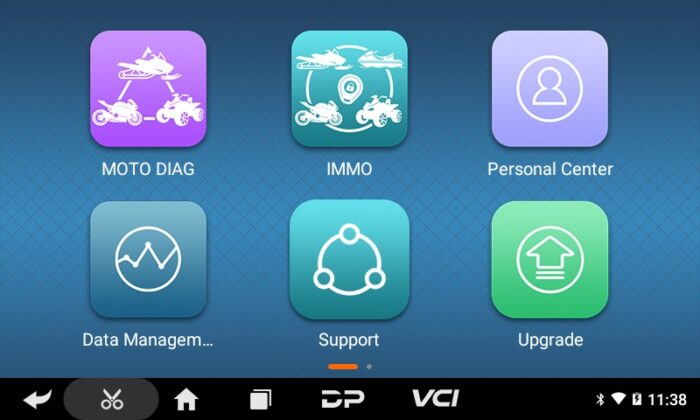

1)Main Page/ Brand Supported:

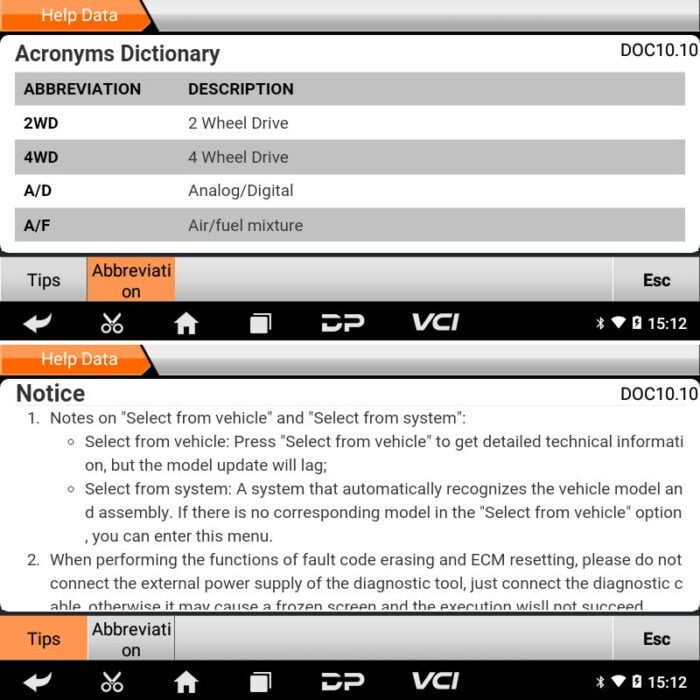

2) Help Data/Technical Bulletin:

3) Supported Systems List:

Honda Manual Selection:

1. ENG.
2. ABS/VSA.
3. Bosch ABS.
4. EPS.
5. Airbags.

Kawasaki Manual Selection:

1. ENG
2. ABS.
3. Smart.
4. KECS.
5. Meter Unit.

Suzuki Manual Selection:

1. ENG.
2. Electric-Motorcycle.
3. ENG and Transmission.
4. Transmission.
5. ABS.

Yamaha Manual Selection:

1. ENG
2. ENG (Secondary)
3. ABS
4. Transmission Control Unit.
5. Meter Unit.

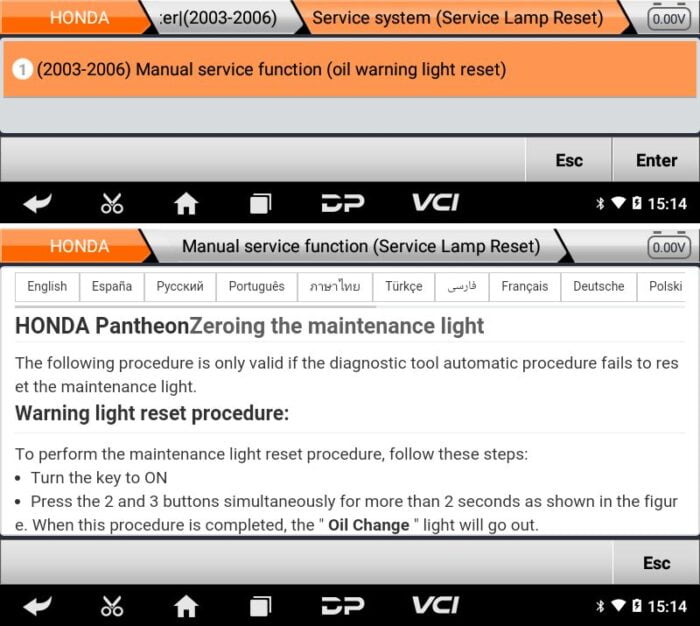

4) Manual Service Function:

5) Special Function-Honda:

• Shift to on-board rewrite mode.
• Battery Serial Number Display.
• Battery Fan Drive.
• Angle Sensor Calibration.
• Remaining Battery Level.
• Data Clear (Number of Times of Charge)
• Dynamic Bench Test.
• Clutch Initialize learning.
• Linear Solenoid 1.
• Linear Solenoid 2.
• Shift Monitor.
• Erase Sensor Learning value.
• Perform Sensor Learning.
• RE and RC Learning.

6) Special Function/Advanced Function-Kawasaki:

• Unit Registration- Steering lock unit.
• Unit Registration- FI ECU.
• FOB Registration.
• Tire Air Pressure Sensor ID Registration- Front Wheel.
• Tire Air Pressure Sensor ID Registration- Rear Wheel.
• Immobilizer key registration.
• ABS actuator Activation (Front Wheel)
• ABS actuator Activation (Rear Wheel)
• ABS actuator Activation (front and rear wheel)
• Clock Setting.
• Maintenance Indicator display Setting (Indicator Function)
• Maintenance Indicator display (Change Setting Value)
• VIN Writing.
• Shipment function on (the light goes on and off again)
• Shipment function off (the light goes off)

7) Special Function/Auto Scan-Yamaha:

• CO Volume adjustment.
• Writing Frame Number.

Auto Scan:

• All protocol Scan.
• Standard protocol (CAN/KWP)
• Private Protocol 1.
• Private Protocol 2.
• Private Protocol 3.

8) Special Function-Suzuki:

• ISC aperture learned value reset.
• ISC rpm control.
• PPS learned value reset.

OBDStar ISCAN Japan Specifications:

• Operation system: Android 5.1.1.
• CPU: RK3128 quad-core ARM cortex A7.
• Battery: 2600mA, rechargeable polymer lithium battery.
• Extension memory card: 32G micro-SD (TF) card supported.
• LCD: 5.0 inch.
• LCD resolution: 800*480.
• Touch screen: Capacitive touch screen.
• Wifi: Supported.
• Working temperature: -20℃~55℃ (14℉~131℉)
• Storage temperature: -20℃~70℃ (-4℉~158℉)

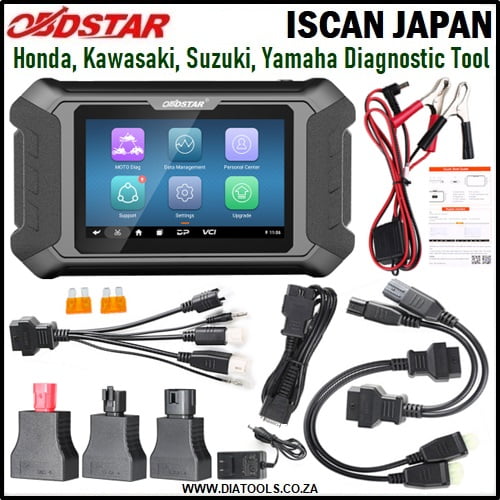

Package List:

• Main Unit (Tablet)
• 12V2A Charger.
• M001A Main Cable.
• M002 Battery Power Cable.
• M005 Kawasaki-4+6 Cable.
• M006 Kawasaki-4+4 Cable.
• M018A Yamaha-3+4+3 Cable.
• NO12A Suzuki-6 Adapter.
• NO15A Honda-4 Adapter.
• NO14 OBD-6 Adapter.
• Quick Start Guide.
