OBDEMoto MST-500Pro Motorcycle Diagnostic Scanner

Original price was: R9,999.00.Current price is: R8,499.00.

SKU: OBDEMoto MST-500Pro Category: Tag:

OBDEMoto MST-500Pro Motorcycle Diagnostic Scanner

The OBDEMoto MST-500Pro Motorcycle Diagnostic Scanner is the latest released version. As a new version diagnostic scanner, except for the new fashion design, the functions are also enhanced for a much better performance. It will always be the most trusted repair tool for technicians, engineers and repair workers, save their energy and time.


OBDEMOTO MST-500Pro Motorcycle Diagnostic Scanner

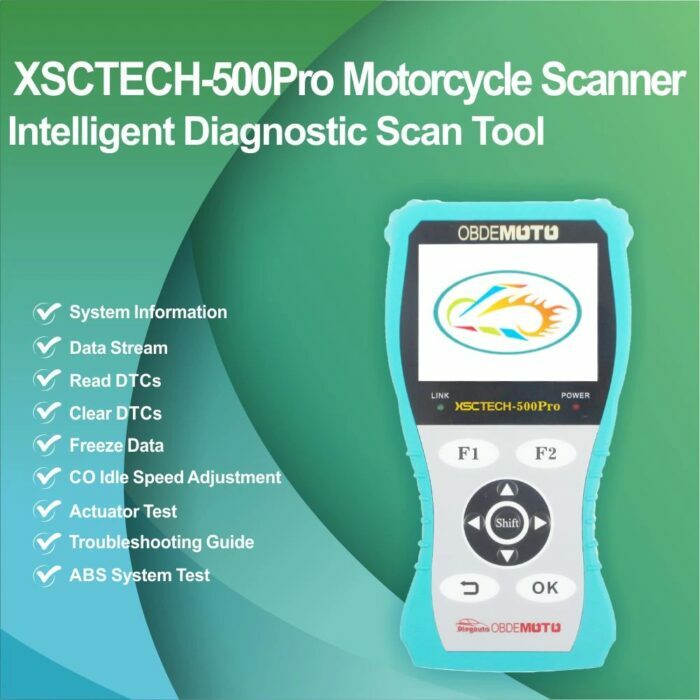

OBDEMoto MST-500Pro Functions:

  1. Read System Information.
  2. Read DTCs.
  3. Clear DTCs.
  4. Read Data Stream.
  5. Freeze Data.
  6. CO Idle Speed Adjustment (only for part of models)
  7. Actuator Test.
  8. Troubleshooting Guide.
  9. ABS System Test.
  10. ECU Programming. (Vespa, Piaggo, Honda)
  11. Special Functions.
  12. Upgrade online: Online SD card upgrade from official website:


Motorcycle Coverage:

Honda, Sym, Kymco, Kawasaki, Yamaha, Vespa, Piaggion, Suzuki, AEON, Benelli, PGO, Hartford.

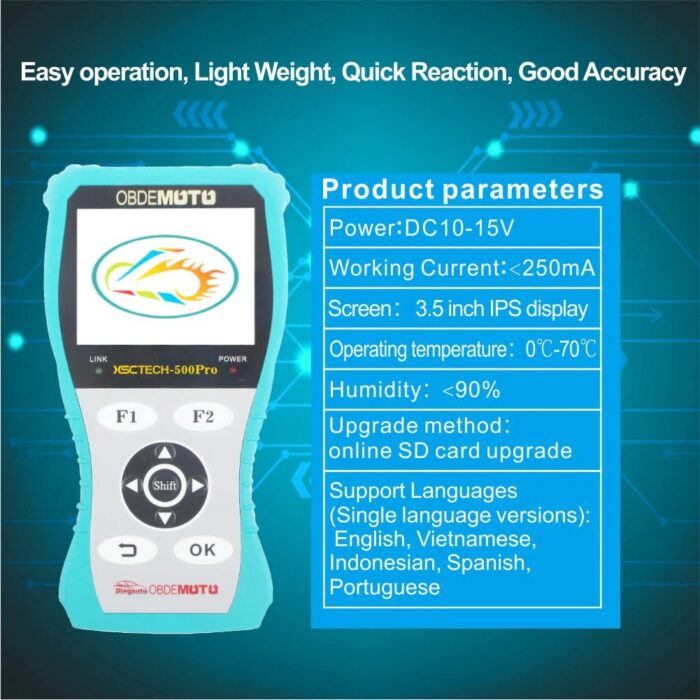

OBDEMoto MST-500Pro Specifications:

  • Power supply: DC 10-15V.
  • Working Current: <200mA.
  • Screen: 3.5-inch IPS display.
  • Operating temperature: 0-70℃.
  • Storage Temperature: -10℃-55℃.
  • Humidity: <90%.

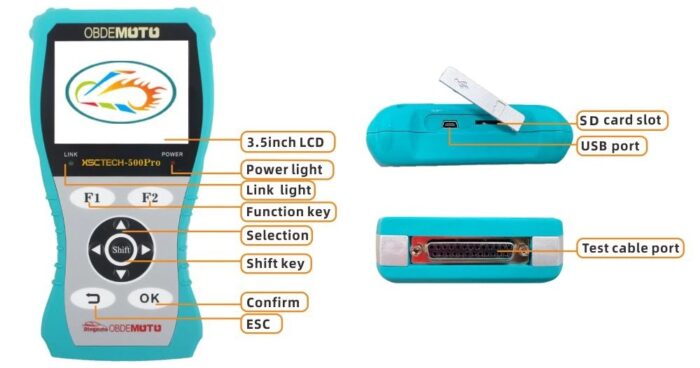

  • Ports: Diagnostic port, COM port, USB port, Power port. (PC Version works only)
  • Upgrade port: USB Port (PC Version works only)
  • Communication port: COM port (PC Version works only)
  • Support Language: English. Chinese simplified, Chinese traditional, Vietnamese, Indonesian, Spanish. machine only supports a single language version.

Upgrade Instructions:

Log in to the company’s official website to view detailed upgrade instructions.

The specific operations are as follows:

  1. Log in to the company’s official website to register first, and then download the corresponding upgrade file in the software upgrade column through the serial number of the detector, and save it to the local computer.
  2. Unzip the upgrade package to a new folder; Connect the computer and the tester through the USB upgrade cable, and the following interface appears according to the operation prompt: the tester enters the U disk mode.
  3. Operate my computer, find the U disk, click to enter.
  4. Delete all the contents in the U disk;
  5. Copy all the contents of the decompressed folder to the U disk;
  6. Operate the detector to exit the U disk mode and unplug the USB cable to power off the detector.
  7. Reconnect the USB cable and connect the detector (mainly to supply power to the diagnostic tool), the following interface will appear after the host starts:
  8. Press( OK) to upgrade.

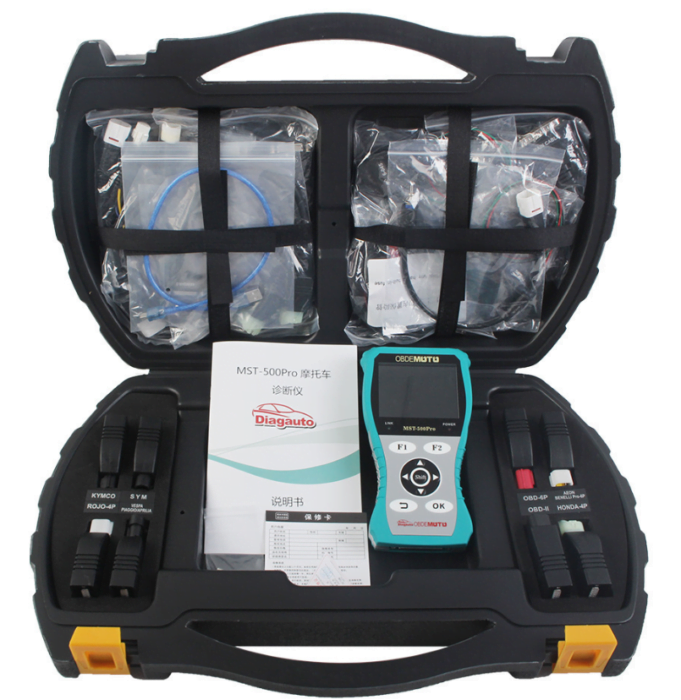

OBDEMOTO MST-500Pro Motorcycle Diagnostic Scanner Package List


Weight3 kg
Dimensions44 × 34 × 13 cm
