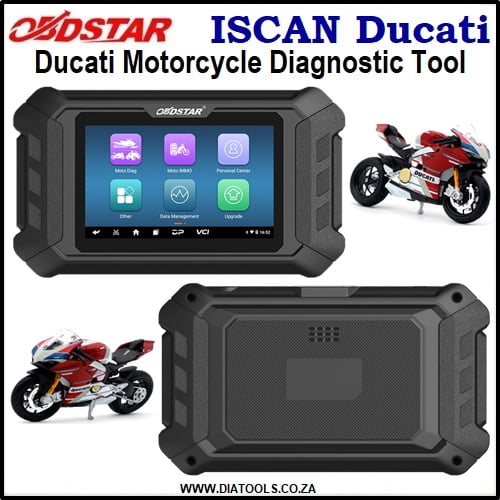

OBDStar ISCAN Ducati Motorcycle Diagnostic Tool

OBDStar ISCAN Ducati Motorcycle Diagnostic Tool

The OBDStar ISCAN DUCATI is a portable tablet which has super performance and industrial appearance design specialized for DUCATI. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.

ALL OBDSTAR PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Obdstar/

Support Ducati diagnosis and key programming.

Functions:

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc.
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade Via Official Website: http://www.obdstar.com/
7. One-click remote function, OBDSTAR technical staff remote assistance.

Advanced function:

1. The first fault guidance, help data, technical bulletin, diagnostic socket, etc. help you diagnose accurately and efficiently;
2. Diversified data stream display modes as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

Motorcycle/snowmobile/ATV/UTV support series: DUCATI.

Motorcycle key programming support series: DUCATI.

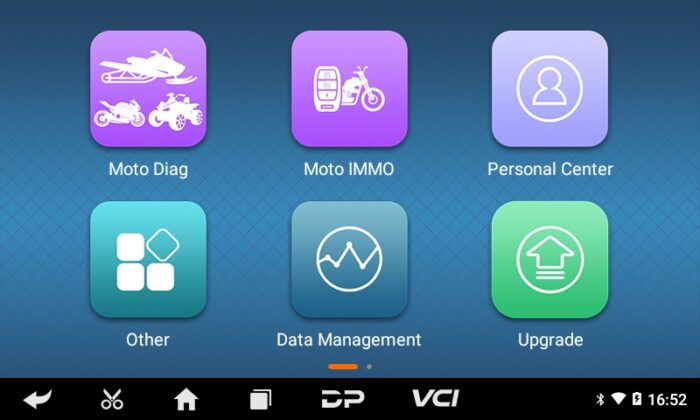

ISCAN Ducati Function Display:

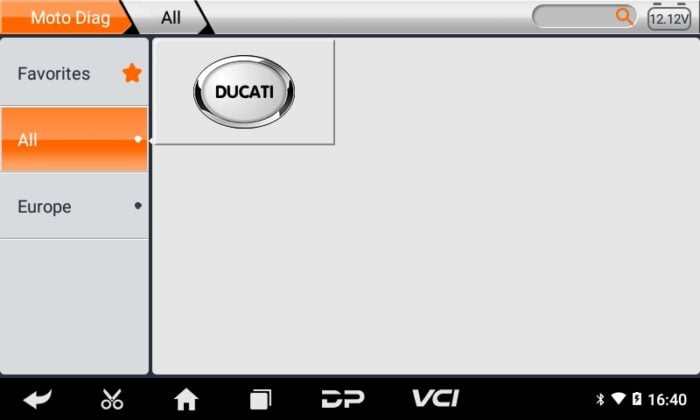

1) Main Page/ Brand Supported.

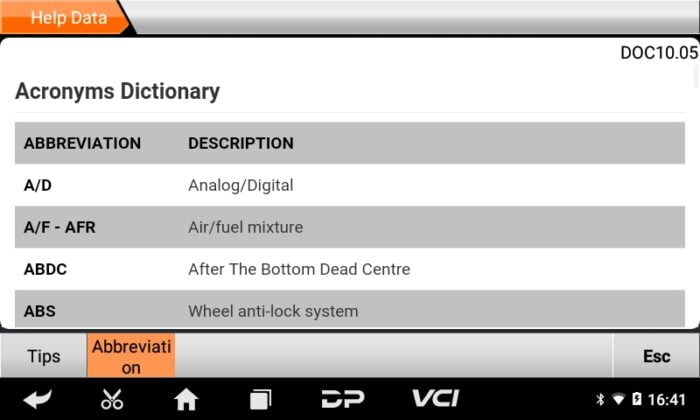

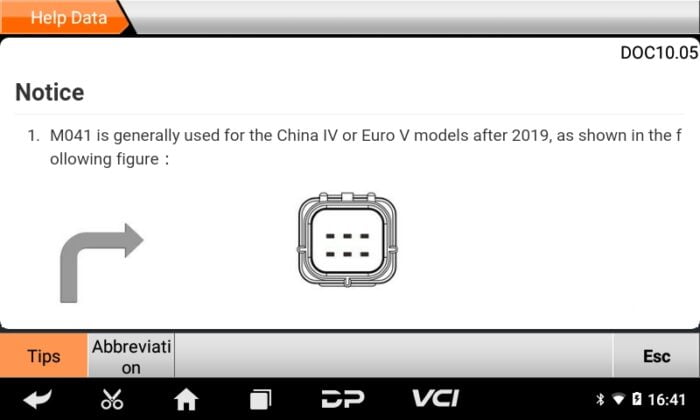

2) Help Data/Technical Bulletin:

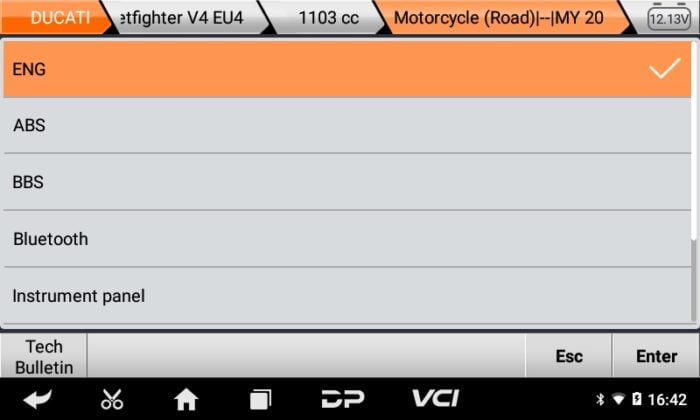

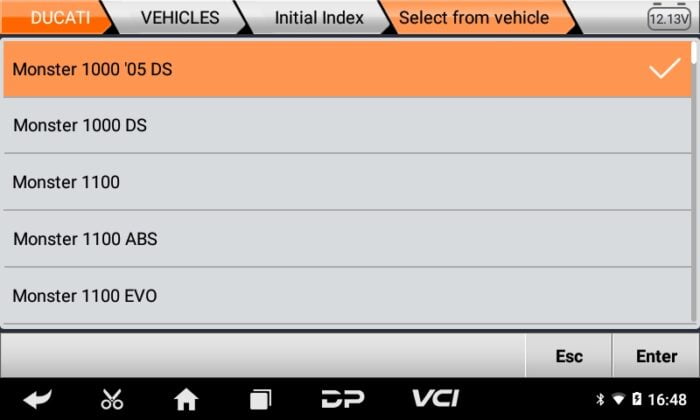

3) Supported System List:

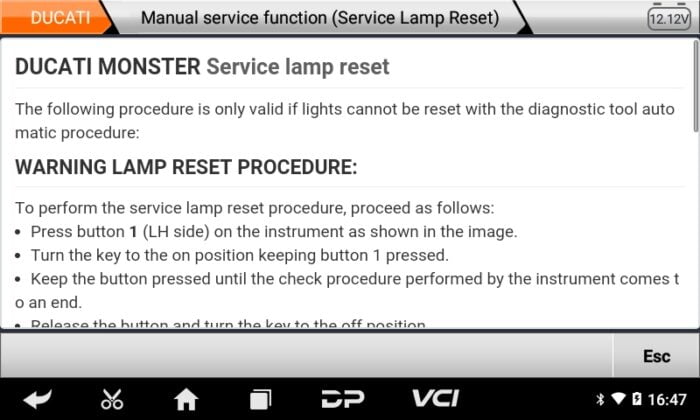

4) Manual Service Function:

OBDStar ISCAN Ducati Specifications:

• Operation system: Android 5.1.1
• CPU: RK3128 quad-core ARM cortex A7
• Battery: 2600mA, rechargeable polymer lithium battery
• Extension memory card: 32G micro-SD (TF) card supported
• Storage capacity: 16GB
• LCD: 5.0 inch
• LCD resolution: 800*480
• Touch screen: Capacitive touch screen
• WIFI: Supported
• Working temperature: -20℃~55℃ (14℉~131℉)
• Storage temperature: -20℃~70℃ (-4℉~158℉)

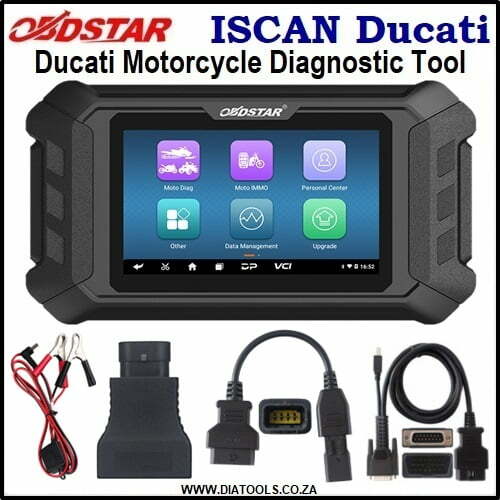

Package List:

• Main Unit (Tablet).
• M001A Main Cable.
• M002 Battery Cable.
• M037 Ducati Cable.
• N004 Ducati Adapter.
• 12V2A Charger.
• Quick Start Guide.
• Carton Box.
