XTool X100 PAD3 Elite Key Programmer with KC100 & EEPROM


SKU: XTOOL X100 PAD3 Categories: , Tags: ,

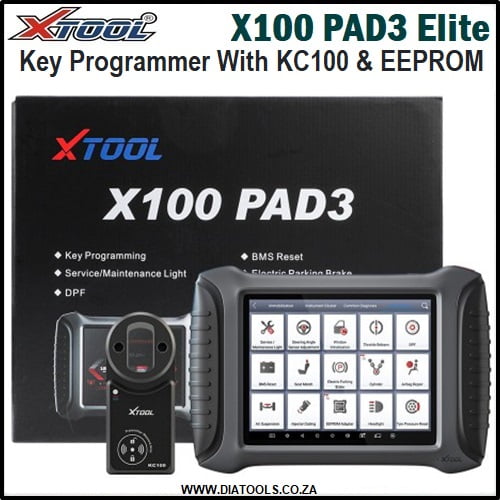

XTool X100 PAD3 Elite Auto Key Programmer with KC100 and EEPROM

The Xtool X100 PAD3 Elite) is a professional tablet key programmer which not only provides customers with key programming, but also supplies advanced special functions. Equipped with KC100 key programmer, X100 PAD3 can perform: Key programming, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis, etc.

All XTOOL Products: Https://Www.Diatools.Co.Za/Brand/Xtool/

XTOOL X100 PAD3 Elite Auto Key Programmer with KC100 and EEPROM

Language: English, Spanish, French, Turkish, Indonesian, Thai, Portuguese.

Update: X100 PAD3 updates directly via the Internet using WiFi or wired connection. To access the update application, open the X100PAD3 application and click UPDATE.

Xtool X100 PAD3 Features:

  1. New keys programming.
  2. PIN Code reading with EEPROM.
  3. Hexadcimal editor(Win Hex).
  4. Reads keys from immobilizer’s memory.
  5. New immobilizer programming.
  6. Vehicle Identification Number programming.
  7. Reset ECM & reset immobilizer.
  8. New remote controller programming.
  9. With full and strong database for the most important vehicle makes.

XTool X100 PAD3 Functions:

  • Key programming.
  • Oil Reset/Engine oil light reset.
  • Odometer Adjustment.
  • Tire Pressure Warning Light Reset (Manual Operation)
  • Timing belt light reset (Manual Operation)
  • EPB Electrical Parking Brake Adaptation.
  • TPS Throttle Body Adaptation.
  • Steering Angle Calibration.
  • Battery Reset.
  • PIN Code Reading.
  • Hexadcimal editor(Win Hex)
  • OBDII Diagnosis.
  • INJ Code.
  • Support the latest vehicles with CAN BUS and UDS protocol

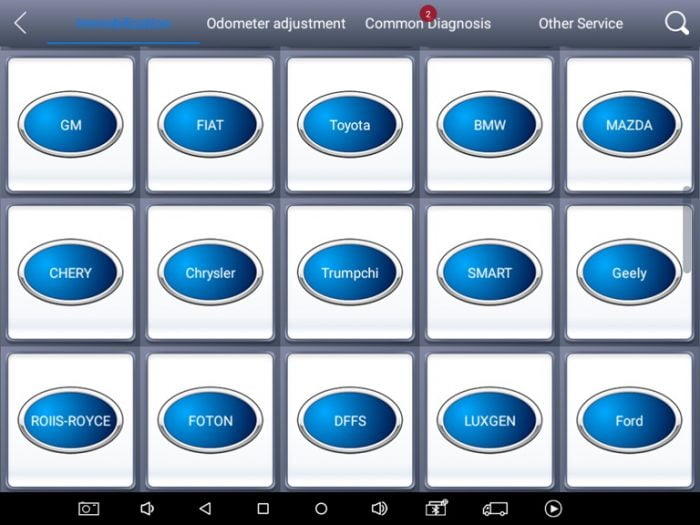

1. Immobilization:

  • Asia: Toyota, Lexus, Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, Proton, etc.
  • Europe: Audi, VW, Skoda, Seat, Porsche, Opel, Citroen, Peugeot, Jaguar, Land Rover, Lincoln, Renault, etc.
  • America: GM, Cadillac, Buick, Chrysler, Ford, etc.
  • China: Great Wall, Chery, Brilliance-auto, Geely, LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, BYD, JAC, etc.

VAG 4th 5th IMMO: yes, when working together with KC100 adapter that comes in the package.

Toyota Smart Key All Keys Lost: Yes, when working together with the KS-1 emulator (need to buy additionally)

2. Mileage adjustment:

VW, Audi, Seat, Skoda, Buick, Cadillac, Chevrolet, Chrysler, Ford, Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche And More…

3. Common Diagnosis:

Yes, cover models from Europe, Asia, America, more at:

XTOOL X100 PAD3 Elite Auto Key Programmer with KC100 and EEPROM Special Functions

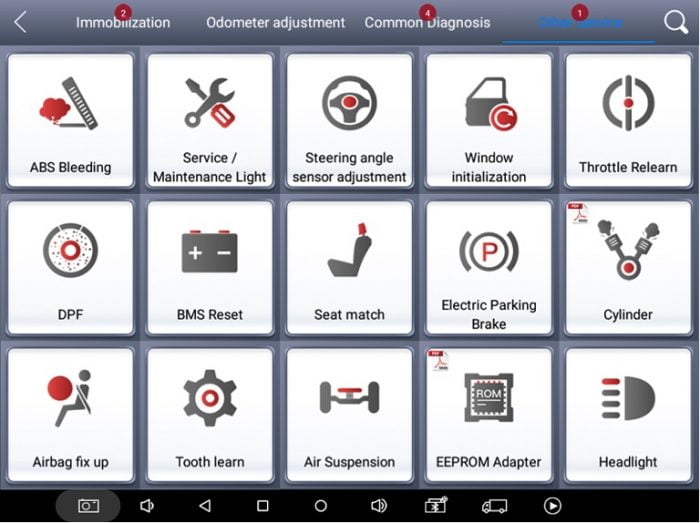

Special functions:

  1. Service/Maintenance Light.
  2. Steering angle sensor adjustment.
  3. Window Initialization.
  4. Throttle Relearn.
  5. DPF.
  6. BMS Reset.
  7. Seat Match.
  8. Electric Parking Brake.
  9. Cylinder.
  10. Airbag Repair.
  11. Air Suspension.
  12. Injector Coding.
  13. EEPROM Adapter.
  14. Headlight.
  15. Type pressure reset.
  16. Gearbox Match.

X100 PAD3 Technical Parameters:

  • Operating system: Android.
  • Processor: quad-core processor 1.8GHz.
  • Memory: 2G RAM, 64G ROM.
  • Display/touch screen: 1024•768 resolution, 8-inch LED Compatible touch screen.
  • Camera: Rear camera, 8 million pixels, with flash autofocus.
  • Sensor: Gravity sensor.
  • Audio input / output: microphone, 4 band 3.5 millimeter stereo.
  • Interface: USB3.0, DC charging port, MINI HDMI, DB15 interface.
  • Battery: 10000mAh 3.7V lithium polymer battery.
  • Input voltage: +9~+36VDC, compatible with 12V and 24V voltage system.
  • Working temperature: -20 to 50 C (-4 to 126 C)
  • Relative humidity: <90%.
  • Appearance size: 275•183•33.9 (mm).

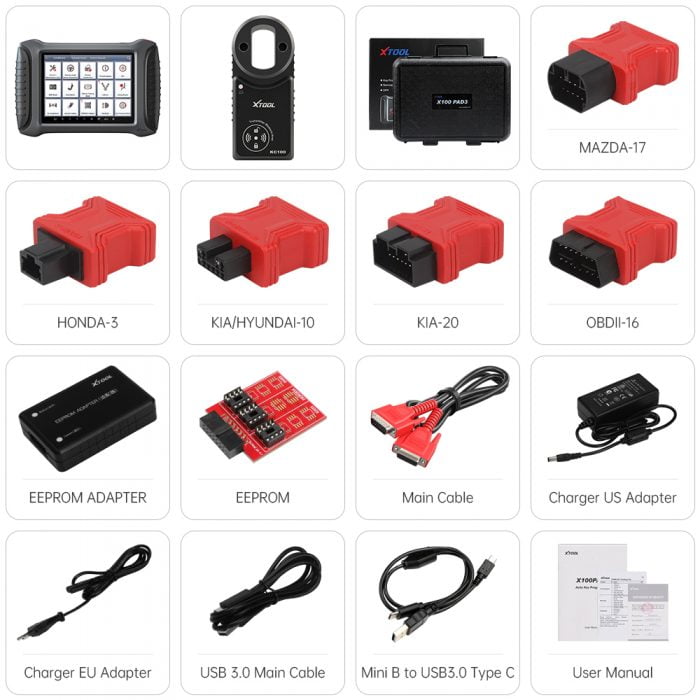

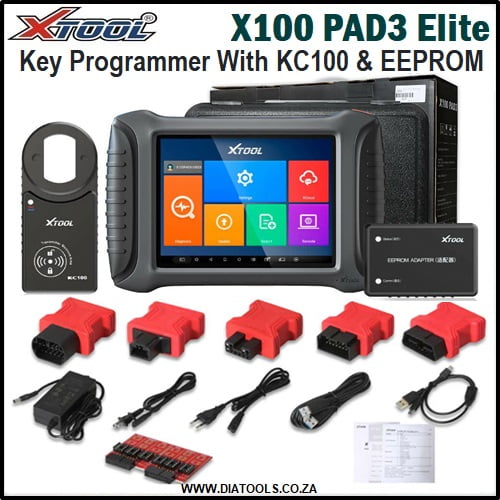

  • Main Unit.
  • Mini B to USB 3.0 Type C Cable.
  • X100 PAD3 Cable.
  • KC100.
  • EEPROM 2 Adapter.
  • Tablet Charger.
  • Charger US Adapter.
  • Charger EU Adapter.

Test Connectors:

  • OBDII-16.
  • HONDA-3.
  • MAZADA-17R.
  • KIA20.
  • DB15 Main Cable.
  • USB3.0 Main Cable (1m)


  • Certificate of quality.
  • Packing List.
  • User Manual.

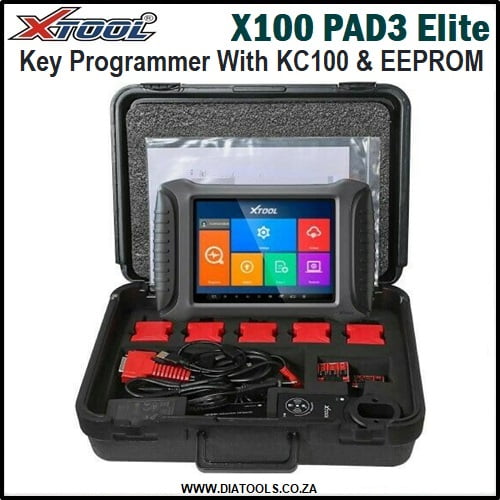

  • Tool Case.
  • Carton.

XTOOL X100 PAD3 Elite Auto Key Programmer with KC100 and EEPROM Package



Weight 4 kg
Dimensions 40 × 32 × 13 cm
