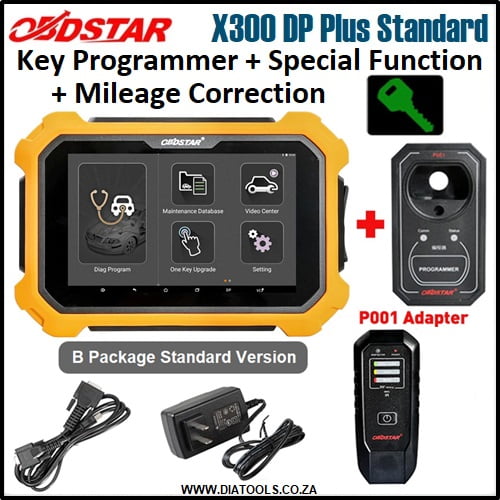

OBDStar X300 DP Plus Standard Version Key Programmer with Special Function and Mileage Correction
The OBDSTAR X300 DP Plus Standard Version(B Configuration) Key Programmer With Special Functions and Mileage Correction Tool. B Package: Immobilizer + Special function (EEPROM + Key Renewing) +Mileage correction + Adapter (P001 programmer + C001 circuit board + C002 circuit board + W001 data cable + W002 data cable + W003 data cable + Toyota smart key Emulator) + others (Ignition coil + Remote tester)
Note: This is a Key Programmer, Immobilizer With Special Functions and Mileage Correction.
ALL OBDSTAR PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Obdstar/
The OBDStar X300 DP Plus Standard Version Key Programmer with Special Functions namely EEPROM + Key Renewing and Mileage Correction is a new Android-based vehicle key programmer with special functions (EEPROM + Key Renewing) and mileage correction (Odometer Adjustment) device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.
Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.
OBDStar X300 DP Plus Functions:
Immobilizer + Special function(EEPROM + Key Renewing) + Mileage correction + Adapter(P001 programmer + C001 circuit board + C002 circuit board + W001 data cable + W002 data cable + W003 data cable + Toyota smart key Emulator) + others(Ignition coil + Remote tester)
Language: English.
Upgrade: One-year free online upgrade Via Official Website: http://www.obdstar.com/

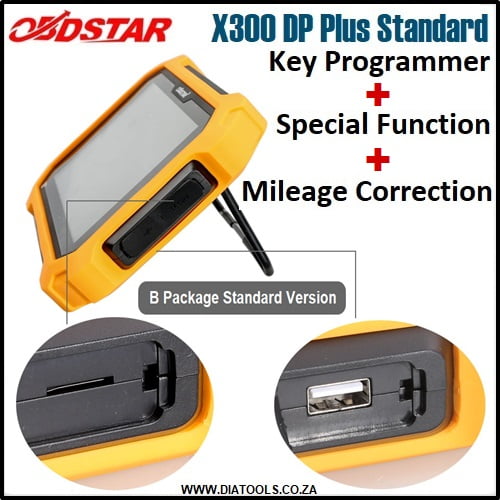

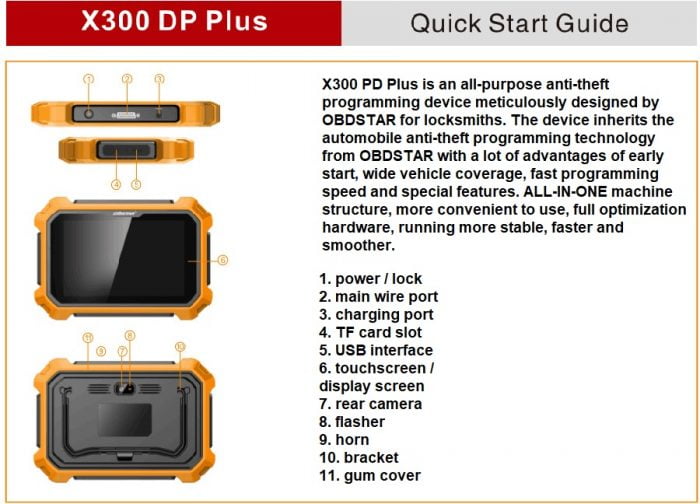

Hardware Advantages:
- Built-in VCI box.
- 8-inch touchscreen.
- Charge directly via OBD interface.
- Practical and high-end gift box.
- Industrial design with silicone case.
- Back bracket design: prop on the steering wheel or stand on the table.
- With 4 Toyota simulation keys (the fifth is coming soon)
- P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter.
- Add the clip of reading SOP 8PIN EEPROM.

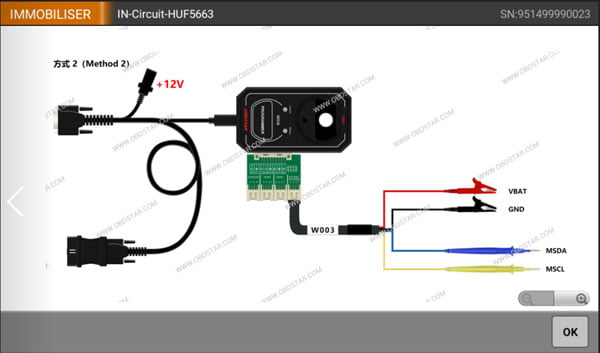

- C001/C002 circuit board to read and write chip data with welding.
- IMMO induction coil to detect the key induction coil failure of the vehicle.
- Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)
OBDStar X300 DP Plus Standard Version Software Advantages:
Immobilizer: (Including Toyota Smart Key)

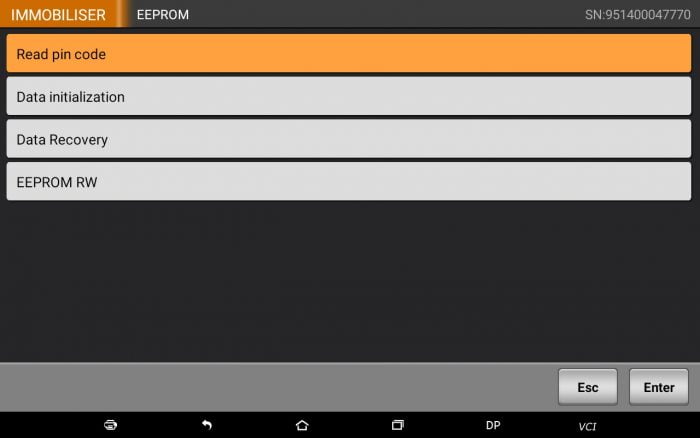

- EEPROM.
- Renew Key.
- Key programming.
- Remote programming.
IMMO Support Car List (No all models can work, please ask seller before order)
Audi, Baic, Bentley, Benz, Besturn, BMW, Borgwarg, Brilliance, BYD, Chery, Chrysler, Fiat, Ford, Lincoln, Foton, Geely, GM, Honda, Hyundai, Isuzu, Jaguar, Kia, Lamborghini, Land Rover, Maserati, Mazda, Mitsubishi, Nissan, Opel, Citroen, Porsche, Renault, Skoda, Smart, Ssangyong, Subaru, Suzuki, Toyota, Volvo, VW

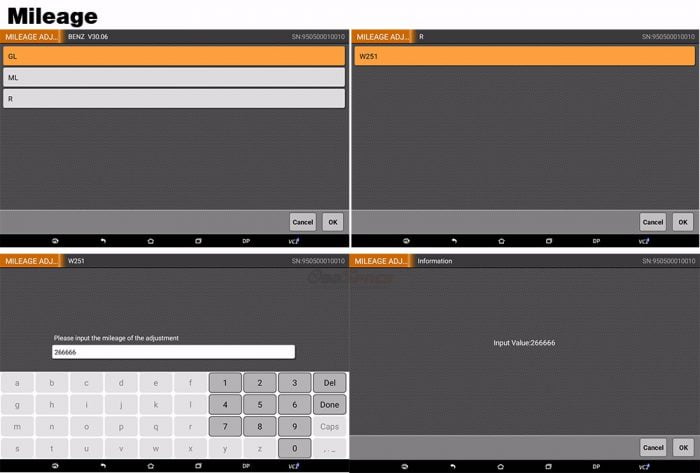

OBDStar X300 DP Plus Standard Version Cluster Calibrate Car List:
Wide vehicle coverage
Alfa, Audi, Bentley, Benz, Besturn, Bmw, Chrysler, Citroen, Ferrari, Fiat, Ford, Geely, Gm, Greatwall, Hyundai, Infinity, Jagaur, Kia, Landrover, Mazda, Mg, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Proton, Renault, Roewe/Mg, Seat, Skoda, Smart, Ssangyong, Subaru, Suzuki, Toyota, Volvo, Vw.

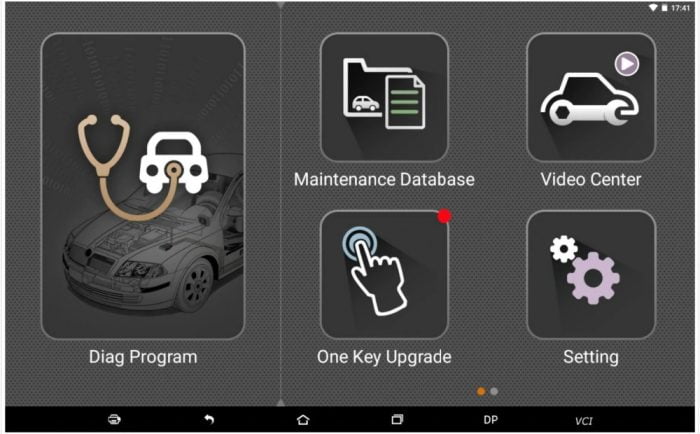

Add “Help” Functions
- including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.
- Car list and upgrade announcement, all details are available on the device.
- Customers can look up the features or uniquely support functions on the device.
- Help notes: built-in help notes for each model or function.
- Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient.
- Maintenance database: Equipped with a powerful database.
- Video Center: A large number of videos helps users to operate the device easily.
- One key update: Built-in WIFI mode can perform app download and diagnostic function by key update Via Official Website: Http://En.Obdstar.Com/
- System configuration: Establish VCI training, language, unit, data record, user information, etc.
- Remote assistance: get remote assistance thanks to this function.
- Report Center: Registers record of maintenance data and creates reports during operation.
- USB Inspection Camera (Optional): Flexible and long pipe with HD camera, can reach inside car pipe or narrow space for general inspection.

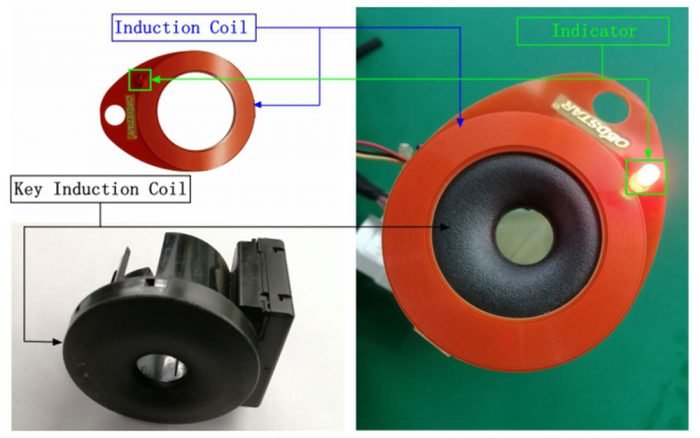

How to use OBDStar X300 DP Plus Induction Coil?
- Functional Overview: Induction Coil is used to detect the key induction coil failure of the vehicle.
- Application Method: Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good; the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.
Technical Parameters:
- Operation system: Android 5.1.1.
- CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz.
- Battery: 3700mA, rechargeable polymer lithium battery.
- Extension memory card: 32G Micro SD (TF) card supported.
- Memory capacity: 1GB.
- Storage capacity: 32GB.
- LCD: 8.0 inch.
- LCD resolution: 1280*800.
- Touch screen: Capacitive touch screen.
- Camera: 5 mega rear view camera.
- Wi-Fi: supported.
- Working temperature: -10℃ ~ 55℃(14℉ ~ 131℉ )
- Storage temperature: -20℃ ~ 70℃(-4℉ ~ 158℉ )
- Weight: about 1.0 Kg.

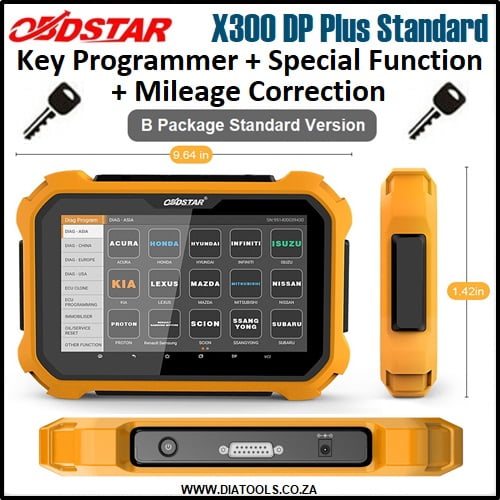

- Dimension: 254mm*174*mm*35mm.

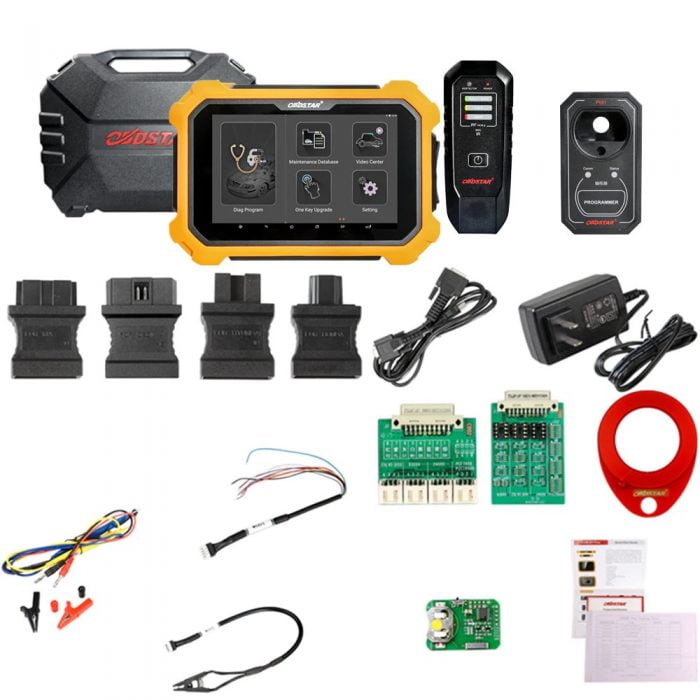

OBDStar X300 DP Plus Standard Version Package List:
- DP Key Master Unit.
- Main Cable.
- 12V2A DC Charger.
- KIA-20 Connector.
- OBD II-16 Connector.
- HAIMA-17 Connector.
- HONDA-3 Connector.
- HYUNDAI / KIA-10 Connector.
- IMMO.
- Multi- induction coil Functional Jersey.
- P001 Programming Unit.
- Circuit Board C001 / C002.
- W001.
- W002.
- W003.
- RT100.
- For TOYOTA Simulation Smart Keys.
- Configuration List / Certificate / Folded Quick Start Guide.
