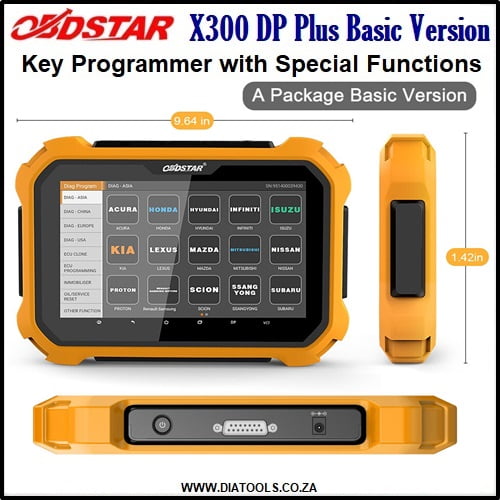

OBDSTAR X300 DP Plus Basic Version Key Programmer

R24,499.00

SKU: OBDSTAR X300 DP Plus Basic Version Category: Tags: ,

OBDSTAR X300 DP Plus Basic Version Key Programmer with Special Function

OBDSTAR X300 DP PLUS Basic Version(A Configuration) Key Programmer with Immobilizer + Special function (EEPROM + Key Renewing) Adapter (P001 programmer + C001circuit board + C002 circuit board + W001 cable + W002 data cable + W003 data cable + Toyota smart key Emulator) + others (Ignition coil + Remote tester)

Note: The Basic Version (A Configuration) is only a key programmer with Immobilizer.

ALL OBDSTAR PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Obdstar/

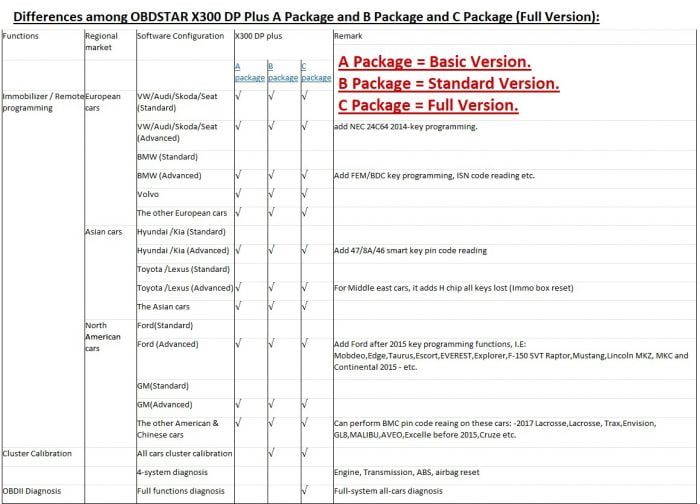

OBDSTAR X300 DP (X300 PAD2) PLUS A Configuration Basic Package.

The OBDSTAR is a new Android-based vehicle Key Programmer With Special Functions Namely (EEPROM and Key Renewing) device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals.

Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

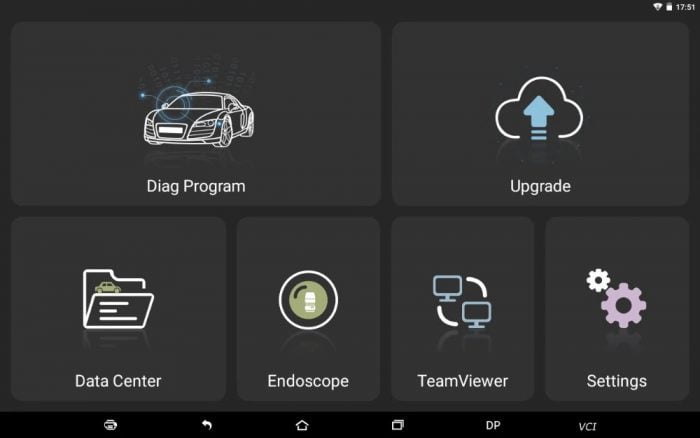

OBDSTAR X300 DP Plus Basic Version Key Programmer Display

X300 DP Plus A Package:

Immobilizer + Special function (EEPROM + Key Renewing) Adapter (P001 programmer + C001 circuit board + C002 circuit board + W001 cable + W002 data cable + W003 data cable + Toyota smart key Emulator) + others (Ignition coil + Remote tester)

Language: English.

Upgrade: One-year free online upgrade Via Official Website: Http://En.Obdstar.Com/

OBDSTAR X300 PAD2 X300 DP Plus A Package is locksmith version, mainly support immo key programming function:

IMMO:

  1. EEPROM.
  2. Renew Key.
  3. Key programming.
  4. Remote programming.

IMMO Support Car List (No all models can work, please ask seller before order)

Audi, Baic, Bentley, Benz, Besturn, BMW, Borgwarg, Brilliance, BYD, Chery, Chrysler, Fiat, Ford, Lincoln, Foton, Geely, GM, Honda, Hyundai, Isuzu, Jaguar, Kia, Lamborghini, Land Rover, Maserati, Mazda, Mitsubishi, Nissan, Opel, Citroen, Porsche, Renault, Skoda, Smart, Ssangyong, Subaru, Suzuki, Toyota, Volvo, VW

Hardware Advantages:

  1. Built-in VCI box.
  2. 8-inch touchscreen.
  3. Charge directly via OBD interface.
  4. Practical and high-end gift box.
  5. Industrial design with silicone case.
  6. Back bracket design: prop on the steering wheel or stand on the table.
  7. With 4 Toyota simulation keys (the fifth is coming soon)
  8. P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter.
  9. Add the clip of reading SOP 8PIN EEPROM.
  10. C001/C002 circuit board to read and write chip data with welding.
  11. IMMO induction coil to detect the key induction coil failure of the vehicle.
  12. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

3. Add “Help” Functions:

  1. Including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.
  2. Car list and upgrade announcement, all details are available on the device.
  3. Customers can look up the features or uniquely support functions on the device.
  4. Help notes: built-in help notes for each model or function.

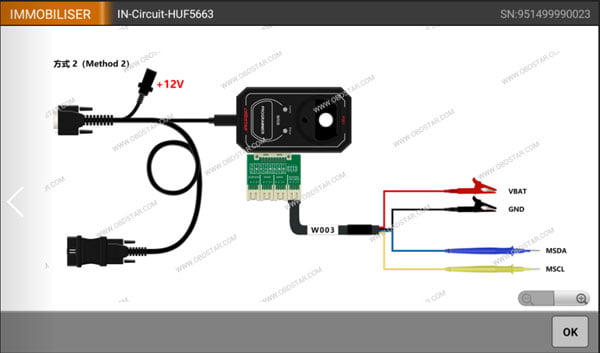

  5. Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient.

  1. Maintenance database: equipped with a powerful database.
  2. Video Center: A large number of videos helps users to operate the device easily.
  3. One key update: Built-in WIFI mode can perform app download and diagnostic function by key update Via Official Website: Http://En.Obdstar.Com/
  4. System configuration: Establish VCI training, language, unit, data record, user information, etc.
  5. Remote assistance: get remote assistance thanks to this function.
  6. Report Center: Registers record of maintenance data and creates reports during operation.
  7. USB Inspection Camera (optional): Flexible and long pipe with HD camera, it can reach the internal pipe of the car or a narrow space for a general inspection.

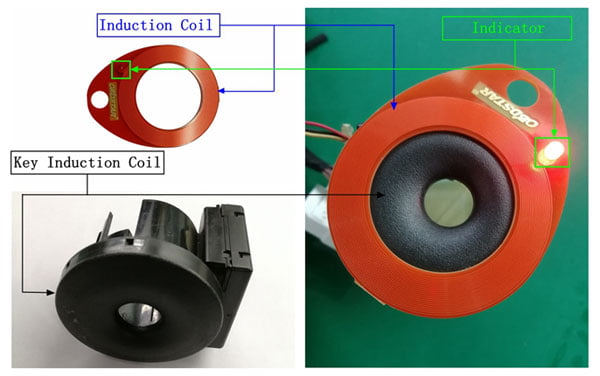

How to use OBDSTAR X300 DP Plus Induction Coil?

  1. Functional Overview: Induction Coil is used to detect the key induction coil failure of the vehicle.
  2. Application Method: Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good; the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.

User register:

Click to enter diagnostic software, select “user information” in “Settings”.

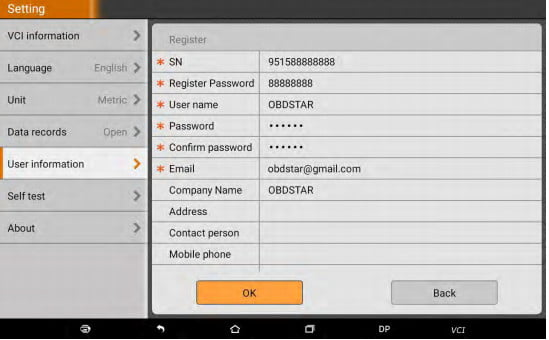

Menu, then enter the user registration window. As shown in the following photo:

Fill in the information in each field (articles with * must be filled in). After entering tap
“OK” if you have registered to become a member, click on “user information” to enter

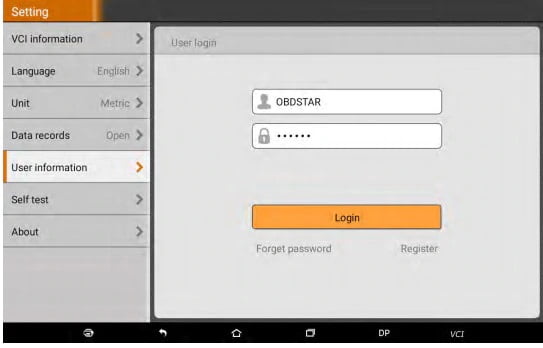

User Login Page, as shown in the following image:

OBDSTAR X300 DP in addition to Instructional Software Update:

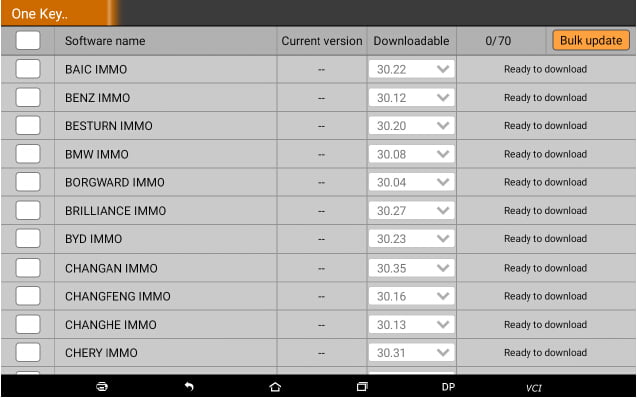

Tap “One key update” to enter a key update page, as shown in the following image:

OBDSTAR X300 DP Plus Basic Version Key Programmer Package List Updates

Tap “One key update” to start downloading, enter main interface after finish downloading. (Notes: Please make sure the internet connection is normal when updating. Also, due to many software, it may take several minutes, please wait patiently) if you need to cancel a software, please touch the corresponding checkbox as shown in the following picture:

OBDSTAR X300 DP Plus Basic Version Key Programmer Package List Updates 1

TECHNICAL PARAMETER:

  • Operation system: Android 5.1.1.
  • CPU: Exynos4418  Dual Core ARM Cortex A9 1.4GHz.
  • Battery: 3700mA, rechargeable polymer lithium battery.
  • Extension memory card: 32G Micro SD (TF) card supported.
  • Memory capacity: 1GB.
  • Storage capacity: 32GB.
  • LCD: 8.0 inch.
  • LCD resolution: 1280*800.
  • Touch screen: Capacitive touch screen.
  • Camera: 5 mega rear view camera.
  • Wi-Fi: supported.
  • Working temperature: -10℃  ~  55℃(14℉  ~  131℉ )
  • Storage temperature: -20℃  ~  70℃(-4℉  ~ 158℉ )
  • Weight: about 1.0 Kg.
  • Dimension: 254mm*174*mm*35mm.

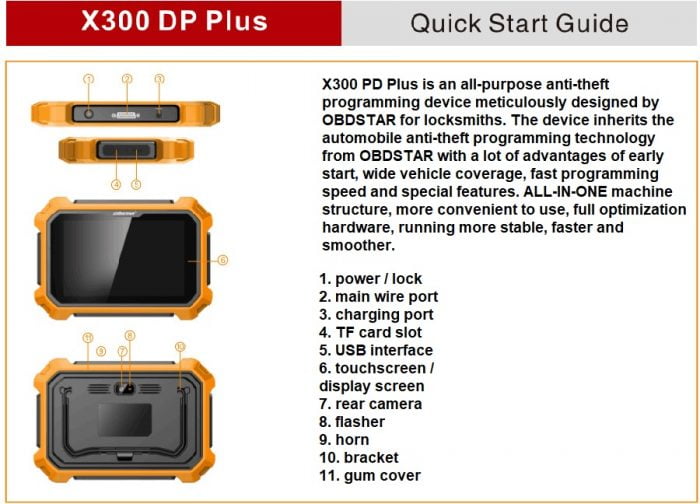

OBDSTAR X300 DP Plus Basic Version Key Programmer Quick Start Guide

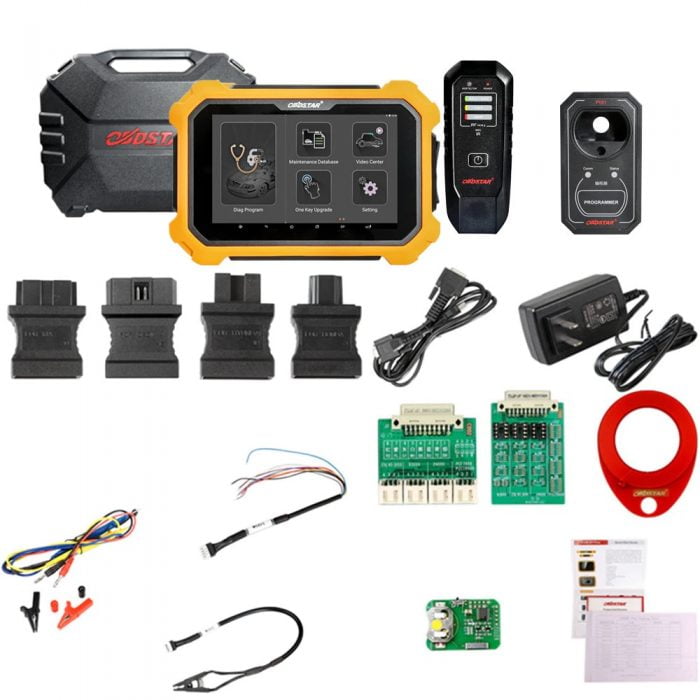

OBDSTAR X300 DP Plus X300 Package List:

  • DP Plus Key Master Unit.
  • Main Cable.
  • 12V 2A DC Charger.
  • For KIA-20.
  • OBD II-16 Connector.
  • HAIMA-17.
  • HONDA-3.
  • HYUNDAI / KIA-10.
  • IMMO.
  • Multi- coil Induction Functional Jersey.
  • P001 Programming Unit.
  • Circuit Board C001 / C002.
  • W001.
  • W002.
  • W003.
  • RT100.
  • For TOYOTA Simulation Smart Keys.
  • Configuration / Certificate List / Quick Start Guide Fold.

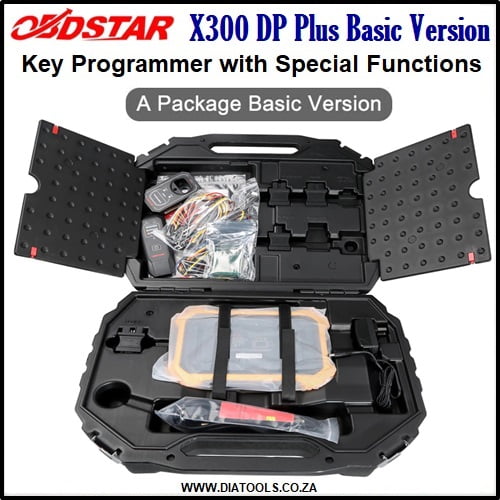

OBDSTAR X300 DP Plus Basic Version Key Programmer Package List

Brand

OBDSTAR

Weight 8 kg
Dimensions 52 × 40 × 18 cm
