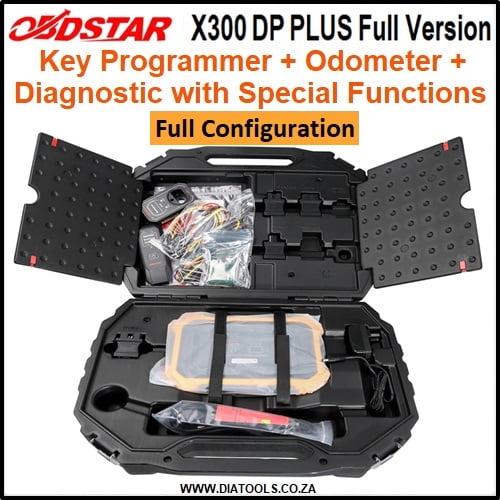

OBDStar X300 DP Plus Key Programmer Full Configuration

OBDStar X300 DP Plus Key Programmer Full Configuration Supports Immo + Mileage + OBD2 Diagnosis + Maintenance Match + Special Functions.

The OBDStar X300 DP Plus Key Programmer Full Configuration (Full Version) is a new Android-based vehicle trouble diagnosis device developed for Internet applications. It inherits the OBDSTAR advanced diagnostic technology and is characterized by a wide range of vehicles covering a powerful function and providing precise results.

Using a vehicle diagnostic OBD connector and variant mobile intelligent terminals, it performs vehicle fault diagnosis for a complete car model and a complete system vehicle.

In the meantime, taking advantage of the mobile Internet, this device integrates more applications and services, such as the maintenance database, the remote assistant, One Key Upgrade, etc.

ALL OBDSTAR PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Obdstar/

OBDStar X300 DP Plus Full Configuration Functions:

Immobilizer + Mileage correction + Diagnosis + Special function (Oil reset + ABS + Battery matching + ECU programming + EPB + Throttle programming + Airbag reset + TPMS + Steering angle rest + OBDII + DPF + Injector code + Suspension matching + Gear learning + CVT learning + EEPROM + Key renewing + ECU cloning) Adapter (P001 programmer + C001 circuit board + C002 circuit board + W001 data cable + W002 data cable + W003 data cable + Toyota smart key Emulator) +others (Ignition coil + Remote tester)

Language: English.

Upgrade: One-year free online upgrade Via Official Website: http://www.obdstar.com/

Hardware advantages:

1. Integrated VCI box.
2. 8-inch touch screen.
3. Charge directly via OBD interface.
4. Convenient and high-end gift box.
5. Industrial design with silicone case.
6. Back support design: prop on the steering wheel or stand on the table.
7. With 4 Toyota simulation keys (the fifth is coming soon)
8. Programmer P001: EEPROM adapter + RFID adapter + Key Renew adapter.
9. Add the SOP 8PIN EEPROM.

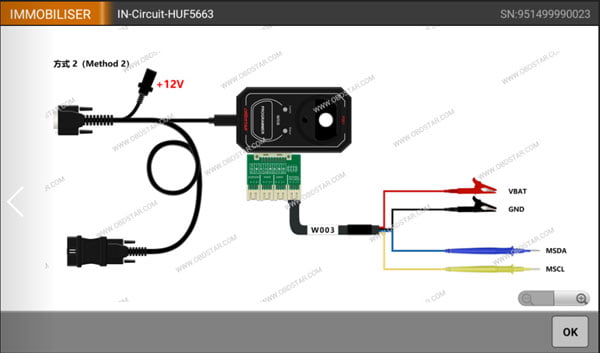

10. Reading clip. C001 / C002 circuit board to read and write chip data with solder.
11. IMMO induction coil to detect the failure of the vehicle key induction coil.

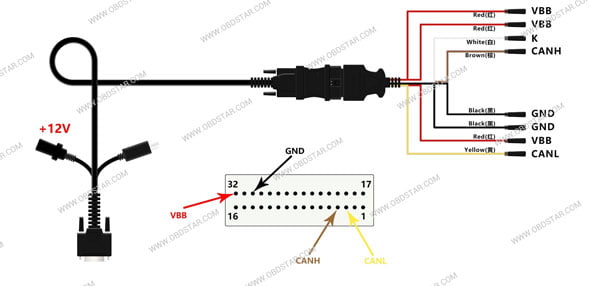

12. Add wiring harness for ECD reading by OBD (for cloning the ECU and activating the switch)

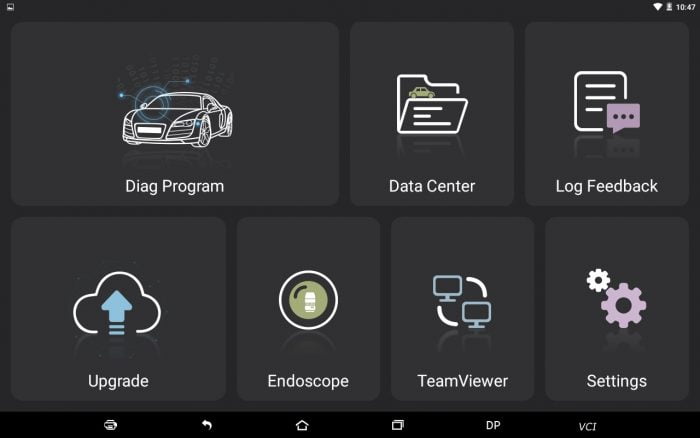

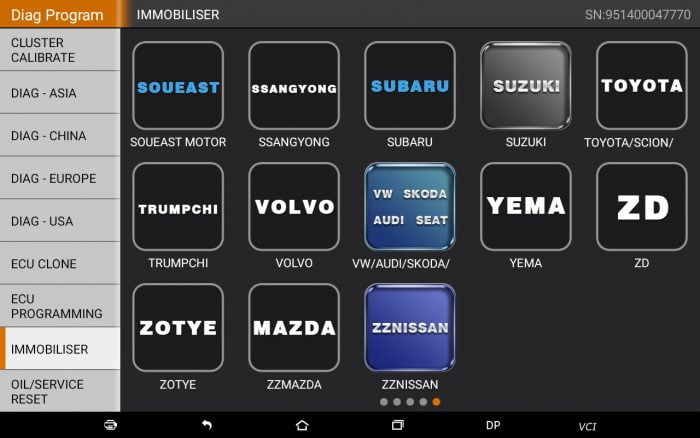

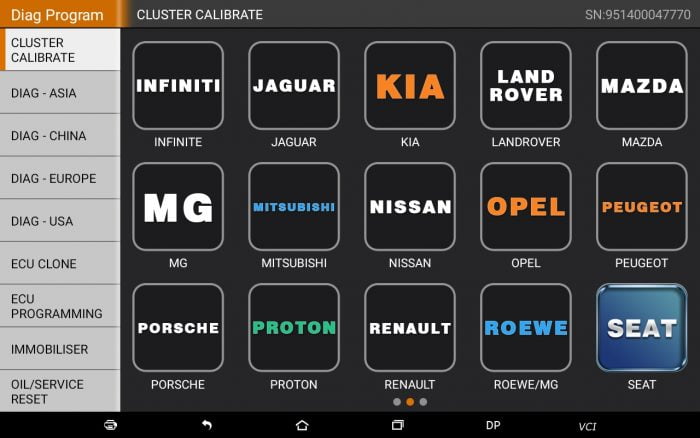

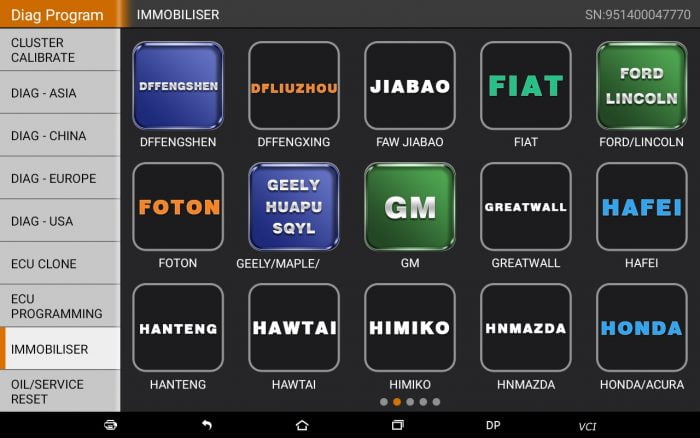

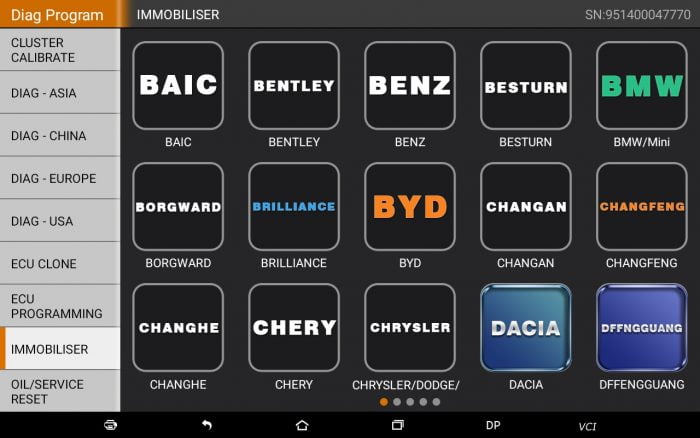

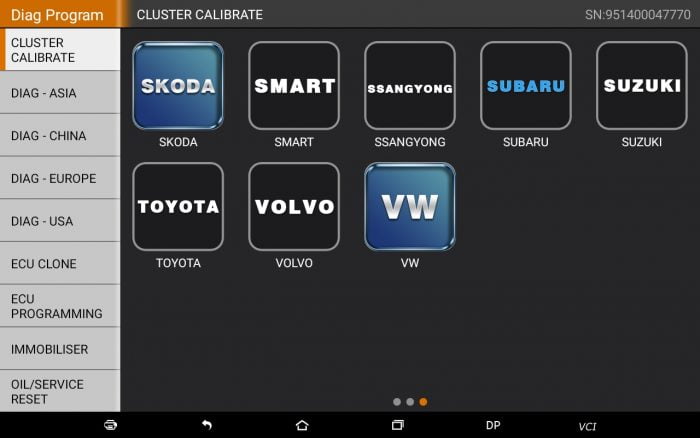

OBDStar X300 DP Plus Display:

OBDStar X300 DP Plus Key Programmer Functions：

• IMMOBILIZER (key programming)
• CLUSTER CALIBRATE (mileage adjustment)
• EEPROM ADAPTER.
• Diagnosis (USA EUROPE ASIA car full systems)

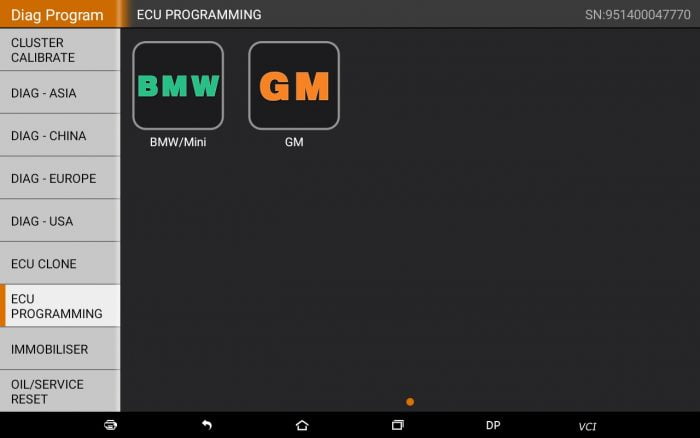

• ECU programming.
• ECU CLONE.
• Oil/SERVICE RESET.
• ABS BLEED.
• Battery Match.
• CVT Learning.
• DPF.
• EPB（PBM）
• GEAR LEARING.
• OIL NOZZLE CODE.
• Renew key.
• SRS RESET.
• STEERING ANGEL.
• TPMS (Low Tire) Reset.
• SUS Reset.
• TPS.
• OBDII.

Please check with the supported car list for specific car models on http://en.obdstar.com/

Advantages of the software:

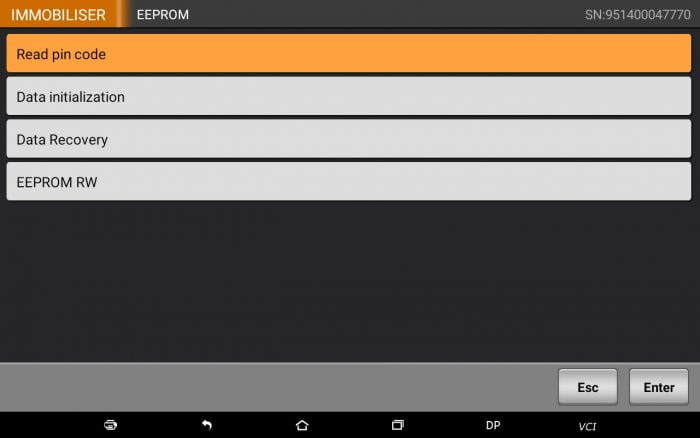

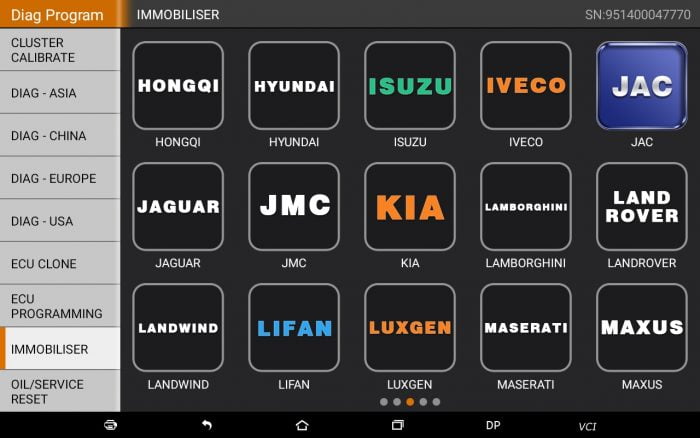

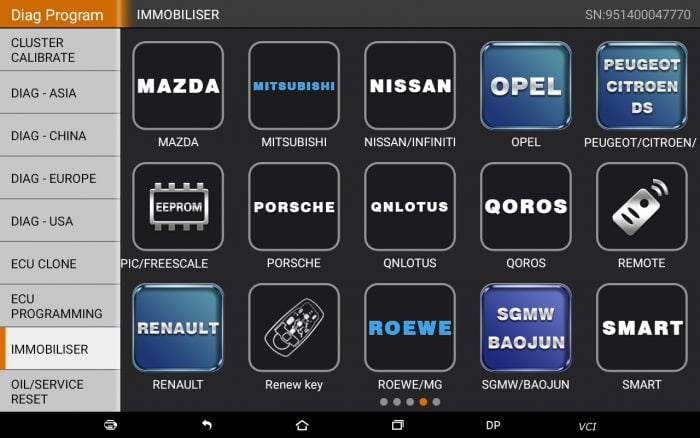

IMMO:

1. EEPROM.
2. Renew the key.
3. Program the key.
4. Program remotely.

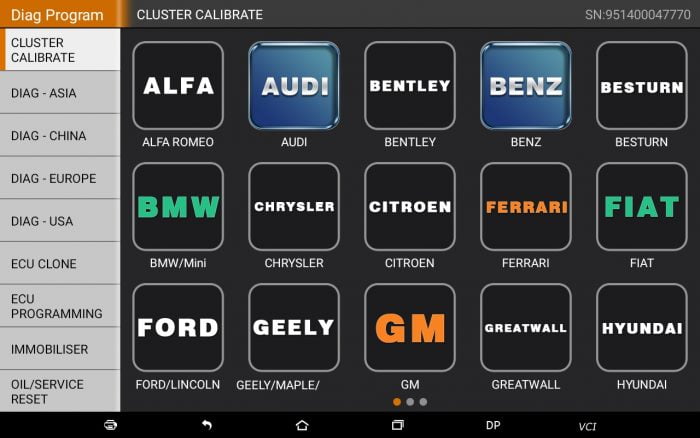

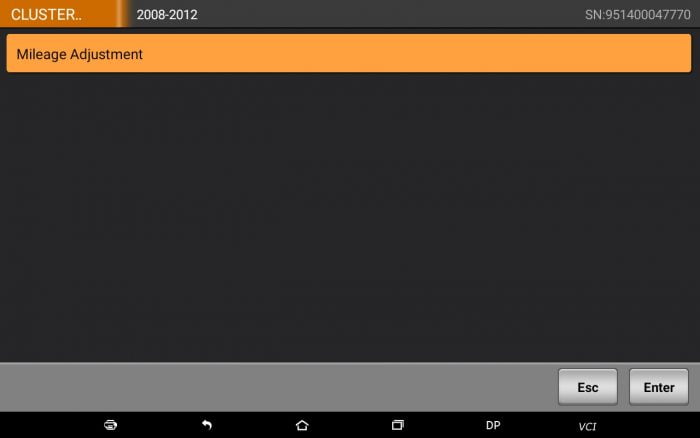

CLUSTER CALIBRATION: Mileage correction/Odometer Adjustment:

Diagnostic Function:

Perform all diagnostics of the vehicle systems:

1. Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCS, Clear DTCS, Read data stream, Special functions etc.
2. Classify special function: ABS, EEPROM Adapter, Battery match, CVT learning, Instrument activation, EPB, Gear learning, Immobilizer, TPMS (low tire) reset, Cluster calibrate, ECU programming, steering angle reset.
3. Specially designed for Android platform with clear and user-friendly interface;

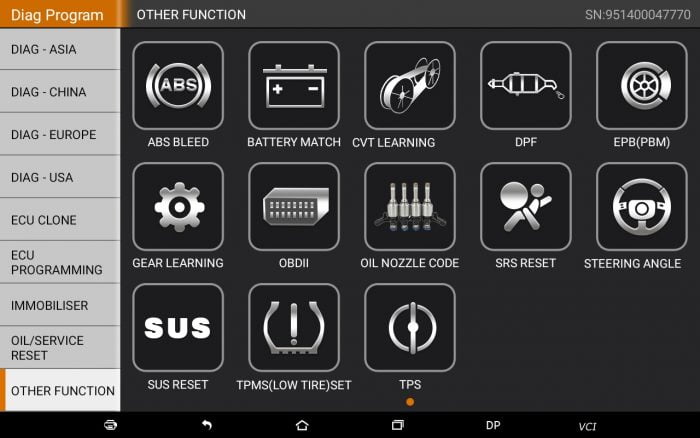

Special functions:

TPS / ABS / EPB / DPF / TPMS / SRS Reset / Fuel Injector / Gear Learning / Battery Matching / ECU Programming / Throttle Matching / Oil / service reset / Steering Angle Reset / Remote Manual Setting / Electronic Steering Reset / CVT Learning / value Reset.

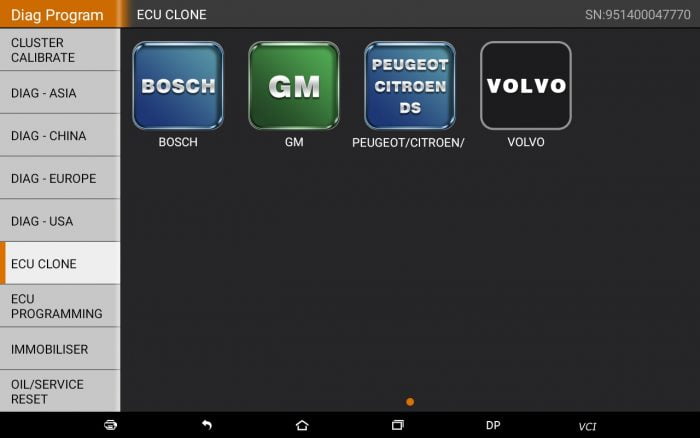

ECU Cloning:

1. ECU Clone, means copy of ECU. X300 DP PLUS copies all data from the original vehicle ECU, then writes all the data copied to the ECU with the same hardware to perform the same ECU function with the original vehicle

2. Clone directly when replacing a new or used ECU! Without online matching in the 4S store or removing the ECU wire for reading and writing! Write directly without disassembling OBD!

3. Three functionalities for ECU Clone:

• Free 4S online: breaks the monopoly of 4S, taking advantage of the automotive maintenance industry.
• Simplified operating procedures: perform foolproof operation.
• No disassembly without risks: read and write data without dismantling the computer.

Switch Activation Function:

Today, many instruments or vehicle audio activate the secondary power supply to enter the power-up state via CAN communication of the module concerned on the vehicle, but sometimes an instrument or audio is separated from the CANBUS network of the vehicle, causing a boot failure when it needs to be This function simulates CAN communication to activate the secondary power supply, which allows the instrument or audio to turn on, which not only allows testing and to check the instrument or the audio, but also save a huge cost for an auto technician to buy a large number of boot platforms from various vehicles and cable harnesses!

Add “Help” functions:

1. Including built-in testable vehicle models, upgrade announcement, specifications, help notes and wiring diagrams, etc.
2. Car list and upgrade announcement, all details are available on the device.
3. Customers can search for features or support only the functions of the device.
4. Help notes: built-in help notes for each model or function.
5. Wiring diagrams: integrated ECU wiring diagrams, more intuitive and practical.

4. Maintenance database: equipped with powerful database.
5. Video center: large number of videos help users to operate device easily.
6. One Key Upgrade: built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade Via Official Website: Http://En.Obdstar.Com/
7. System setting: set VCI formation, language, unit, data logging, user information etc.
8. Remote assistance: achieve remote assistance by this function.
9. Report center: record maintenance data logging and create reports during operation.
10. USB Inspection Camera (optional): Flexible and long pipe with HD camera, it can reach car interior pipeline or narrow space to have an overall inspection.

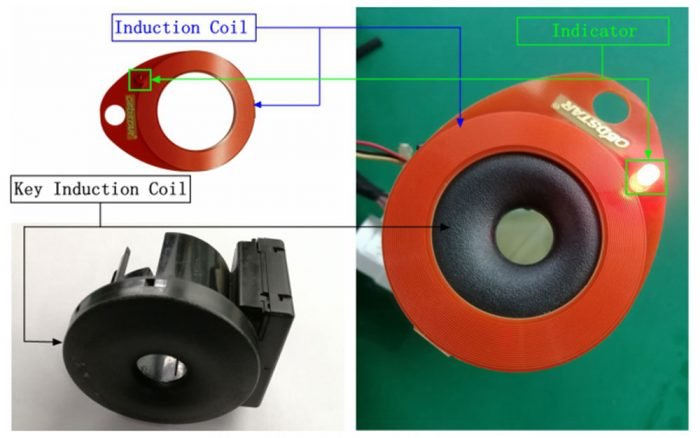

How to use OBDStar X300 DP Plus Induction Coil?

1. Functional Overview: Induction Coil is used to detect the key induction coil failure of the vehicle.
2. Application Method: Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good;the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.

OBDStar X300 DP Plus Key Programmer Technical Parameter:

• Operating system: Android 5.1.1.
• Processor: Exynos4418 Dual Core ARM Cortex A9 1.4GHz.
• Battery: 3700mA, rechargeable polymer lithium battery.
• Expansion memory card: Micro SD (TF) card 32G supported.
• Capacity memory: 1 GB.
• Storage capacity: 32 GB.
• LCD: 8.0 inches.
• LCD resolution: 1280 * 800.
• Touch screen: capacitive touch screen.
• Camera: 5 mega rear view camera.
• Wi-Fi: supported.
• Temperature operation: -10 ℃ ~ 55 ℃ (14 ℉ ~ 131 ℉)
• Storage temperature: -20 ℃ ~ 70 ℃ (-4 ℉ ~ 158 ℉)
• Weight: about 1.0 kg
• Size: 254mm * 174 * mm * 35m.

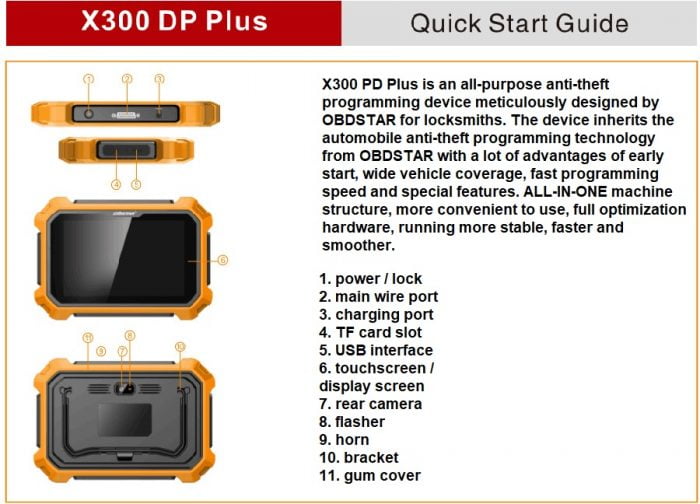

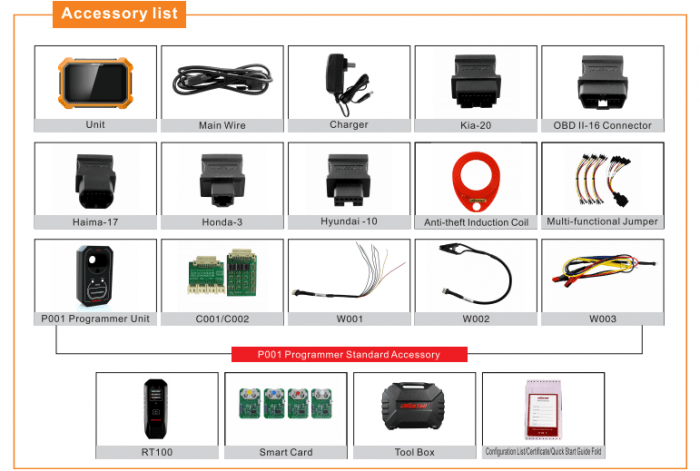

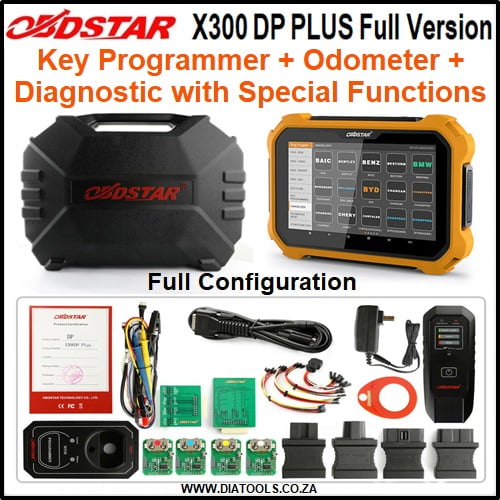

OBDStar X300 DP Plus Key Programmer Package list:

• Main unit DP Plus.
• main wire.
• 12V 2A DC charger.
• KIA-20.
• OBD II-16 connector.
• HAIMA-17
• HONDA-3.
• HYUNDAI / KIA-10.
• Induction coil IMMO.
• Jumper Muti-functional.
• programming unit P001.
• PCB C001 / C002.
• W001.
• W002.
• W003.
• RT100.
• TOYOTA simulation smart keys.
• Configuration list / Certificate / Quick start guide
