OBDStar ISCAN Triumph Motorcycle Diagnostic Tool

OBDStar ISCAN Triumph Motorcycle Diagnostic Tool

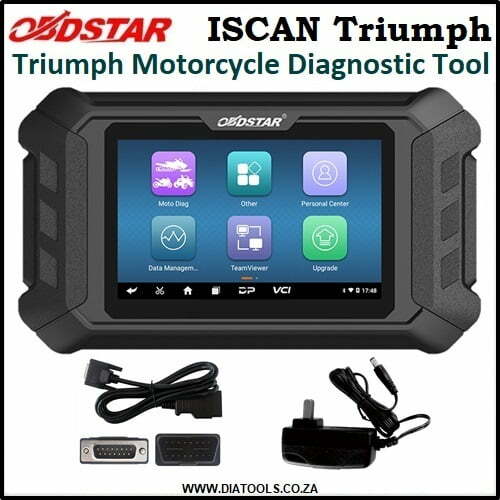

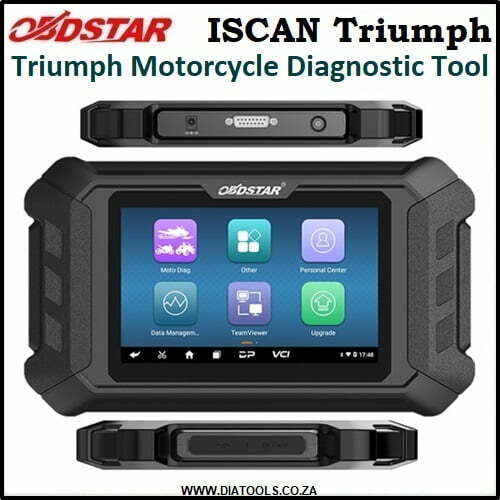

The OBDStar ISCAN TRIUMPH is a portable tablet which has super performance and industrial appearance design specialized for TRIUMPH. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.

ALL OBDSTAR PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Obdstar/

Support Triumph diagnosis and key programming.

OBDStar ISCAN Triumph Functions:

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade Via Official Website: Http://Www.Obdstar.Com/
7. One-click remote function, OBDSTAR technical staff remote assistance.

Advanced function:

1. The first fault guidance, help data, technical bulletin, diagnostic socket etc help you diagnose accurately and efficiently;
2. Diversified data stream display modes as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

Motorcycle/snowmobile/ATV/UTV support series: TRIUMPH.

Motorcycle key programming support series: TRIUMPH

Function Display:

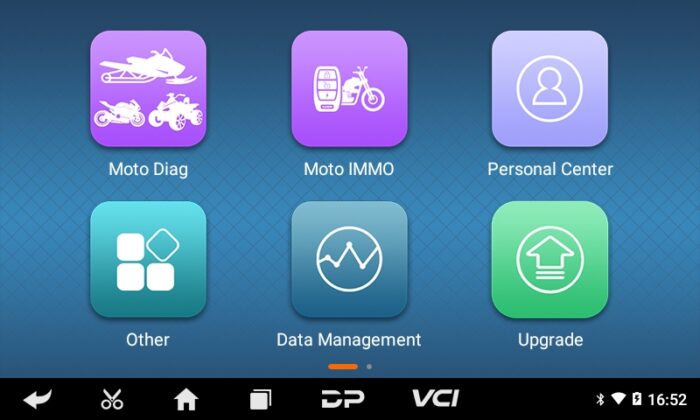

1) Main Page/Brand Supported.

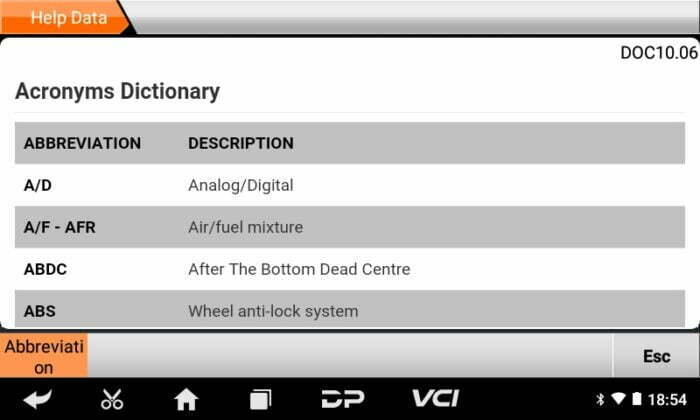

2) Help Data.

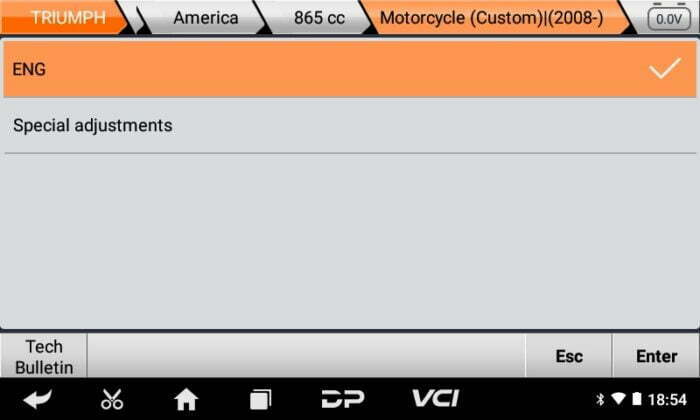

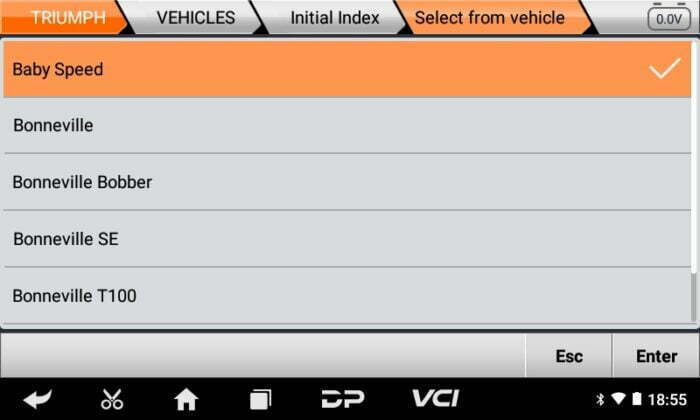

3) Supported Systems/Vehicles List.

Specifications:

• Operation System: Android 5.1.1
• CPU: RK3128 Quad-Core ARM Cortex A7
• Battery: 2600mA, Rechargeable Polymer Lithium Battery
• Extension Memory Card: 32G Micro-SD (TF) Card Supported
• Storage Capacity: 16GB
• LCD: 5.0 Inch
• LCD Resolution: 800*480
• Touch Screen: Capacitive Touch Screen
• WIFI: Supported
• Working Temperature: -20℃~55℃ (14℉~131℉)
• Storage Temperature: -20℃~70℃ (-4℉~158℉)

Package List:

• Main Unit (Tablet)
• M001 Main Cable
• 12V2A Charger
• Quick Start Guide.
