Autel PowerScan PS100 Electrical Circuit Tester


SKU: Autel PowerScan PS100 Category: Tag:

Autel PowerScan PS100 Electrical System & Circuit Tester

The Autel PowerScan PS100 multi-functional circuit tester is the most revolutionary circuit tester to date, provide fast and accurate solution to electrical system diagnostics. PowerScan handheld Electrical Tester work stand-alone, is truly the ultimate in power and affordability, allowing users to check circuitry in one single step.

ALL AUTEL PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Autel/

Autel PowerScan PS100 Electrical Tester


  1. Handheld tester works alone no PC and other items need and is easy to use.
  2. Built-in Flashlight enables you to work in the dark.
  3. Easy to read AVO meter allows you to read voltage with current and resistance at the fingertip.
  4. 100% original Autel make with high quality.

PowerScan PS100 Features:

  1. Performs every type of service including power injection / measurement / ground testing / polarity checks / continuity testing and components activation.
  2. Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip.
  3. With a flip of the power switch you have an instant hot / ground lead for powering up electrical components like cooling fans and relays etc.
  4. Simultaneously uses the hot lead and the ground lead to activate components right in your hand.
  5. Instantly identifies positive / negative and open circuits.
  6. Tests for bad ground contacts instantly allowing you to follow and locate shorts fast without wasting fuses.
  7. Instantly checks continuity of switches / relays and diodes.
  8. Circuit breaker protected.
  9. Built-in Flashlight enables you to work in the dark.
  10. Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment.
  11. 20ft (extendable) cable provides excellent accessibility to test along the vehicle.
  12. Extremely easy to use and highly reliable.

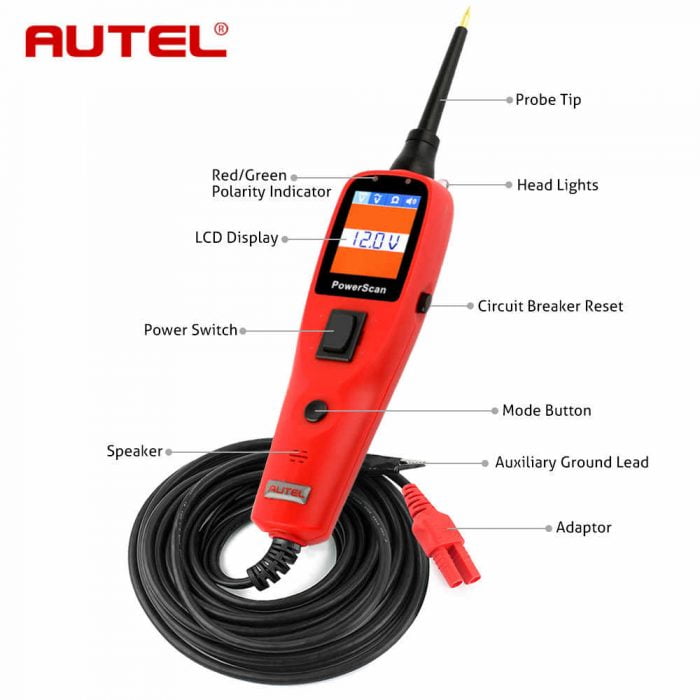

Autel PowerScan PS100 Electrical Tester Layout

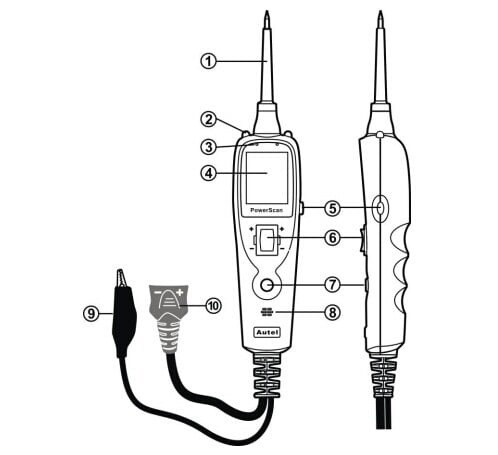

PowerScan Display:

Autel PowerScan PS100 Electrical Tester Display

  1. Probe Tip Contacts the circuit or component to be tested.
  2. Head Lights Illuminates dark work areas or work areas at night.
  3. Red/Green Polarity Indicator Identifies positive / negative or open circuits. The RED Indicator is when the Probe Tip is 3 contacting a positive circuit. The GREEN Indicator lights when the Probe Tip is contacting a negative circuit.
  4. LCD Display Indicates test results.
  5. Circuit Breaker Reset.
  6. Power Switch Allows you to conduct a positive or negative battery current to the tip for activating and testing the function of electrical components.

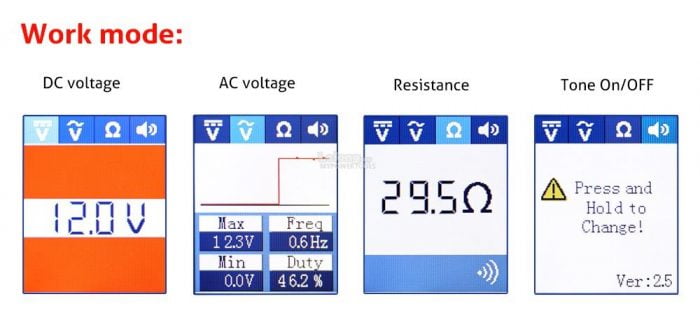

  7. Mode Button Selects the work mode: AC voltage / DC voltage / resistance / tone.
  8. When the audio tone is turned on, a beep will be heard.
  9. Auxiliary Ground Lead – Assists test as a ground lead.
  10. Adaptor Connects to the battery.

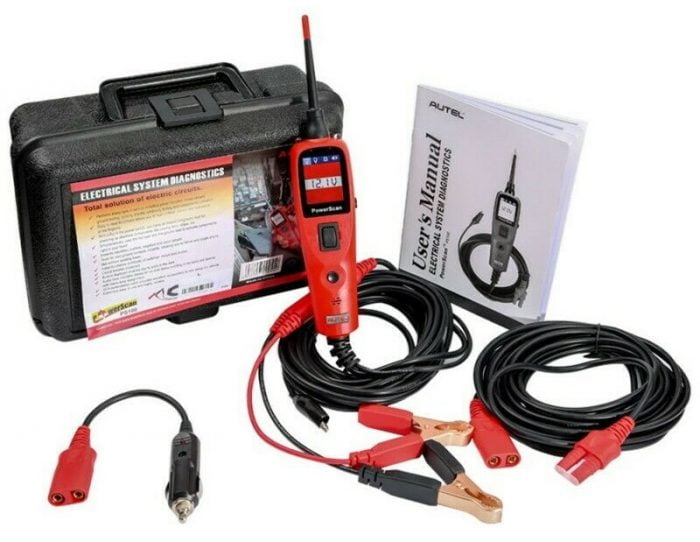

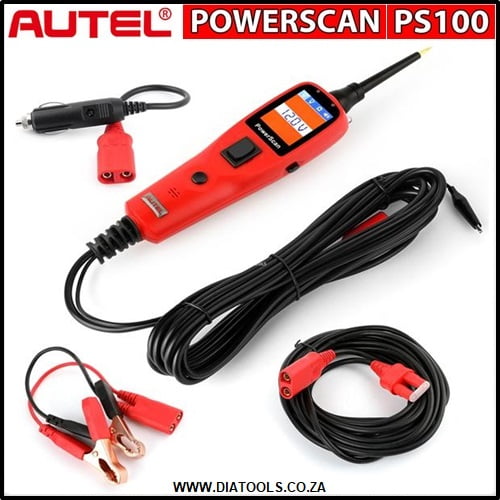

PS100 Package List:

  • PowerScan PS100

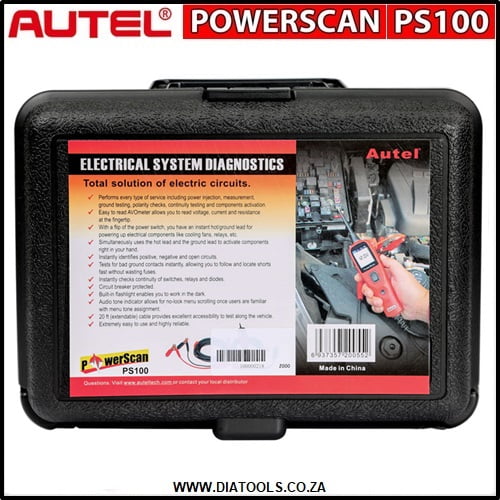

  • Rugged blow molded case
  • 20ft. extension cable
  • Probe tip
  • Battery hookup clips
  • Cigarette lighter adapter
  • User Manual

Autel PowerScan PS100 Electrical Tester Package List

Weight2 kg
Dimensions36 × 25 × 10 cm
