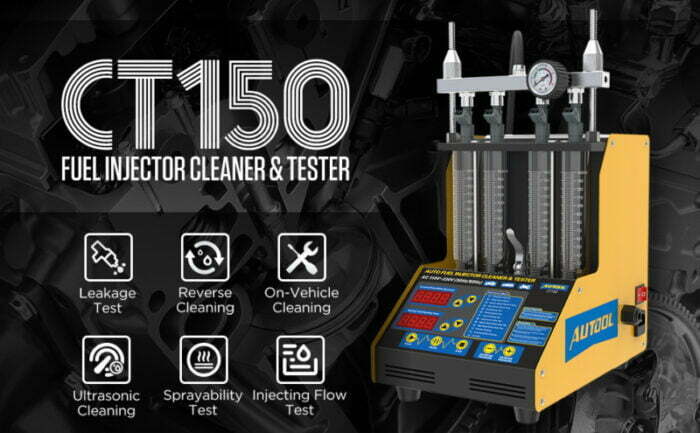

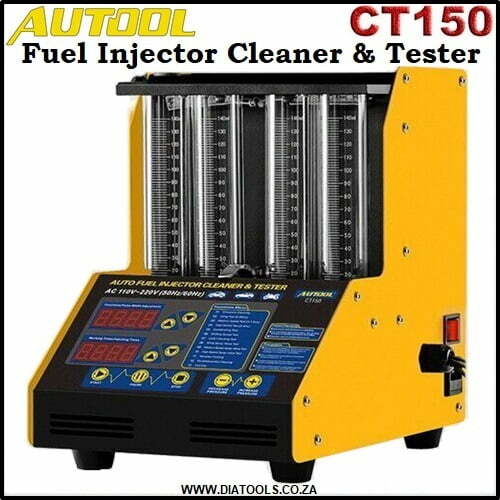

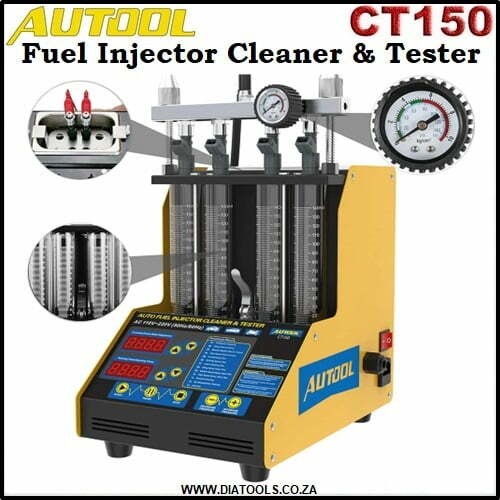

AUTOOL CT150 4-Cylinder Petrol Car & Motorcycle Injector Ultrasonic Throttle Cleaner Injection Testing.
This AUTOOL CT150 4-Cylinder Automotive latest generation ultrasonic injector cleaner upgrade version for CT200. We can cleaning and testing both petrol car and motorcycle injector with this machine.(motorcycle support HONDA YAMAHA SUZUKI SANYANG only) We can even clean fuel system, throttle valve without disassembly via CT150 (need additional accessories)
It is good at remove carbon from your fuel system, testing leaking, Uniformity, in breathe about injectors.
- We have two version 110V and 220V ,Would you please tell us which one you’d like to?
- This one was for 4 cylinder car (It will fit for 2 cylinder after blocking two test tube )
- The machine work on petrol injector, not for diesel injector
- Motorcycle injector testing for HONDA for YAMAHA for SUZUKI for SANYANG only (adapter need extra fee),
customization special adapter for your motorcycle, please contact us.
- Convert cable come with machine, please try to use the convert cable if pulse cable can not match your injector
If you want a User Manual ,please feel free to contact with me.
LESS THAN 2% OF INJECTORS FAIL DUE TO MECHANICAL FAILURE. THEY JUST GET CLOGGED WITH DIRT THAT COMES
THROUGH THE FUEL SYSTEM.
HOW ABOUT CLEAN INJECTORS COMPLETELY LET IT REBORN.
AUTOOL CT150 Automotive Main Function:
- Cleaning petrol injector with ultrasonic.
- Cleaning spark plugs: Put spark plug into cleaning tank, Add clean fluid and begin clean.

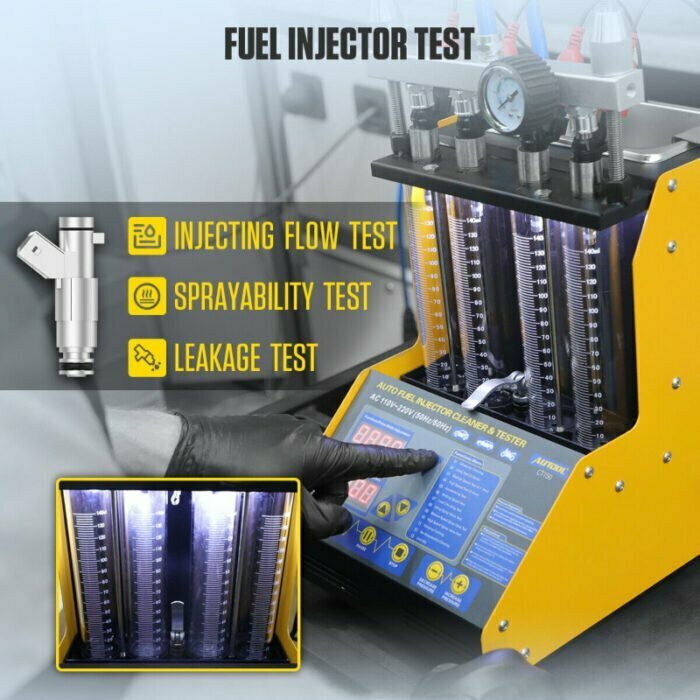

- Testing injector: injection in different situation, check leaking and blocking.
- Cleaning injector without disassembly (need extra accessory and extra fee,choose by yourself)
- Cleaning throttle valve without disassembly. (need extra accessory and extra fee,choose by yourself)
- Standard config for top feed injector only (side feed injector adapter need extra fee, choose by yourself
- Cleaning and test motorcycle injector, testing function for HONDA YAMAHA SUZUKI SANYANG injectors only, (need extra accessory and extra fee,choose by yourself)

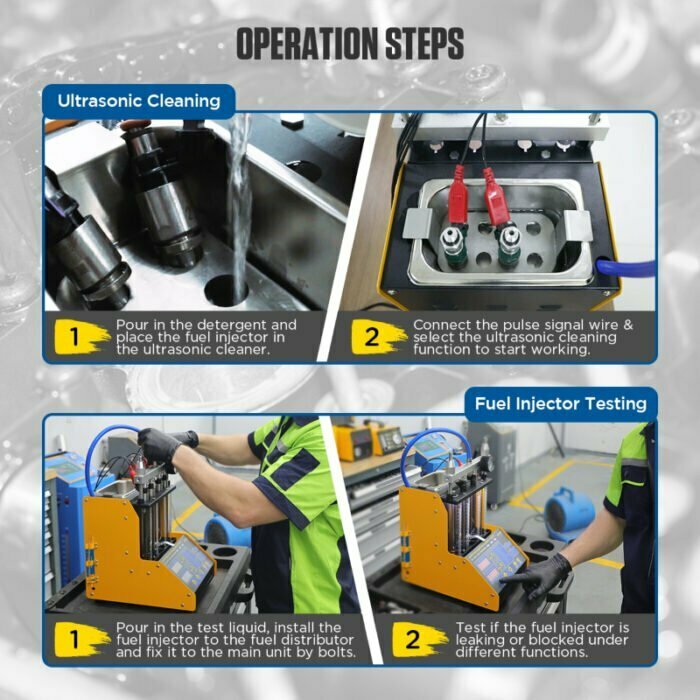

The CT150 cleaning machine how to work:
- Clean injector’s outside with gasoline or cleaning liquid before open machine.
- Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.
- Turn on ultrasonic system pulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the
- Fixed injectors on main machine.
- Testing injectors for resistance, shorts, and current draw.
- Performing leak test, spray pattern, and flow rate testing on flow bench.
- The injectors are now returned to the flow bench for retesting of all functions.
AUTOOL CT150 FEATURES:
- LED display;
- Ultrasonic cleaning trough built-in;
- Tool trolley make it more conveniently to operate;
- Equip with high quality SIEMENS pump, make it endurable;
- Discharging fluid more quickly, add 2 value in front of machine.
for Audi, for Australia Ford, for Benz, for BMW, for Brilliance, for Chevrolet, for Chevy, for Chrysler, for Citroen, for Dacia, for Dadi, for Daewoo, for Daihatsu, for Demo, for Fiat, for Ford, for GM, for Holden, for Honda, for Hyundai, for Isuzu, for Jaguar, for Kia, for Lancia, for Land Rover, for Mahindra, for Maruti, for Mazda, for Mitsubish, for Nissan, for Opel, for Peugeot, for Porsche, for Renault, for Romeo, for Rover, for Saab, for Seat, for Skoda, for Smart, for Subaru, for Suzuki, for Tata, for Toyota, for Volvo, for VW, for Yamaha
- Power supply: AC220V/AC110V±10%
- Frequency: 50HZ±0.5
- Humidity: 85%
- Environment Temperature: 040
- Magnetic Field: 400/m
- Spark and fire is prohibited.
AUTOOL CT150 Automotive Specifications:
- Fuel Tank Capacity: 2000 ml
- Capacity of Measuring Cylinder: 125 ml
- Speed Range: 0~7500 rpm
- Injecting Times: 0~9900 Step: 100ms
- PWM Pulse: 0~20.0 ms Step: 0.1 ms
- System Pressure: 0~0.6Mpa (adjustable)
- Time: 0~20 minute (adjustable)
- Power of Ultrasonic Cleaning: 70W
- Frequency of Ultrasonic Cleaning: 28 KHZ±0.5 KHZ
- Weight: 10KG

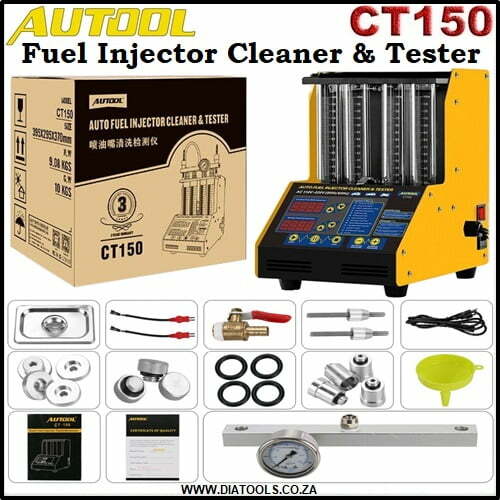

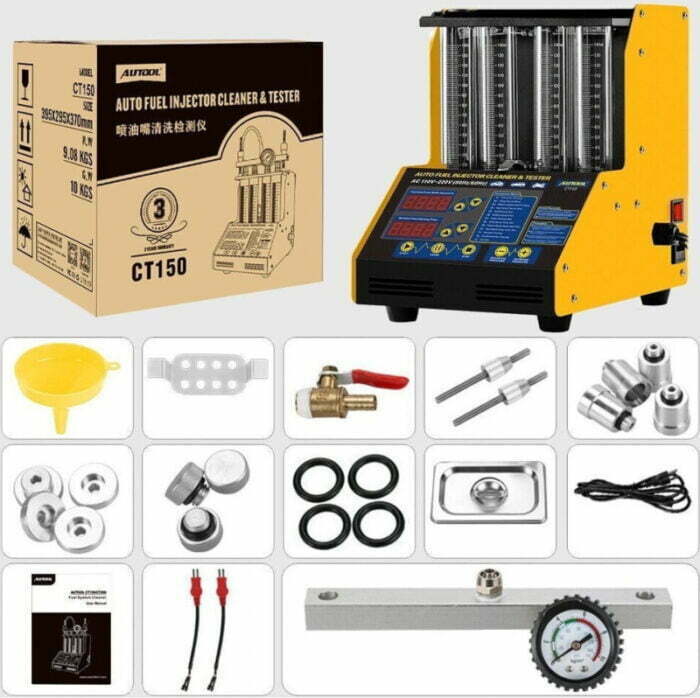

AUTOOL CT150 Package included:
- 1 set x CT150 unit ultrasonic cleaner.
- 2 pcs Special injector adapter cable.
- 2 set Universal injector adapter joints.
- 1 pcs funnel.
- Power cable.
- Ultrasonic trough.
- Pressure meter.
- Measuring test tube.
- Test fluid drain valve.
- Cleaning fluid drain valve.
- quick-connect tubing.
- Fasten bolt.
- Fuel distributor.
- The Screw.
