FGTech Galletto 4 Master ECU Programmer For Car & Truck

FGTech Galletto 4 Master V54 BDM-Tricore-OBD Function ECU Programmer For Car & Truck

The FGTech Galletto 4 Master V54 BDM-Tricore-OBD Function ECU Programmer is new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Cars, Trucks, Motorcycles, Marine, BDM MPCxx, BDM Boot Mode, checksum.

Top 6 Reasons To Get FGTech Galletto 4:

1. Latest Version: V54
2. Supported Operating System: windows XP.
3. Unlock Version: Can Use Directly. No Need To Activate.
4. FGTECH V54 PCB board.
5. Supported Languages: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish.
6. Support Tricore Function.

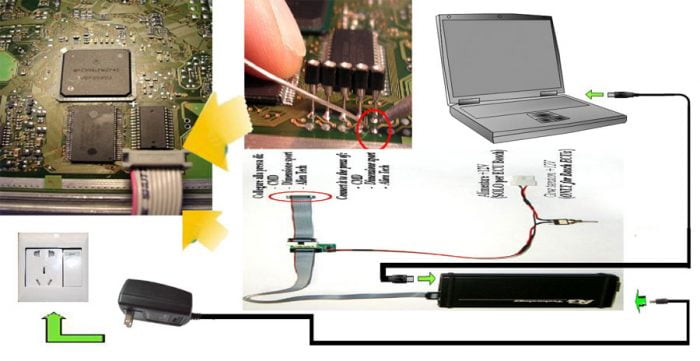

FGTech Galletto 4 Master BDM Connection:

FG Tech Galletto 4 Master Description:

FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Cars, Trucks, Motorcycles, Marine, BDM MPCxx , BDM Boot Mode, checksum.

V54 FGTech Galletto 4 Boot Mode System:

• NEW JTAG – BDM – MOTOROLA – FREESCALE – INFINEON.
• Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 – Mair 8GMF.
• New Delphy DCM3.5xx DCM3.7xx TRW.
• Motorola Freescale MPC 555/556/561/562/563/564/565.
• Motorola MC 68332 – MC YQQCU – MC 68377 Trionic 5/7/8 GM-OPEL-SAAB.
• For Motorola MC 68376 Campi 01 Lamborghini – Lotus.
• Motorola MC 68336 MEMS D5 ROVER.
• Motorola ZC 439615 – ZC 439507 IAW FIAT – VAG.
• New Line OBD protocols VPM GM – Hummer-Corvette-Munstang-Blazer-Cadilac.
• New Line OBD protocols Tx-Rx – Subaru – Mitsubischi – Hitachi – Denso ecu.
• All EDC17 MED17 is good always modify

FGTech Galletto 4 Automatic Checksum:

• All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso.
• Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens.
• Motorola MC68332 – MCYQQCU – MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507.
• Motorola Freescale MPC 555/556/561/562/563/564/565.
• Freescale MPC 5553/5554/5565/5566.
• BDM.
• 5-30V Car / Industrial Vehicles, L line / K line KWP, CAN.
• Can Bus V2.0 50Kb > 1000Kb.
• J1850 VPW PWM GM -FORD.
• Rx Tx RS232.
• RS 485.
• Automatic setup Pull up K-L line 250, 500, 1000 ohm.
• Automatic setup termination Can bus 0, 60,120 ohm.

FGTech Galletto 4 Master Version:

1. Recovery Mode Complete
2. Funzione scan tool per eliminare i DTC
3. Function scan tool for erase the DTC
4. Controllo tensione di batteria auto in tempo reale
5. Check tension of battery car in real time.

FG Tech Galletto 2-Master V54 PCB Board:

Support Vehicle Models List:

Vehicles:

Alfa Romeo, Audi, BMW, Cadillac, Chevrolet, Chrysler, Citroen, Corvette, Dacia, Dodge, Ferrari, Fiat, Ford, Honda, Hummer, Hyundai, Isuzu, Jaguar, Jeep, Kia, Lancia, Land Rover, Maserati, Mazda, Mercedes, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rover, Saab, Seat, Skoda, Smart, Ssangyong, Suzuki, Toyota, Volvo, Volkswagen. (For full list contact us)

Motorcycles:

Aprilia, Ducati, Gilera, Moto Guzzi, Moto Guzzi, Moto Guzzi, Piaggio, Piaggio. (For full list contact us)

Trucks & tractors:

Astra, Case, Claas, DAF,, Deutz Fahr, Fendt traktorius, Hürlimann, John Deere, Iveco, Iveco Marine, Lamborghini, Landini, MAN, Massey Ferguson, MC Cormik, Mercedes, New Holland traktorius, Nissan, Renault, Same, Scania, SISU varikl?, Steyr, Valtra traktorius, VW, Volvo Penta, Volvo.

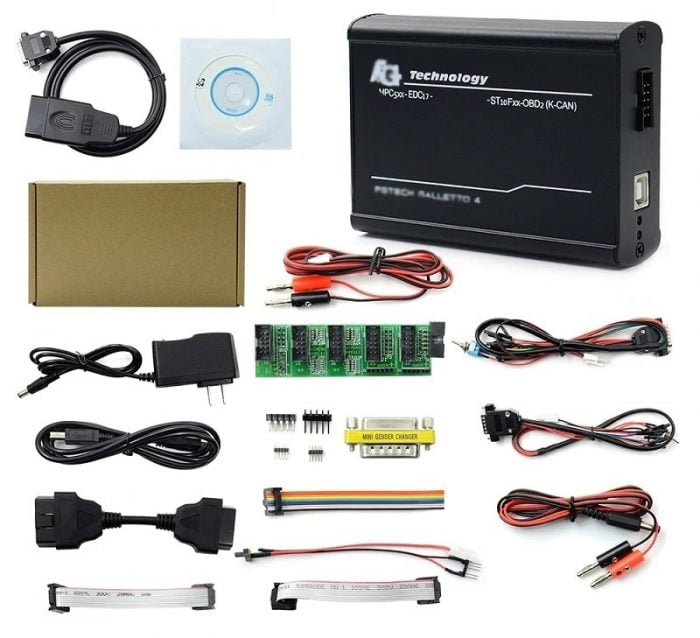

Package List:

• New Version Main Interface.
• ECU Cable for Boot.
• 1pc x Adapter for BDM to CMD with BDM Cables.
• 3pcs x BDM Adapters.
• 6pcs x  BDM Connectors.
• 2pcs x Power Cable.
• OBD2 Cable.
• USB Cable (1.5meter)
• CD (2012 Version SW -MASTER, Documents PDF, Pictures, etc.)
