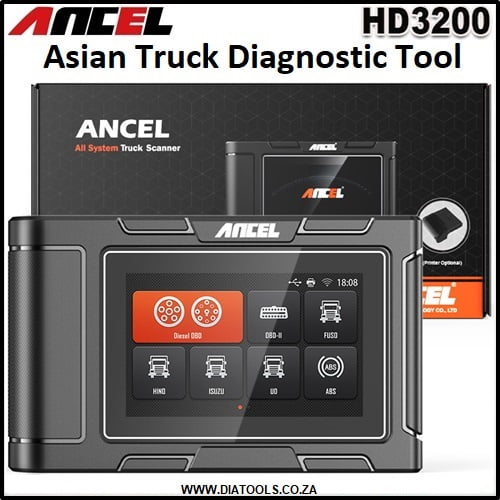

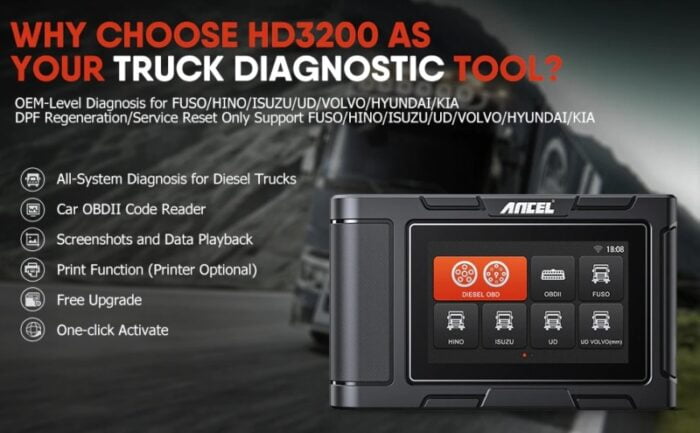

Ancel HD3200 Heavy Duty Truck Diagnostic Tool

Original price was: R8,699.00.Current price is: R6,999.00.

Ancel HD3200 All System Heavy Duty Truck Diagnostic Scanner For Asian Truck

The Ancel HD3200 truck diagnostic scan tool has added diagnose features including Fuso, Isuzu, UD, Hyundai, Kia and other Asian diesel truck models. With richer diagnostic functions the HD3200 detect most of the faults and where the system problems is on the truck that needs to be repaired. It is suitable for truck owners and truck repair shops.

ALL ANCEL PRODUCTS: https://www.Diatools.Co.Za/Brand/Ancel/

Ancel HD3200 Heavy Duty Truck Diagnostic Tool

Ancel HD3200 Features:

  1. Supports: FUSO/HINO/ISUZU/UD/VOLVO/HYUNDAI and KIA, with standard OBD protocols, including OBDII and HDOBD.
  2. Support truck all-system diagnosis.
  3. OE-Level Diagnosis: compared with other diagnostic scan tools, only HD3200 includes a separate menu diagnosis for Fuso/Hino/Isuzu/UD/VOLVO/Hyundai and Kia, get ANCEL HD3200 diesel OBD scanner, you will get an OEM-Level diagnosis for various Asian heavy trucks (and construction machinery) of these models.
  4. Special Functions: DPF Regeneration, Oil Reset .
  5. Convenient operation & optional printer: clear operation interface and commercial vehicles are classified according to vehicle information. provide one-click upgrade/screenshot/activation functions, and print diagnostic reports at any time. Optional printer to print diagnostic data and reports.
  6. Wi-Fi One-key Activate and Update!

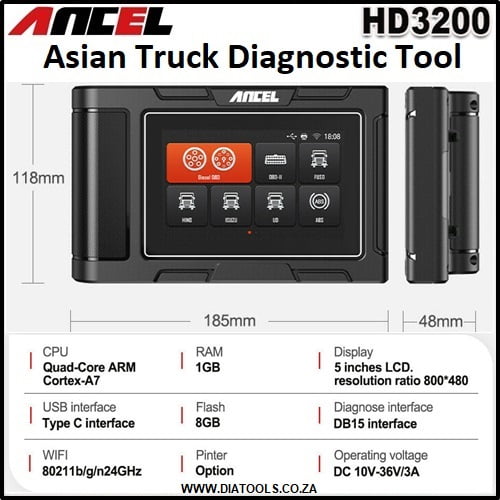

  7. Equipped with a 5-inch LCD Touch Screen for Easy Operation, One-click Screenshot.
  8. English and Traditional Chinese Language Switch.
  9. Lifetime Free Update via official website: http://www.Anceltech.Com/

Ancel HD3200 All-System Diagnosis:

  1. Engine drive system check.
  2. Automatic Transmission Diagnostic.
  3. ABS EPB Anti-lock Brake System.
  4. SRS Airbag Crash Data Reset.
  5. SAS Steering Angle Sensor Reset.
  6. Oil Light Service Reset.
  7. Suspension System Adjustment.
  8. Audio System.
  9. IMMO Immobilizer System.
  10. ESP ASC Brake System.
  11. SAS Steering Angle System.
  12. Air Conditioning System.
  13. DPF System.
  14. Air Condition System.
  15. Auto Headlamp System.
  16. ACC System.
  17. Radio Audio System.
  18. Door Windows System.
  19. Battery Manager System.
  20. TPMS Tire Pressure Monitor System,
  21. Support Most of Car Drive, Power-train, Chassis and Body System Diagnose, Error Scan, Reset, Activate, Reprogramming, Relearning, Coding etc Function.

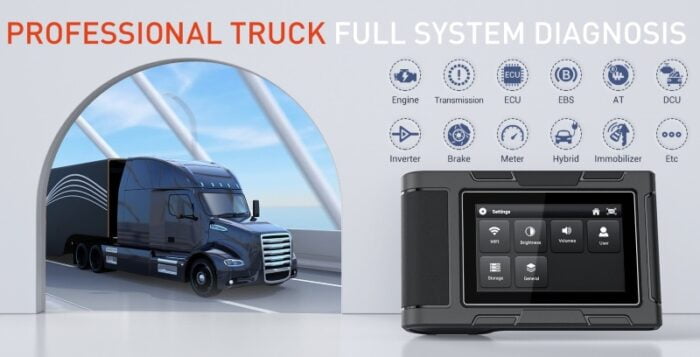

Ancel HD3200 Truck Diagnostic Tool Full System Diagnosis

HD3200 Special Functions: DPF, Oil

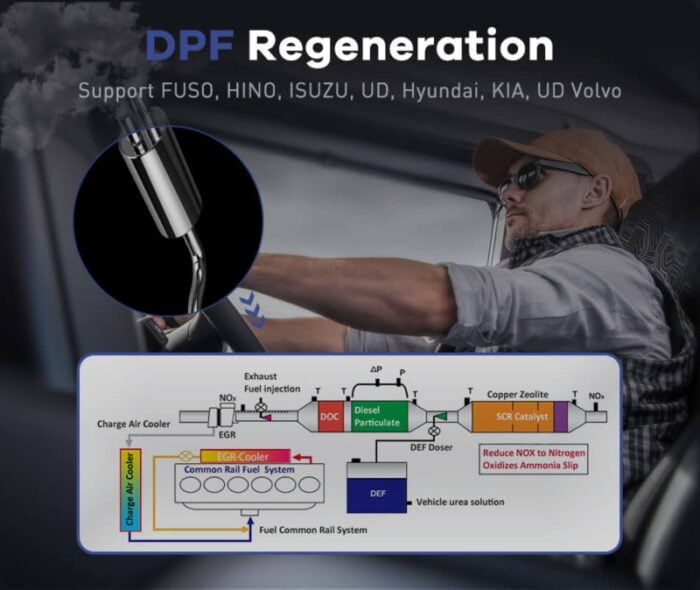

1. DPF Regeneration.

Is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (Namely: High temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

DPF regeneration may possibly performed in the following cases:

  1. Replace exhaust back pressure sensor.
  2. Removed or replace PM trap.
  3. Fuel additive nozzle is removed or replaced.
  4. Catalytic oxidizer is removed or replaced.
  5. DPF regeneration MIL is on and maintenance is performed.
  6. DPF regeneration control module is replaced.

2. Maintenance Light Reset: Oil Reset.

  • The lightening of the car maintenance light indicates that the vehicle needs maintenance. Reset the mileage or driving time to zero at the time of maintenance.
  • Clear the maintenance light and the system will start a new maintenance cycle.

Ancel HD3200 OBD & OBDII Scanner:

  1. Reading Codes: Present some diagnostic trouble codes after scanning the vehicle.
  2. Erase Codes: Clear the fault codes after doing the repair according to the prompt of the scanner.
  3. Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
  4. I/M Readiness: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
  5. Freeze Frame: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
  6. On-Board Monitor Test: Check the vehicle conditions that are recorded by the on-board computer the time the emission-related fault occurs.
  7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer. (Note: vehicles using a controller area network (CAN) protocol to communicate. Does not support this Function.
  8. Read Vehicle Information: Display the information, namely: VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
  9. Component Test: Components can be actuated by commands sent from the scanner to test their operability.
  10. DTCs Lookup.

Support print and share report:

  • Supports printing function, print diagnostic report data, namely: vehicle information, fault codes, and data streams, and can print software interface.
  • You can share the health report of your Truck with others via email, and you can send it to yourself. which is very convenient.

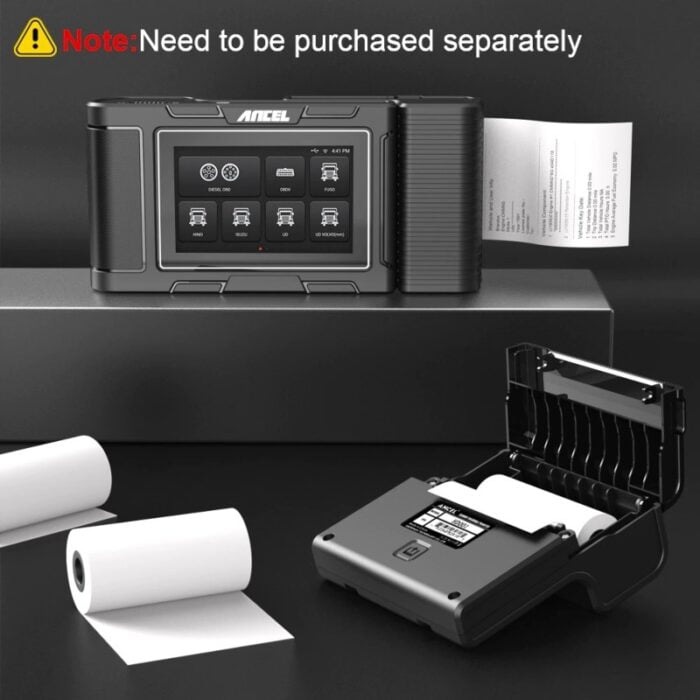

Note: The printer is optional. If you need to print data, you can buy the printer separately.

Printer Optional: Optional HD3200 Printer Hardware Parameter.

Printer: 80mm Thermal printer Print speed: 60mm/s Effective print width: 72mm Print resolution: 203dpi 1mm=8dots Print paper specifications: 80mm*30mm

HD3200 Support Pin Detect:

This function mainly measures the voltage of 16 PIN of OBD diagnostic interface, and judges the pin position of K- line and CAN line. After connecting the OBD interface of the vehicle, click the main interface “Tools” to select pin detection. The program automatically measures the 16pin voltage of the OBD diagnosis interface, and judges the pin position of K-line and can line.

Note: The test requires ECU no response, please ask the customer to check whether the diagnostic interface has voltage.

HD3200 One-click Feedback:

This diagnostic tool supports one-click feedback. This function is if you have diagnostic problems, ANCEL’s professional technical team will provide you with solutions.

Special function support models:

  • DPF Regeneration diagnoses: for Hino, Isuzu, UD, Fuso and Volvo.
  • Service Reset functions diagnose: for Isuzu, Fuso and Hino.

Support Asian Truck List:

  • With separate menu on the device, support private protocols: For Isuzu, Hino, Fuso, UD, UD Volvo, Hyundai and KIA.
  • Without separate menu on the device, it support full system diagnostic: For Freightliner, International, HD Volvo, Kenworth, Peterbilt, Ford, Mack, Cummins, Detroit, Caterpillar and Paccar.

The only code reader on the market with the proprietary protocol of these models and with more powerful diagnostic functions.

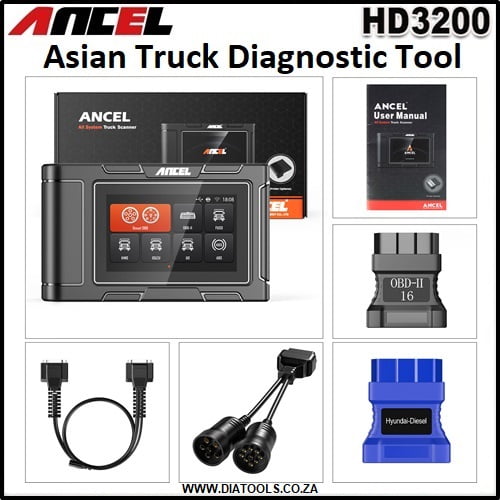

Ancel HD3200 Package List:

  • HD3200 Main Unit.
  • Main Test Line.
  • 6 Pin & 9 Pin Connector.
  • OBDII-16 Pin connector.
  • Hyundai-Diesel OBD-16 Pin Connector.
  • User Manual.

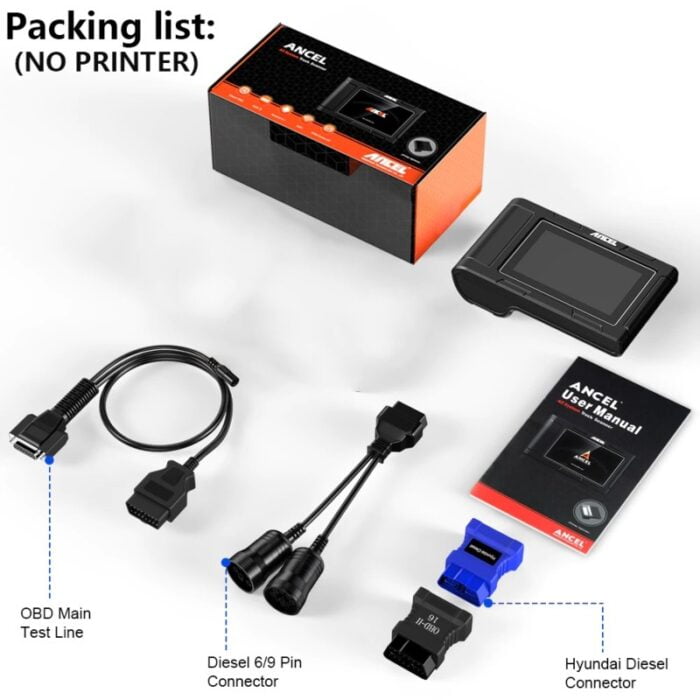

Ancel HD3200 Heavy Duty Truck Diagnostic Tool Package List

Weight2 kg
Dimensions30 × 20 × 15 cm
