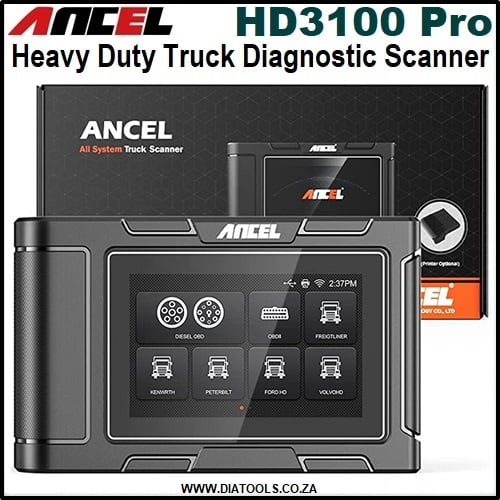

Ancel HD3100 Pro Heavy Duty Truck Diagnostic Tool

Ancel HD3100 Pro Heavy Duty Truck Full System Diagnostic Tool with DPF Regen.

The Ancel HD3100 Pro is a diesel full-system diagnostic code reader card specially developed by Ancel according to the characteristics of the US diesel driving market. Its cover seven diesel models in the US market: Freightliner, Peterbilt, Kenworth, International, Ford, Volvo and Mack. Fault codes can be easily read/deleted and real-time sensor data analyzed and it covers namely: engine, transmission, ABS and chassis or body controls for most major trucks.

ALL ANCEL PRODUCTS: Https://Www.Diatools.Co.Za/Brand/Ancel/

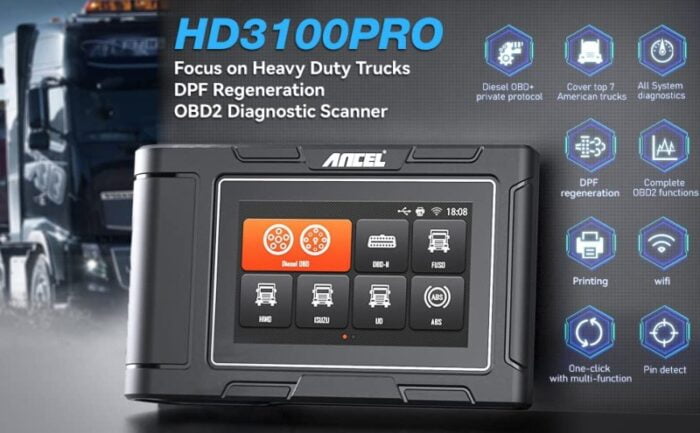

Ancel HD3100 Pro Features:

• All-system diagnosis: For American heavy duty trucks, Namely: Engine, transmission, body, chassis, ABS, SRS, SAS, ESP, TPMS, EPB, fuel system, light system, etc.. Not only is it handy in solving trouble codes of full-system for diesel trucks comprehensively, eliminating the error codes for the engine system of non-diesel vehicles and light trucks with the complete OBD2 functions.
• DPF Regeneration: Accurate and effective solution common DPF congestion of diesel trucks. Compatible with diesel trucks which use EGR and SCR, two rear exhaust emission treatment technologies. Locating the key systems and torque-limiting cause due to unregularly DPF cleaning.
• Support private protocols: Targeting 7 most popular U.S. heavy duty trucks with independent menus, including the four main models, Freightliner, Peterbilt, Kenworth and Ford that comply with all standard protocols, and Volvo, Mack, International that apply with private protocols exclusively. Diesel OBD menus is a platform for 12V and 24V US diesel powered trucks and Class 4 to 8 heavy duty trucks that adapt to all standard protocols.
• Upgraded 5″ LCD touch interface: 800*480 high-definition and smooth interface switching make HD3100pro standing out in the truck market. With RAM 1GB and Flash 8GB, the OBDII scanner accommodate fast data reports and model upgrades.
• Print report and Pin Detect: By marking the printed textured paper report, the data can be found and summarized more concisely. Report can G-mail to a trusted partner who can analyze together simultaneously. Pin Detect is used to automatically measure the voltage of the OBD diagnostic interface and determine whether the pin positions of the K line and the CAN line are damaged.
• One-click to multi-function: Upgrading and activating software, capturing real-time data, and reporting difficult operations with one-click. The one-key multi-tasking quick operation is a valuable treasure that most brands do not have except the Ancel.

For heavy duty equipment.

Available OBD functions include: ECU information Read/Clean Code Live Data.

Full system Diagnostics tested includes:

• Power Transmission: Engine, Transmission, Battery/SCR, Construction engine, Hybrid, VCS (Vehicle Computer Simulation), Integrated Control, Integrated Security System, Motor Control.
• Chassis: Anti-lock braking, Wheel Brake Special System, Retarder.
• Body: SAS, SRS, ABS, TPS, Immobilizer Airbag, SWS (Smart Writing System), ASR, EBS, ESCOT, ESP, EPS, AT System, Smoother, HSA/ CFS, BCM, MIMAMORI, Vehicle Interface Module, UDS, Gas Treatment, DCU / BCU, Blocker, Passive entry and start system, Instrument System, Suspension System, Brake System and more.

Available Special functions include:

• DPF regeneration work for Mack, Volvo, International.
• Diesel is more particulate than gasoline, and the particles are more difficult to fully burn, so DPF blockage is a problem that lots of diesel truck drivers experience.
• Most trucks will be equipped with DPF filters to re-burn and decompose carbon particles produced by insufficient diesel combustion.
• DPF device on trucks has the risk of being blocked and needs to be cleaned and regenerated regularly. Otherwise, it will block and lead to torque limitation.
• The emergence of HD3100 Pro successfully solves the risk of DPF blockage for you.

Supported protocols models:

• DPF Regeneration: For International, (Maxxforce), Volvo and Mack.
• With separate menu on the device, support private protocols: For International, HD Volvo, Mack.
• With separate menu on the device: For Freightliner, Kenworth, Peterbilt, Ford.
• Without separate menu on the device. Support full system diagnostic: For Cummins, Detroit, Caterpillar, Paccar.

Standard OBD protocol:

Models of 12V & 24V voltage that are in compliance with the standard protocols. Coverage for most J1587, J1708, and J1939 protocol trucks and most Class 4, to class 8 heavy-duty trucks.

Available functions for models supporting standard OBD protocol: Reading Codes/Erasing Codes/Freeze Frame/Live DataStream/I/M Readiness/On-Board Monitor/O2 Sensor Test/EVAP/Retrieve Vehicle Information/DTC lookup.

• One-click screenshot: View the screenshot in “Data Management” with a one-click screenshot.
• One-click feedback: If you have any diagnosis problem, just feedback ANCEL’s professional technical team and they will provide you with an solution.
• One-click WIFI update: Updating the software with one-click via Wi-Fi, get the latest model’s version and fix bugs of this scanner.
• One-click Activation:
• Updates: Lifetime Free Update via official website: https://www.anceltech.com/

Email Report: Creating and reading your report. E-mail it to partners who can analyze together simultaneously, know your car through communication.

Product High Configuration Hardware:

• CPU Quad-Core ARM Cortex-A7.
• RAM 1GB.
• Flash 8GB.
• Display 5 inches LCD, resolution ratio 800*480.
• WIFI 802.11b/g/n 2.4GHz.
• USB interface Type C interface.
• Diagnose interface DB15 interface.
• Operating voltage DC 10V~36V/3A

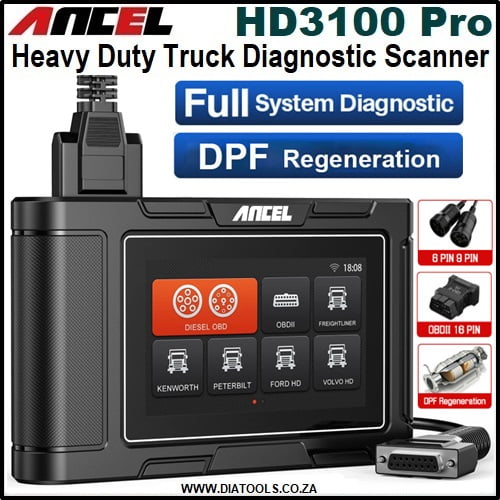

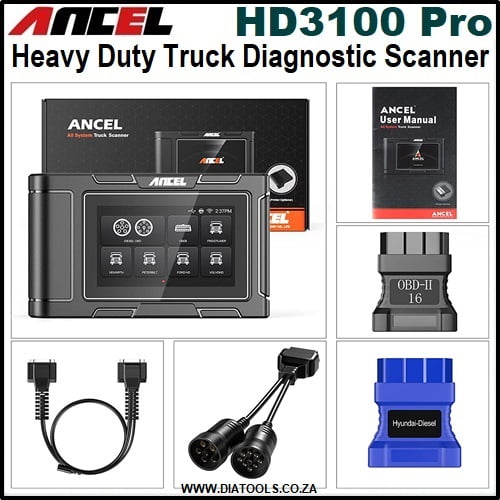

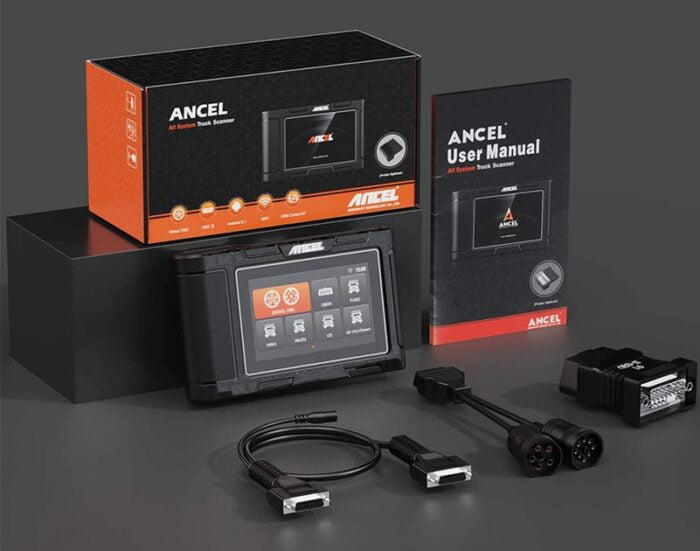

Ancel HD3100 Pro Package List:

• Ancel HD3100 Main Unit.
• 6pin & 9pin Connector.
• 16pin OBD2 Connector.
• User Manual.
• Packing box.
