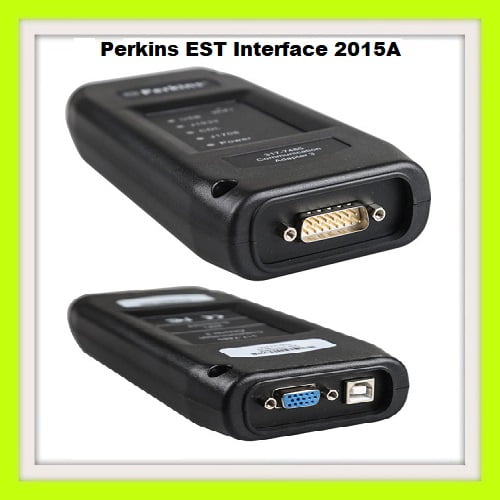

Perkins EST Interface 2015A With WIFI
The Perkins EST Interface 2015A can be used to communicate with Perkins 2300/2800 electronic engines (FG Wilson 300 750 KVA range) and FG Wilson Power wizard control panels. EST interface kit provides the user with an effective tool in diagnosing engine problems and the ability of configuring system parameters.
- Perkins EST detector generator Diagnostic tool
- EST is comprised of a hardware and software PERKINS EST Diagnostic Adapter
Notes: SPI update to 2015A,not EST
Perkins EST Description:
- EST is comprised of a hardware and software (The Integrated Parts and Service System or “TIPSS”) interface kit, which a user can use to communicate with Perkins 2300/2800 electronic engines (FG Wilson 300 750 KVA range) and FG Wilson Power wizard control panels.
- This communication is established via a J1939 data link.
- The EST interface kit provides the user with an effective tool in diagnosing engine problems and the ability of configuring system parameters.
Note: The first activation is free,and the second time need to pay $10.
Perkins EST Interface 2015A enables the user to:
- Override Power wizard level three passwords
- Configure and/or change system parameters
- Display, graph and record logs of parameter status
- Display the status of a group of parameters (temperatures, pressures, etc)
- View and clear active and logged diagnostic codes
- View and clear active and logged event codes
- Display, view or change the current Configuration File or Base level Flash File
- Upload, download and save configuration files
- View a list of irregularities logged by the ECM (engine control module)
- Perform diagnostic tests
- Perform calibrations
- Print reports and diagnostic results.
Why should an FG Wilson dealer invest in the Electronic Service Tool?
- It provides the technician with an essential tool by facilitating the troubleshooting of electronic engines.
- As a matter of opinion, troubleshooting an electronic engine without EST is like troubleshooting an electrical panel without a multi meter Alex Cabrices FGW Latin America & Caribbean Service Ad visor Essential in replacing an ECM on a Perkins 2300/2800 series engine.
- A blank ECM can only be configured using EST.
- Essential in replacing or retrofitting an FG Wilson Power wizard control panel module – the new standard in FG Wilson control systems.
- A blank module can only be configured using EST (installing the base flash file into a blank Power wizard module).
- Enables the dealer to upload, download and save customer configuration files.
- Allows bypassing Power wizard level three passwords.
- Enables dealers to update the software versions of customers Power wizard control panels, as required.
- New software releases can enhance the control panels functionality.
- Enables dealers to install additional Power wizard language files, as required.

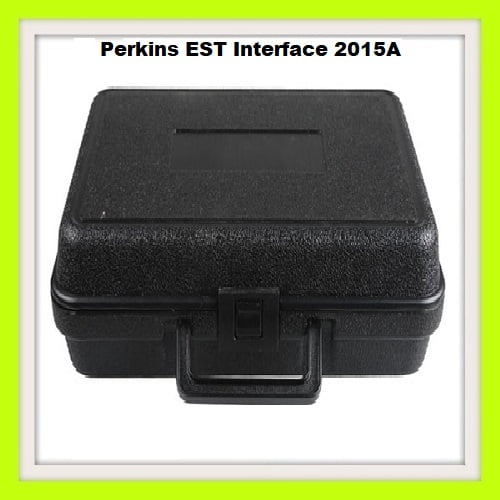

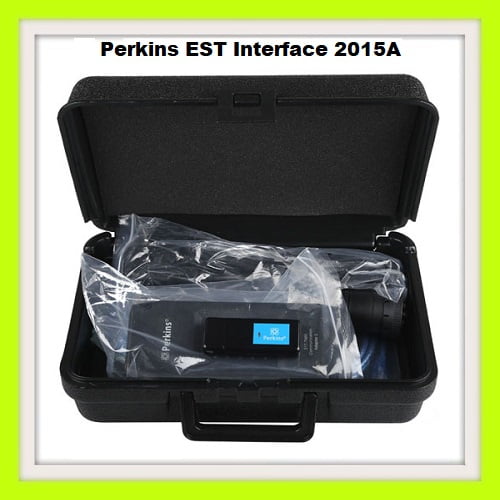

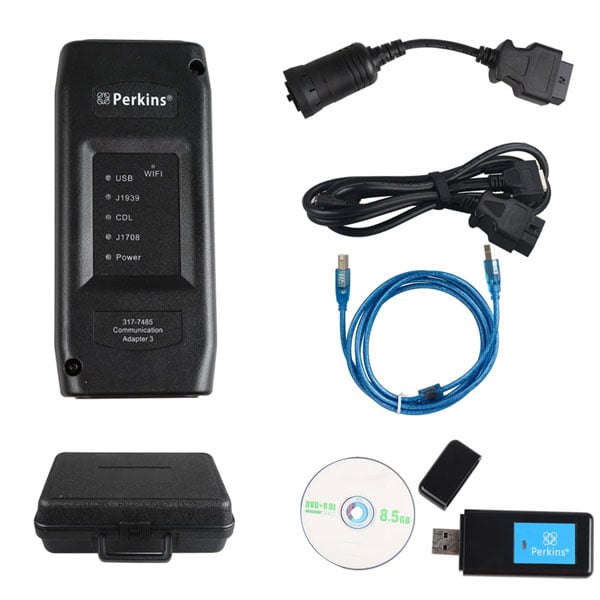

Perkins EST Package list:
- Perkins EST interface
- 9 pin cable
- OBD cable
- usb cable
- Perkins EST software 2015A CD
