Xhorse VVDI Key Tool Max Remote Programmer

R9,999.00

SKU: Xhorse VVDI Key Tool Max Category: Tags: ,

Xhorse VVDI Key Tool Max Remote Programmer Support Bluetooth and WiFi

The Xhorse VVDI Key Tool Max is able to Generate transponder, Transponder Clone, Generate Remote, Remote Clone, OBD matching transponder/remote/smart card. VVDI Key Max tool works with Condor Dolphin XP005,no need mobile phone, just use Key Tool MAX screen to perform all Dolphin functions.

ALL XHORSE PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Xhorse/

Xhorse VVDI Key Tool Max Remote Programmer

VVDI Key Tool Max Highlights:

  1. Contain all VVDI Key Tool and MINI Key Tool functions. The remote/transponder function is the same as the previous and the renew remote same like KeyTool Support Generate transponder and remote etc.
  2. Added IC Copy function. HD LCD screen with clear interface, easy to use and flexibility. And can connect the dolphin to cut the key for the customer.
  3. Enter the car directly using KEY TOOL MAX+MINI OBD for matching. The entire process can be seamlessly connected without switching devices.
  4. KEY TOOL MAX + MINI OBD TOOL can not only match the chip remote control of imported domestic cars, smart card, but also Toyota H chip will be released first on KEY TOOL MAX.

How to get free ID48 96bit function?

Please use VVDI Max to generate Xhorse new remote key 10pcs
after collect points,1 hour later server will open ID48 96bit function free.
And this is the VVDI Key Tool Max User Manual

Please Know: This product is Key Tool MAX only.

VVDI Key Tool Max Setting:

When you turn on the KEY TOOL MAX for the first time, you need to select language region(System default setting is China Standard Time Zone) connect to WIFI login with a registered account, if you don’t have an account.

VVDI Key Tool Max Function:

  1. Generate remote and smart key.
  2. Program and Immo Transponder.
  3. Generate Special Transponder.
  4. Renew Remote.
  5. Recognize and Copy Access-card.
  6. Generate and Copy Garage Remote.
  7. Frequency Detection and Copy Remote.

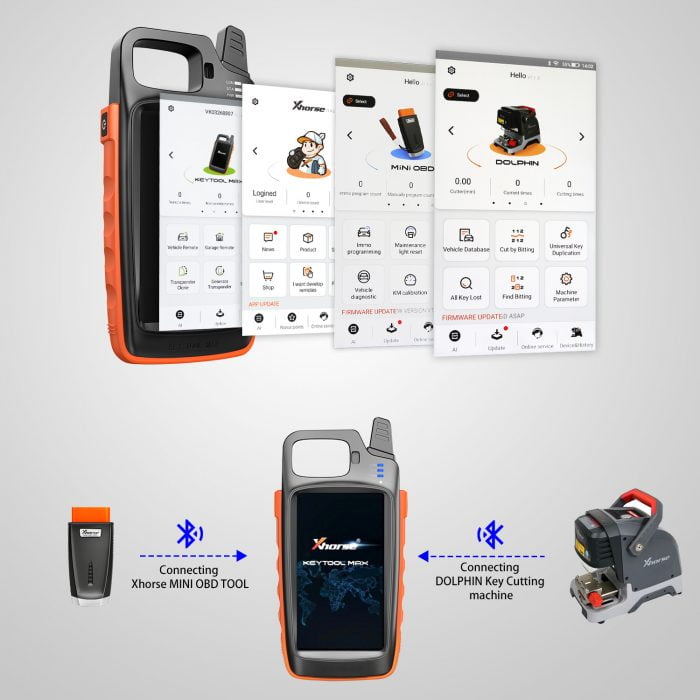

  8. Connect to Xhorse Key Cutting Machine. KEY TOOL MAX connects to Key Cutting Machine by Bluetooth to do cutting operations.
  9. Connect to MINI OBD TOOL: There are 3 ways for KEY TOOL MAX connect to MINI OBD TOOL: (1) USB TYPE-C Cable, (2)WIFI, (3) Bluetooth.

Xhorse VVDI Key Tool Max Remote Programmer Functions

Features of VVDI Key Tool Max :

  1. Support Generate transponder and remote.etc.
  2. Use KEY TOOL MAX to connect the dolphin to cut the key for the customer.
  3. Enter the car directly using KEY TOOL MAX + MINI OBD for matching. The entire process can be seamlessly connected without switching devices.
  4. KEY TOOL MAX + MINI OBD TOOL can not only match the chip remote control of imported domestic cars, smart card, but also Toyota H chip will be released first on KEY TOOL MAX.

PLEASE NOTE: MINI OBD TOOL IS OPTIONAL.

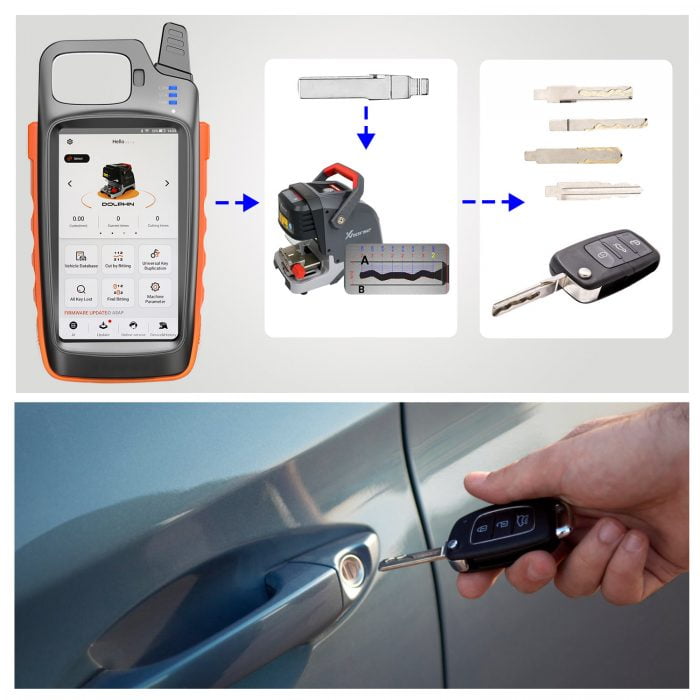

VVDI Max works with Condor dolphin xp005:

KEY TOOL MAX can be connected with Dolphin XP-005 key cutting machine via Bluetooth to be used like operating screen of Dolphin XP-005.
We will update more info once Key Tool Max release please excepting!

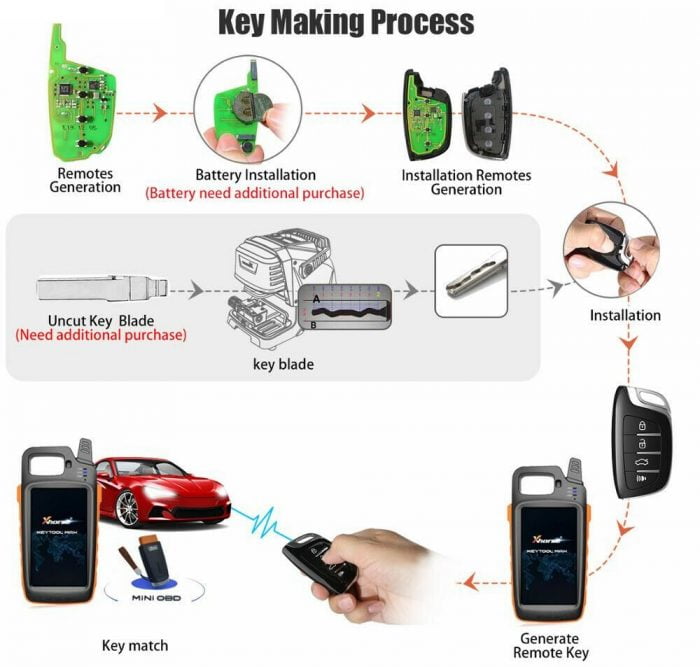

VVDI Key tool Max Key Making Process:

VVDI Key Tool Max:

Generate transponder, Transponder Clone, Generate Remote, Remote Clone, OBD matching transponder/remote/smart card.
The port which is used to connect the programmer is reserved. After the expansion, the chip can be written start data, and the operation of the IC reading data is equivalent to the function of the tango.
KEY TOOL MAX can be connected with Dolphin XP-005 key cutting machine via Bluetooth, to be used like operating screen of Dolphin XP-005.
We will update more info once Key Tool Max is released.

FAQ:
how to activate 96 bit 48 clone for keytool max?

  1. Turn on the machine and log in account.
  2. Turn to keytool max option and use generate 10 pcs xhorse remote and collect the points, you can touch the area of “Bonus Points” for collect points, you can earn the points for first time to use the remote from xhorse.
  3. An hour later after collect points, the 96-bit 48 clone function will be activated, you can check it in your keytool max machine.

The function will activate in one hour after generate and collect the points from 10 pcs remote

Remark: Xhorse has 4 kind of remote, wire remote, wireless remote, super remote, smart key remote.

Generate each kind of remote will be earn different value of points.

  1. Wire remote = 25 points.
  2. Wireless remote = 40 points.
  3. Super remote = 40 points.
  4. Smart key remote = 60 points.

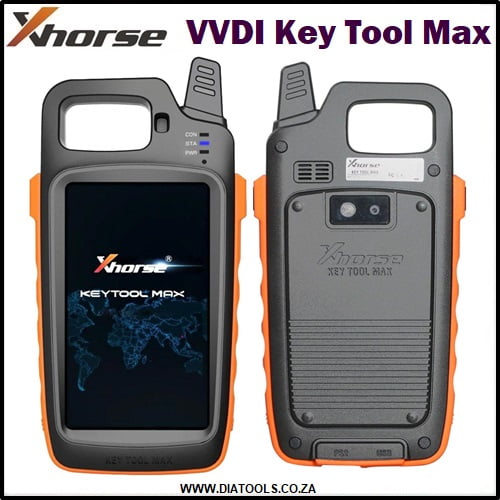

VVDI Key Max Appearance:

Xhorse VVDI Key Tool Max Remote Programmer Layout

VVDI Key Max Parameter

  • Battery capacity: 3375mAh.
  • Battery life>6 hours.
  • Standby time>5 days.
  • Recharging current: 1500mAh.
  • Brightness>400nlts.
  • Screen resolution: 1280*720P.
  • Camera resolution: 800W.

Package List:

  • VVDI Key Tool Max device.
  • USB cable.
  • Remote generate cable.
  • User manual

Xhorse VVDI Key Tool Max Remote Programmer Package List

Brand

XHORSE

XHORSE PRODUCTS
Weight 1 kg
Dimensions 23 × 16 × 5 cm
