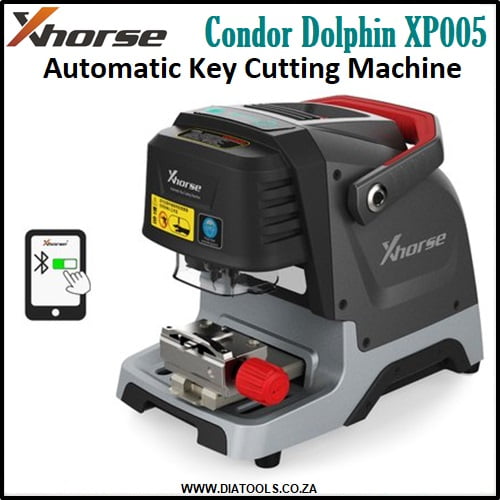

Xhorse Condor Dolphin XP005 Automatic Key Cutting Machine


SKU: Xhorse Condor Dolphin XP005 Category: Tags: , ,

Xhorse Condor Dolphin XP005 Automatic Key Cutting Machine Works with Mobile Phone Application Via Bluetooth With Built-in Battery supports IOS and Android.

The Condor Dolphin XP005 Key Cutting Machine is new key cutting machine from Xhorse brand and it is used on App via Bluetooth support both IOS and Android. The Condor Dolphin has all the capabilities of the Condor XC Mini and works with a phone app and Bluetooth connectivity. The touchscreen is replaced with the mobile phone or tablet interface. It can cut 20 HU66 key blanks front and back, off of one battery pack.

Xhorse Condor XP-005 is a portable machine, with a small volume and light weight, is particularly and carefully designed for locksmiths worldwide.


Xhorse Condor Dolphin XP005 Automatic Key Cutting Machine

Condor Dolphin XP005 Advantages:

  1. Condor Dolphin is the latest portable automatic key cutting machine with a battery integrated inside.
  2. It has all the capabilities of Condor XC Mini.
  3. Dolphin works on mobile phone applications via Bluetooth connection.
  4. M1 / M2 Jaw included in the package. Note M3 / M4 Jaw – Optional purchase.
  5. Online update via Xhorse Update Kit software.
  6.  Xhorse APP Language: French, English, Spanish, Thai, Polish, Italian, Portuguese, Hindi, Hebrew, Korean, Indonesian, Chinese.
  7. Smart phone APP operation.
  8. Built-in Bluetooth function, use smart phone to download an application, easy to use.
  9. Free download Condor Dolphin XP-005 User Manual

Xhorse Condor Dolphin XP005 Automatic Key Cutting Machine

Xhorse Condor Dolphin XP005 Key Cutting Machine Features:

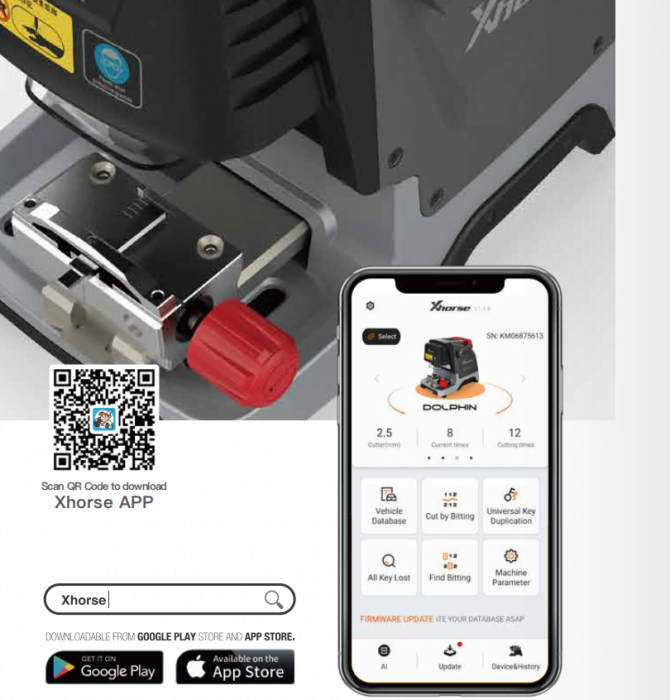

APP smart cellphone operation:
Built-in Bluetooth function, use smart cellphone or tablet to download APP, easy for smart operations.

Portable and convenient:
Compact structure design, perfect space utilization; built-in lithium battery one-time full charge, machine will cut 30-50 keys stable solid handle for safe and portable movement, perfect experience.

Data Richness:
Provide rich vehicle data, blank key data, the best tool of all key lost.

Intelligent Control:
Provide powerful free App, support multi-language, support mobile phone, tablet computer and other intelligent terminal control, easy for operations.

Manufacture Process:
All aluminum body structure, Manufactured by Germany-made DMG CNC machine;
American imported 3-Axis Precision Ball Screw with clearance function, ensures high precision cutting.

Built-in Lithium Battery:
Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions.

Online update:
Free online update software, the latest update information will be released timely, 24 hours support server online update.

Technical service:
One-year warranty, free technical support, online service to provide remote control support

Standard equipped 2 clamps with powerful function:
Standard equipped two clamps M1 and M2, supports Sided, Track, Dimple and Tibbe keys.

Optional M3 clamp and M4 clamp are available, M3 clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 clamp is applicable to single sided house-key.

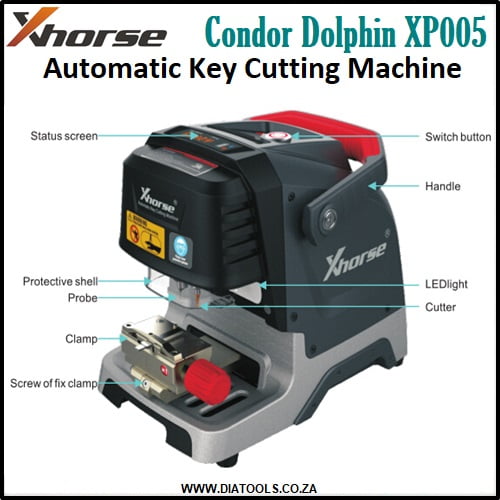

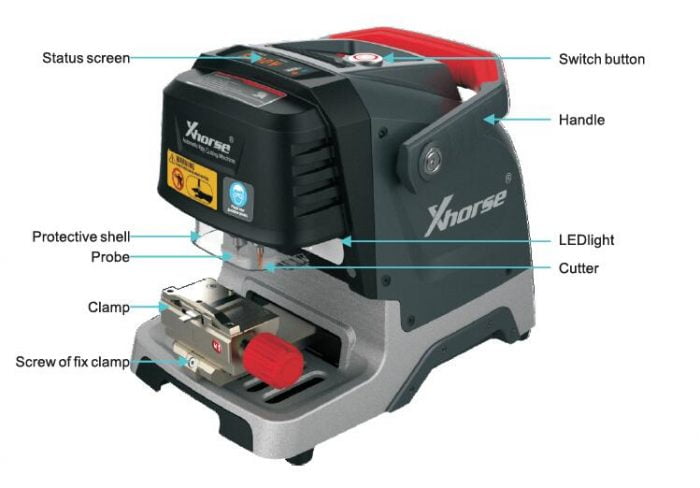

Xhorse Condor Dolphin XP005 Automatic Key Cutting Machine Layout

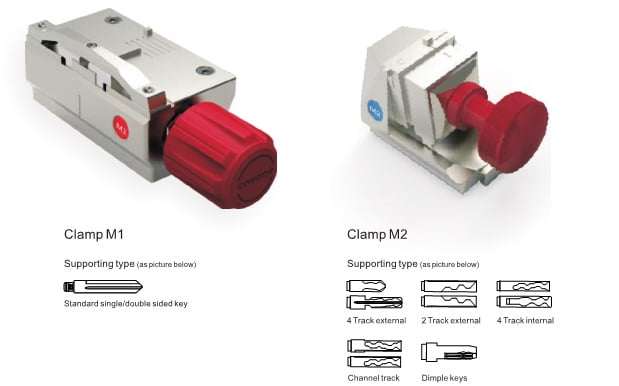

M1 and M2 Clamps:

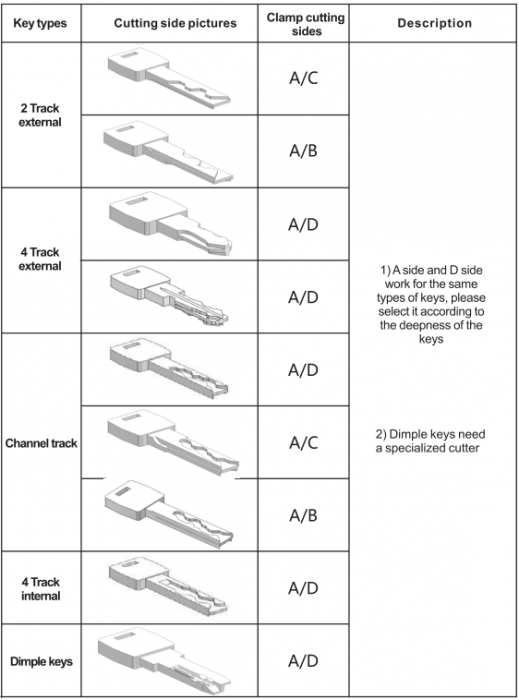

M2 Clamp sided selection Support Keys:

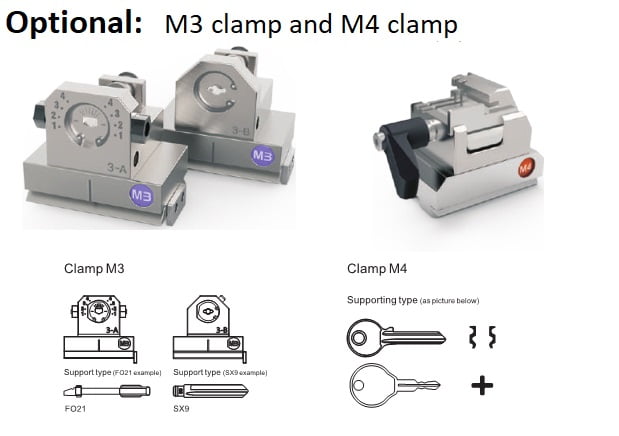

M3 clamp and M4 clamp are available Optional:

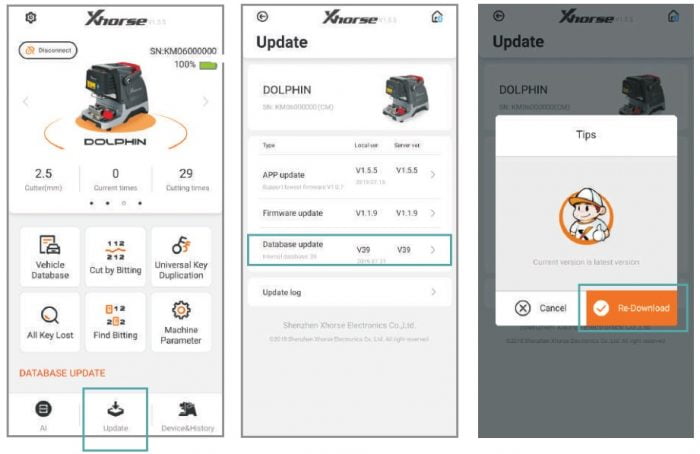

How to Update Condor Dolphin XP005 Database?

  1. Enter Dolphin XP-005 main interface and click “Update”
  2. Click “Database update”
  3. If you find a new version, click “Update” and download the new version.
    Click on “OK” after download database success
    If cellphone connected by mobile internet data, a prompt saying that download maybe costs data fee, recommend downloading by WIFI.

Xhorse Condor Dolphin XP005 Automatic Key Cutting Machine Update

Condor Dolphin Key Cutting Machine Parameters:

  • Working Temperature:                  -10~50℃.
  • Input Voltage:                                12-24V.
  • Battery Capacity:                            64.75wh.
  • Cutting Power:                               100W.
  • Standby Power:                              15W.
  • Motor Rotation Speed:                   10000-13000RPM.
  • Rated Torque:                                 0.15 Nm.
  • USB Port:                                         USB2.0.
  • Machine Dimension:                       315*218*270mm.
  • Package Dimension:                       510*315*345mm.
  • Net Weight:                                    15kg.
  • Gross Weight:                                 18kg.

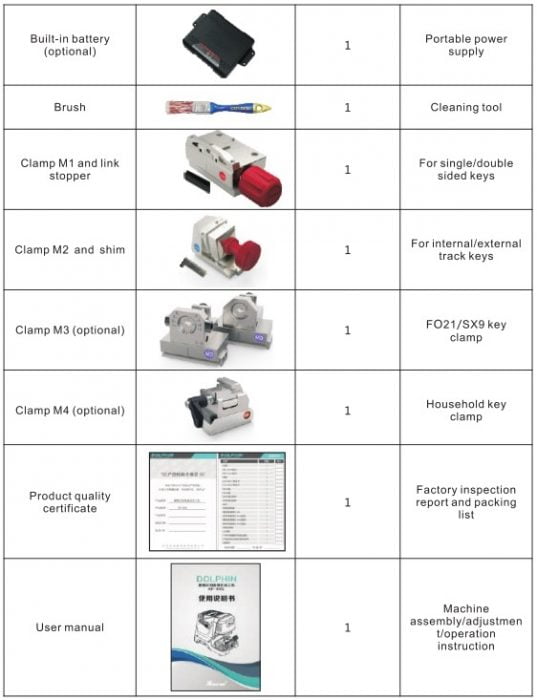

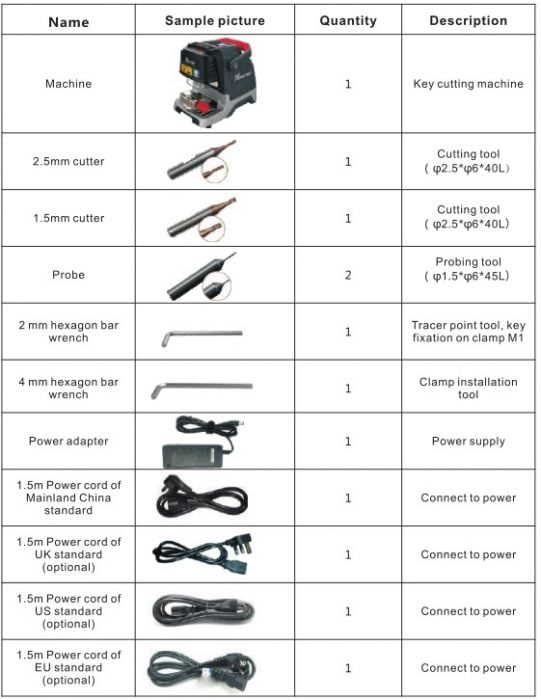

Condor Dolphin XP005 Package List:

  • Condor Dolphin Main Machine.
  • 2.5mm cutter x 1.
  • 1.5mm cutter x 1.
  • 2pc x Probe.
  • 1pc x 2mm Hexagon bar wrench.
  • 1pc x 4mm Hexagon bar wrench.
  • Power Adapter
  • Brush x 1.
  • 1pc x Clamp M1 & Link Stopper.
  • 1pc x Clamp M2 & shim.
  • Product Quality Certificate.
  • User Manual.

Please Note: Clamp M3 and M4 is Optional

Xhorse Condor Dolphin XP005 Automatic Key Cutting Machine Package List 1




Weight 18 kg
Dimensions 52 × 36 × 35 cm
