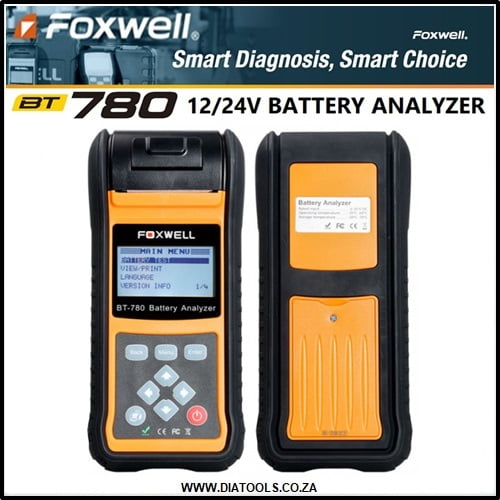

Foxwell BT780 Battery Analyzer with Built-in Thermal Printer

R3,899.00 R3,399.00

Foxwell BT780 Battery Analyzer with Built-in Thermal Printer

The newly developed Foxwell BT780 Battery Analyzer from Foxwell aims to test start-stop AGM and EFB batteries. And it is developed to test 12V regular flooded, AGM flat plate, AGM spiral and gel batteries and 12V & 24V starting and charging system.

ALL FOXWELL PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Foxwell/

Foxwell BT780 Battery Analyzer with Built-in Thermal Printer

Foxwell BT780 Battery Analyzer

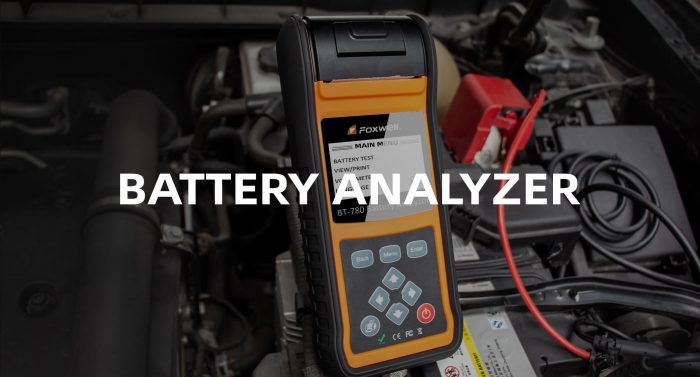

The Foxwell BT780 Battery Analyzer is an advanced car battery analyzer, which gives a comprehensive assessment of the health and charge level of your 12 Volt car battery and 12 / 24 Volt charging system.

The BT780 will report:

  • Measured voltage.
  • Measured CCA. (Cold Cranking Amps)
  • Rated CCA.

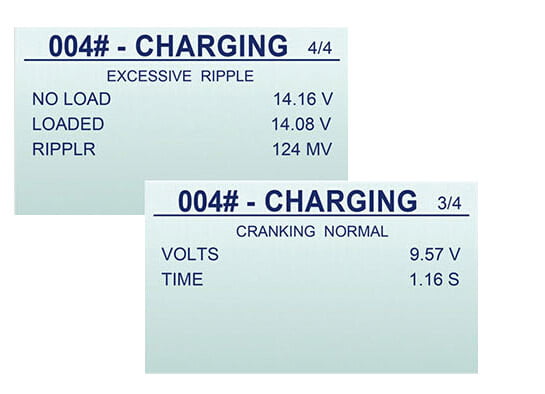

  • Charging ripple.
  • Cranking voltage. (starting engine voltage)
  • Cranking time.
  • Charging voltage. (no load)
  • Charging voltage. (loaded)

Foxwell BT780 Battery Analyzer Tests:

  1. To test start-stop AGM and EFB batteries.

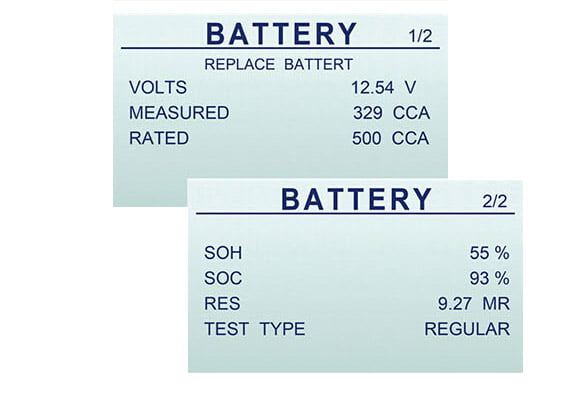

  2. Internal resistance, SOC and SOH and test result display makes technicians easier and faster to judge the battery status.
  3. Ripple voltage test allows the technicians to check the output voltage of alternator quickly.
  4. Built-in thermal printer makes it possible for the technicians to print test results at anytime and anywhere.

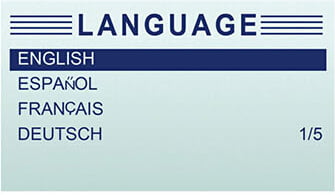

  5. More language available: Chinese, Dutch, English, French, German, Hungarian, Japanese, Korean, Polish, Portuguese, Russian and Spanish.

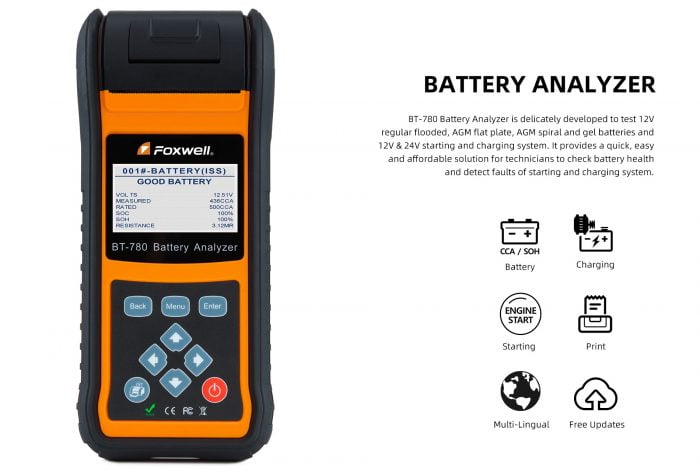

Foxwell BT780 Battery Analyzer with Built-in Thermal Printer 1 Foxwell BT780 Battery Analyzer with Built-in Thermal Printer Functions

Foxwell BT-780 Battery Analyzer Features and benefits:

  • Dedicatedly developed to test start-stop AGM and EFB batteries
  • Advanced conductance test technology makes test more convenient and accurate
  • Ripple voltage test allows the technicians to check the output voltage of alternator quickly
  • Built-in thermal printer makes it possible for the technicians to print test results at anytime and anywhere
  • SOC and SOH test result display makes technicians easier and faster to judge the battery status
  • Equipped with 0-1000A AC and DC current clamp(optional)
  • Replaceable test lines
  • Tests multiple battery types- regular flooded, AGM flat plate, AGM spiral and gel, start-stop AGM and EFP batteries
  • Tests multiple rating systems- CCA, BCI, CA, MCA, JIS, DIN, IEC, EN,,SAE, GB
  • Quick and accurate test result display in just 3 seconds
  • Applicable for 12V battery system and 12V& 24V starting and charging system
  • Advanced starter/alternator test
  • Quick starter analysis without disabling the ignition
  • Does not emit light, heat or spark, or discharge battery- keeps operation safe for all levels of users
  • Multilingual menu and test results-Chinese, Dutch, English, French, German, Hungarian, Japanese, Korean, Polish, Portuguese, Russian and Spanish

BT780 Battery Analyzer Function and top features:

  1. BT780 Battery Analyzer allows you to test Start-stop batteries and general automotive batteries.

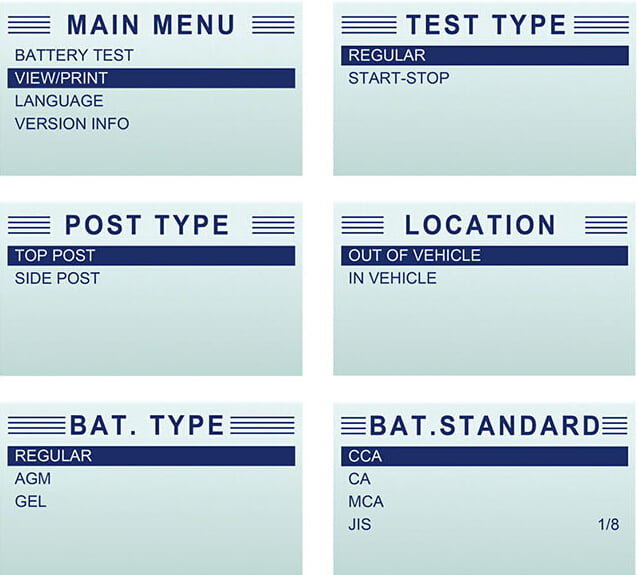

  2. Selection for application/test type/ battery location/ post type/battery type/ battery standard to ensure more accurate testing results
  3. Advanced conductance test technology makes test more convenient and accurate.
  4. Internal Resistance, SOC and SOH and test result display makes technicians easier and faster to judge the battery status.
  5. Ripple voltage test allows the technicians to check the output voltage of alternator quickly.
  6. Built-in thermal printer makes it possible for the technicians to print test results at anytime and anywhere.
    Foxwell BT780 Battery Analyzer with Built-in Thermal Printer Main Unit
  7. Equipped with 0-1000A AC and DC current clamp (Optional)
  8. Applicable for 12V & 24V starting and charging system.
  9. Multilingual menu and test results-Chinese, Dutch, English, French, German, Hungarian, Japanese, Korean, Polish, Portuguese, Russian and Spanish

Specifications:

Item Range Tolerance
Voltage measuring 6V to 32V N/A
Battery type Flooded, AGM, GEL, start-stop N/A
Battery rating 100- 2000CCA ±(3%+5)CCA
Standard support CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SEA, GB N/A
Net Weight 0.8KG N/A
Dimension 90*240*45 MM N/A

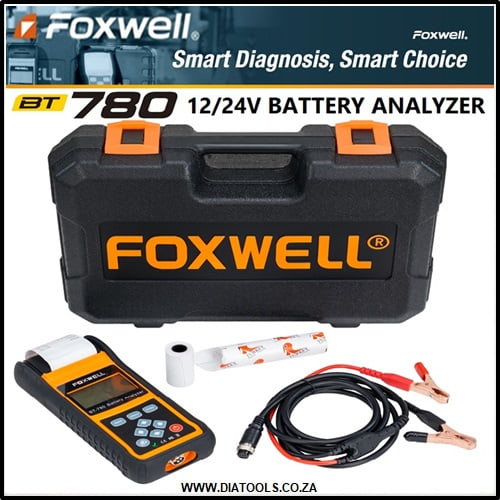

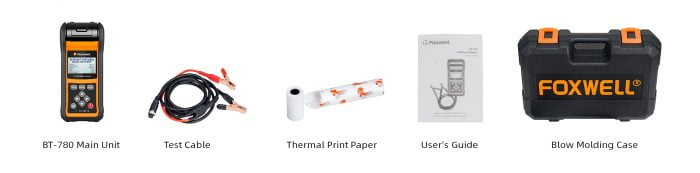

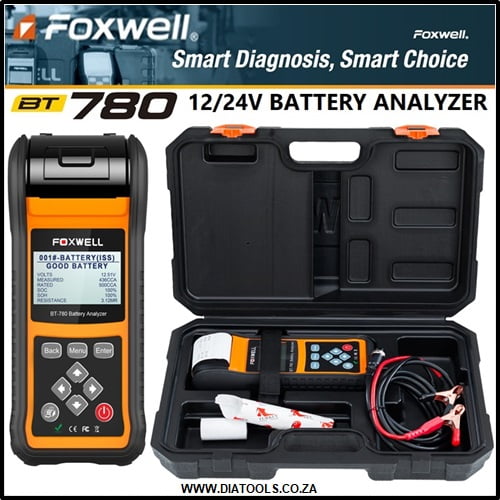

Foxwell BT780 Battery Analyzer with Built-in Thermal Printer Package List

Brand

FOXWELL

FOXWELL PRODUCTS
Weight 2.5 kg
Dimensions 41 × 30 × 12 cm
