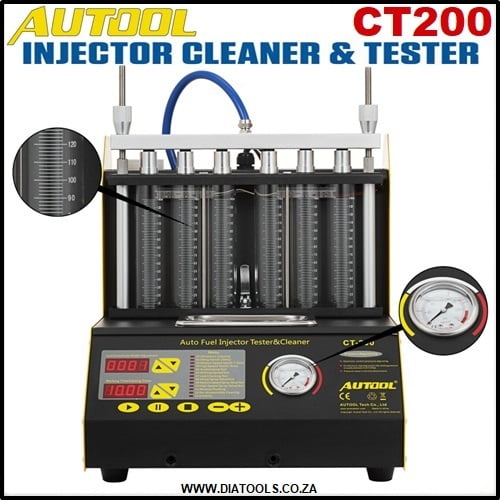

Autool CT200 Ultrasonic 6 Cylinder Fuel Injector Cleaner & Tester For Cars and Motorcycle
The Autool CT200 is an injector cleaner and tester machine that combines ultrasonic cleaning technology with oil pressure control cleaning and inspection technology. It can simulate various working conditions of the engine to clean and test the injectors. It can support 6-cylinder injectors at the same time, saving time, and efficiency. Also supports testing of fuel injectors for most cars and motorcycles in the market. Since the launch of the AUTOOL CT200 model has been widely received and approved by professional auto repair technicians.
ALL AUTOOL PRODUCT LINK: https://www.diatools.co.za/brand/autool/

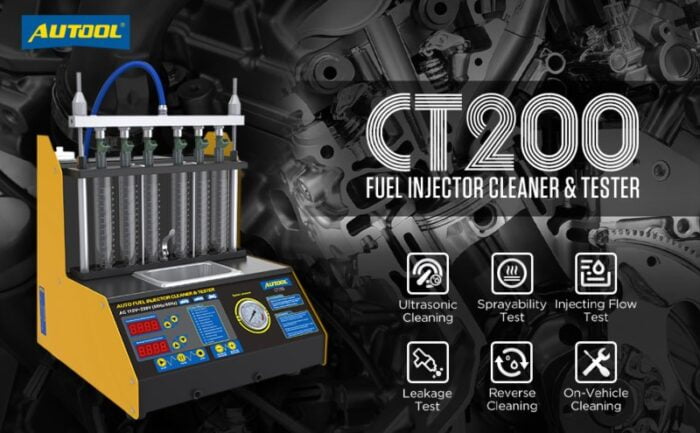

Featuring 12 injector-specific functions:

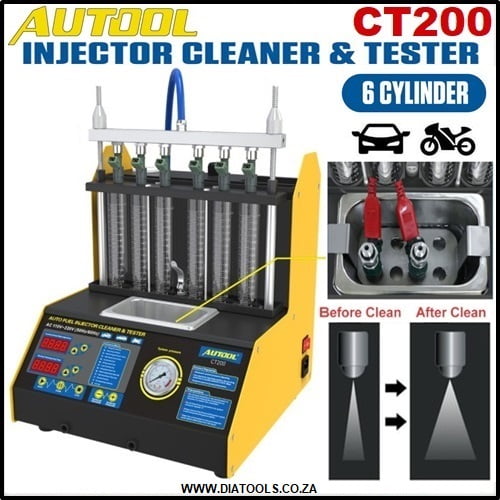

- Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.
- Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.
- Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.
- High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.
- Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.
- Shift speed test: Simulate the shifting state of the car and test the working performance of the fuel injector.
- Leakage test: Test the sealing condition of the fuel injector.
- Idle speed spray ability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.
- Medium speed spray ability test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector.
- High-speed spray ability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.
- Reverse flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector).
- No-disassembly cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, which requires special adapters.
Pressure gauge:
It allows you to observe the pressure during test to avoid damage to machine or injectors caused by excessive pressure.
Test level gauge:
It allows you to observe the amount of test fluid directly and clearly.

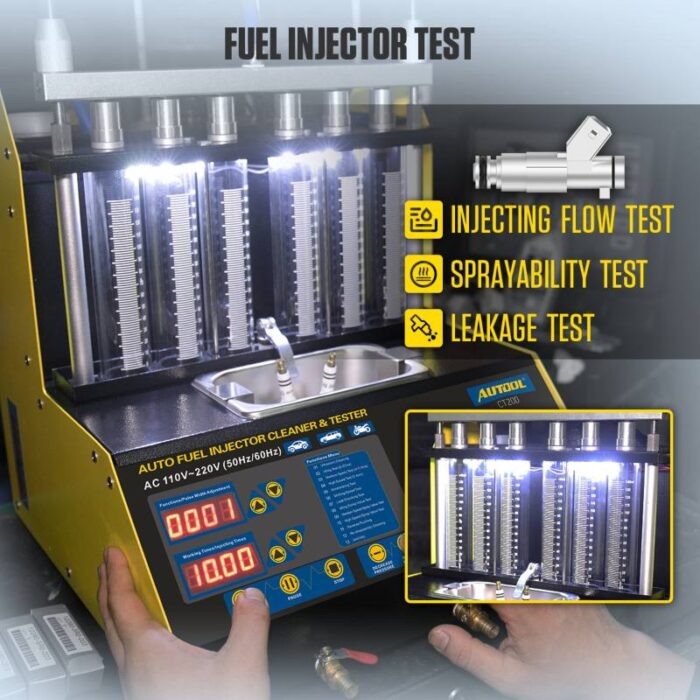

Full inspection of injectors:
- Uniformity test: To test the uniformity of injecting amount of each injector.
- Spray ability test: To monitor the spraying status of each injector with the help of backlight.
- Leakage test: To test the sealing and dribbling conditions of injectors under high pressure.
- Injecting flow test: To check the injecting amount of the injector of specific injection condition (eg. same time and number of times).
How the CT200 cleaning machine work:
- Clean injector’s outside with gasoline or cleaning liquid before open machine.
- Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.
- Turn on ultrasonic system, pulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors.
- Fixed injectors on main machine.
- Testing injectors for resistance, shorts, and current draw.
- Performing leak test, spray pattern, and flow rate testing on flow bench.
- The injectors are now returned to the flow bench for retesting of all functions.
Autool CT200 Features:
- LED display.
- Ultrasonic cleaning trough built-in.
- Tool trolley make it more conveniently to operate.
- Equip with high quality SIEMENS pump, make it endurable.
- Discharging fluid more quickly, add 2 value in front of machine.
Autool CT200 Working Condition:
- Power supply: AC220V/AC110V±10%.
- Frequency: 50HZ±0.5.
- Humidity: ＜85%.
- Environment Temperature: 0℃～＋40℃.
- Magnetic Field: ＜400Ａ/m.
- Spark and fire is prohibited.
Specifications:
- Fuel Tank Capacity: 2000ml.
- Capacity of Measuring Cylinder: 125ml.
- Speed Range: 0~7500 rpm.
- Injecting Times: 0~9900 Step: 100ms.
- PWM Pulse: 0~20.0 ms Step: 0.1 ms.
- System Pressure: 0~0.6Mpa (adjustable).
- Time: 0~20 minute (adjustable).
- Power of Ultrasonic Cleaning: 70W.
- Frequency of Ultrasonic Cleaning: 28 KHZ±0.5 KHZ.

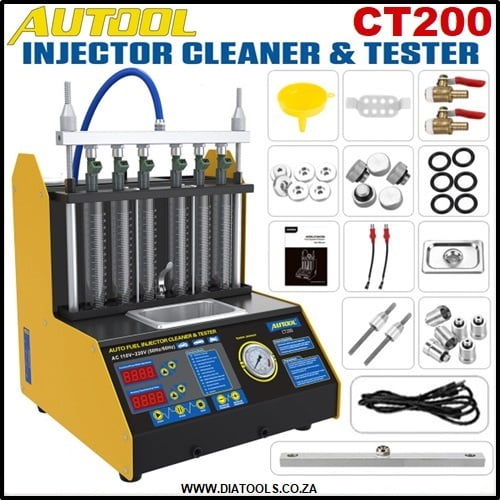

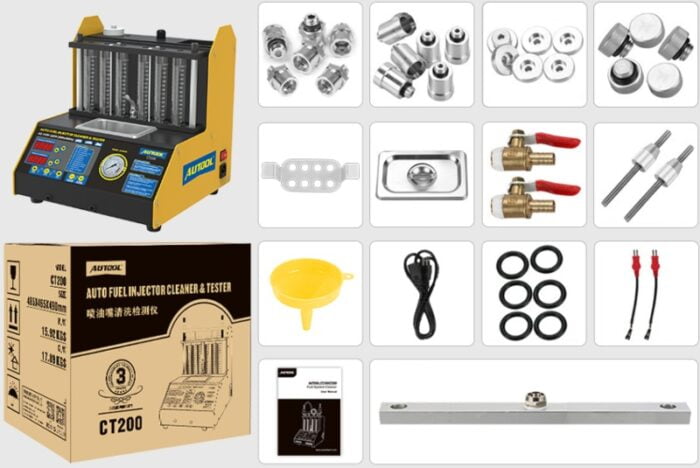

Autool CT200 Packing list:
- Autool CT200 Fuel Injector Cleaner Tester Main Unit.
- Funnel (for adding test fluid).
- Ultrasonic Cleaning Bracket (for placing the injectors during cleaning).
- 2pcs Drain Valves (For recovering the cleaning and test fluid).
- Fixing rods 2pcs (For fixing the oil separator).
- 2pcs Fixing Nuts (For fixing the oil separator).
- 6pcs Reverse flush connectors φ15.8mm (for connecting the bottom of the injector and the oil separator hole).
- Conical top inlet connectors φ10.5mm&13.6mm 6pcs (for connecting the top of the injector and the oil separator hole).
- 6pcs Adapter cables (For transferring the pulse signal line connector, instead of connecting the injector signal input pin).
- Power Cable (for connecting power supply).
- Oil Separator (Distribution device for outputting pressurized test fluid to the injectors).
- 6pcs Special injector gaskets (for auxiliary installation of special fuel injectors).
- 5pcs Special plugs for oil separator (used to block the holes on the oil separator).
- Ultrasonic Cleaning Cover (for keeping the cleaning bath clean).
- User Manual (Instructions).
