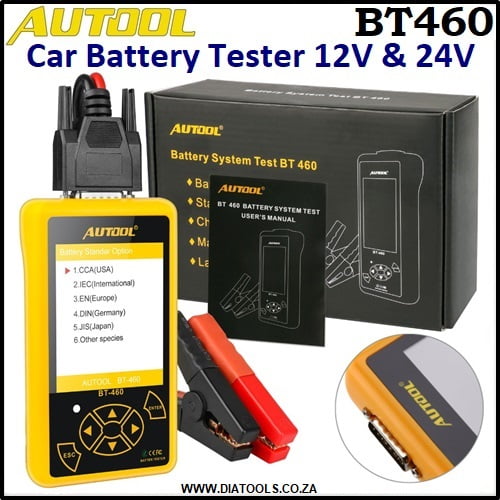

Autool BT460 Car Battery Tester for 12V and 24V


Autool BT460 Car Battery Tester for 12V and 24V

The Autool BT460 Car Battery Load Tester is dedicatedly developed to test 12V/24V regular flooded, automotive lead-acid batteries, AGM flat plate, AGM spiral, GEL and EFB batteries. Applying the advanced conductance testing technology, BT460 can give you accurate testing results in seconds. Fit in your glove box, It provides a handy device for automobile factory, garage, auto battery manufacturer, Pros and DIYers with a quick, simple and cost-effective solution.

ALL AUTOOL PRODUCT LINK: Https://Www.Diatools.Co.Za/Brand/Autool/

Autool BT460 Car Battery Tester for 12V and 24V

Autool BT460 12V Car Battery Load Tester Features:

  • Battery, Cranking, Charging & Max Load Test: Not only is it convenient for car owners to use it for daily servicing, but it can also help pros test the voltage of the battery under loading through a load test. With this battery tester, you can check the overall health of the battery and run a complete system charging test.
  • Professional & Safety: Test standards include most battery standards in the world, CCA IEC EN DIN SAE JIS and OTHER SPECIES, which covers from 30- 1700 CCA. With Polarity Reverse Protection, both the battery and device won’t be damaged.
  • HD Color Screen: Unlike most monochrome LCD screens on the market, the AUTOOL BT460 battery load tester is equipped with a colour HD screen that is easy to read even in direct sunlight.
  • Multi-Language Support: 12 Languages are available. Available in English, Spanish, German, French, Russian, Portuguese, Chinese, Turkish, Russian, Japanese, Thai and Korean.
  • 3-Year Warranty: For damage caused by non-human factors, we promise to resend parts for free within 3 years.

Autool BT460 Car Battery Tester for 12V and 24V Functions

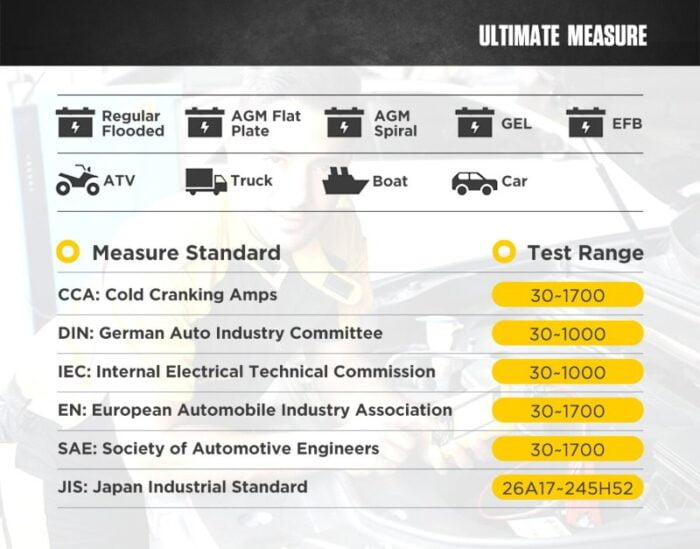

Measure Standards:

  • CCA: Cold Cranking Amps 30-1700.
  • DIN: German Auto Industry Committee 30-1000.
  • IEC: Internal Electrical Technical Commission 30-1000.
  • EN: European Automobile Industry Association 30-1700.
  • SAE: Society of Automotive Engineers 30-1700.
  • JIS: Japan Industry Standard 26A17-245H52.

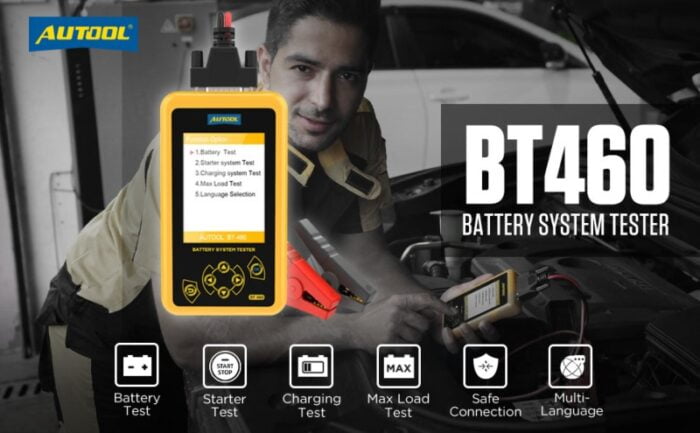

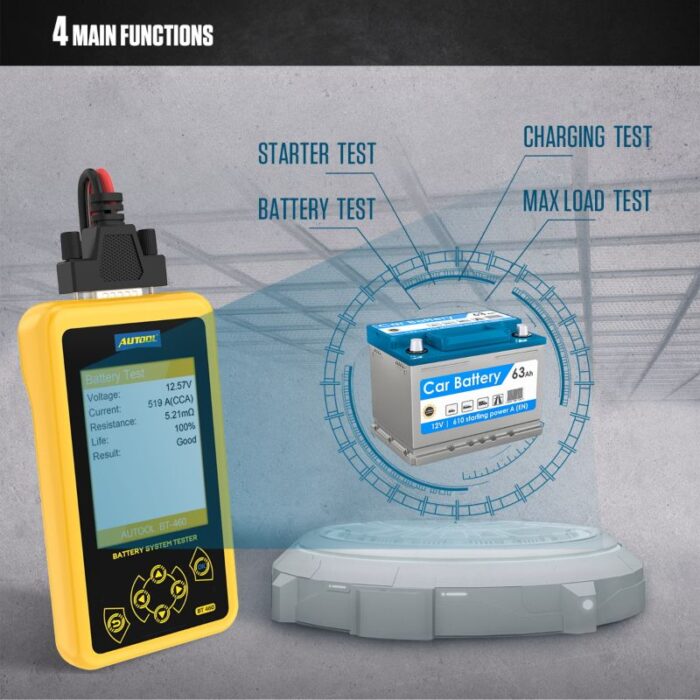

Four Functions Test Operation Steps of AUTOOL BT460:

  • Step 1. Connect The 12V Battery, Red Clips To Positive Pole And Black Clips To Negative Pole.
  • Step 2. Battery Test: Firstly, Select The Type Of Battery To Be Tested, Then The Test Criteria And The Test Range and Have The Results Within Few Seconds.
  • Step 3. Cranking Test: After Selecting The Cranking Test Function, Follow The Prompts To Start The Engine. Test Completed.
  • Step 4. Charging Test: After Entering The Charging Test Function, Follow The Prompt To Increase The Speed To 2500 RPM For 5 Seconds, Then Press OK. Test Completed.
  • Step 5. Max Load Test: Select The Max Load Test Function, Turn On The Car’s Electrical Appliances, Start The Car Engine And Click OK.


  • Brand Name: AUTOOL.
  • Origin: CN(Origin)
  • Certification: CE.
  • Item Type: 12V & 24V car battery tester.
  • Function: Car Battery Analyzer.
  • Feature: Multi-Languages.

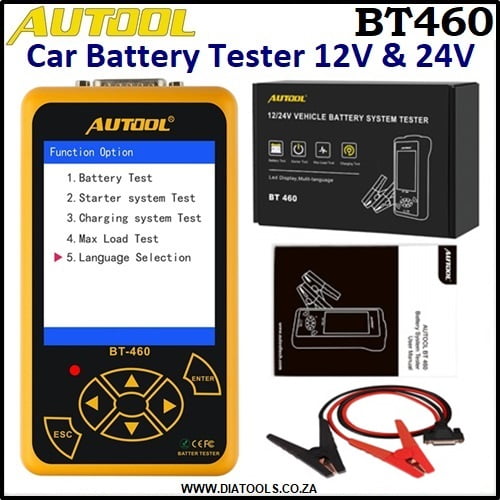

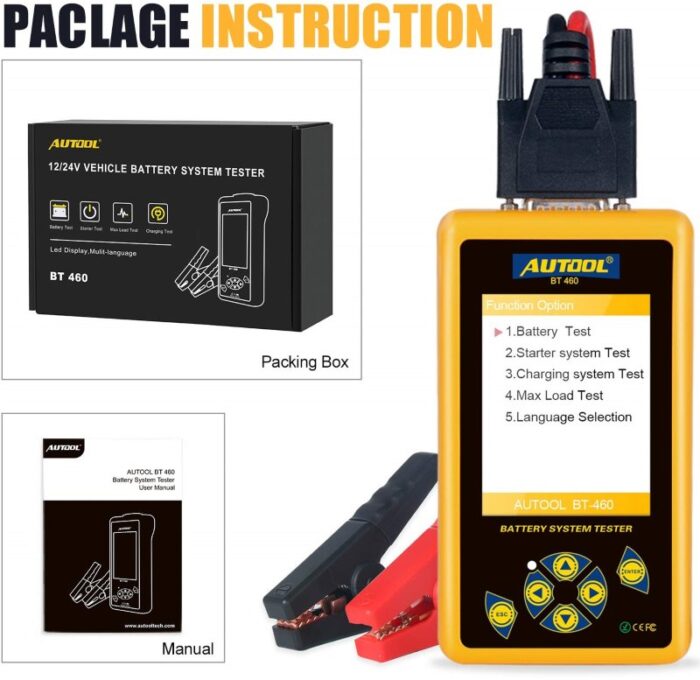

Autool BT460 Package List:

  • Autool BT460 Car Battery Load Tester.
  • 2pcs * Full copper core kelvin clip.
  • User Manual.

Autool BT460 Car Battery Tester for 12V and 24V Package List

Weight1 kg
Dimensions20 × 13 × 9 cm
