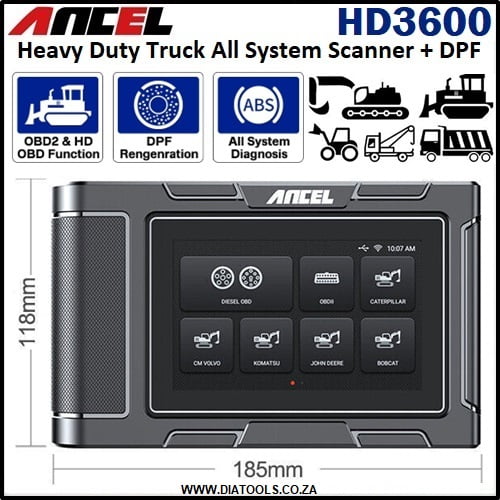

Ancel HD3600 Heavy Duty Truck Full System Scanner With DPF


Ancel HD3600 Heavy Duty Truck OE-level Full System Diagnostic Tool with DPF Functions

The Ancel HD3600 Heavy Duty Scanner supports all major construction machinery vehicle models that conform to standard protocols namely: SAE J1939, SAE J1708, SAE J1850 PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4 and ISO 27145-4 and CDL private protocol. OE-level diagnosis for Caterpillar, Komatsu, John Deere, Volvo, Hitachi, Bobcat, Yanmer and Case. Supports standard diesel OBD protocols including the latest J27145.

ALL ANCEL PRODUCTS: Https://Www.Diatools.Co.Za/Brand/Ancel/

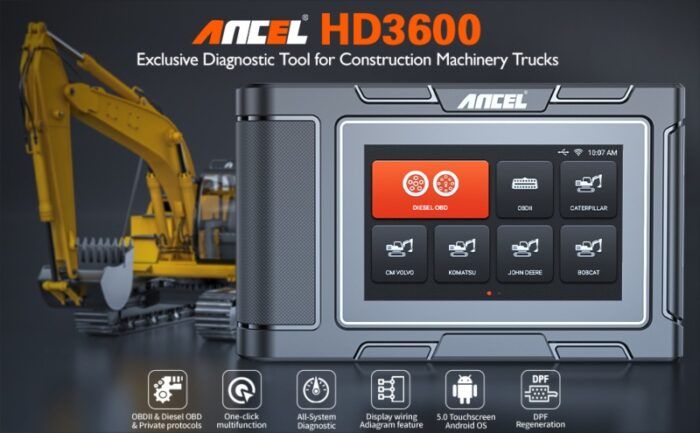

Ancel HD3600 Heavy Duty Truck Full System Scanner

Why need to force DPF regeneration?

Regeneration or regen of the DPF filter, is the process that burns the soot accumulation that is inside the DPF filter. An unmaintained DPF runs your vehicles unnecessarily hard and less efficient.

Perform DPF regeneration in the following cases:

  • Replace the exhaust backpressure sensor.
  • Removed or replace the PM trap.
  • The fuel additive nozzle is removed or replaced.
  • The catalytic oxidizer is removed or replaced.
  • The DPF regeneration MIL is turned on and maintenance is performed.
  • Replace the DPF regeneration control module.

Why to choose HD3600 to perform DPF regeneration yourself?

  • Make sure your construction machinery vehicle has enough power again (For Caterpillar, Komatsu, John Deere, Volvo, Bobcat)
  • If the diesel filter is clogged, the vehicle will not be able to fully use the fuel, resulting in insufficient mileage. It is very important to clean the DPF filter regularly, which only HD3600 can do.
  • Other benefits of cleaning your DPF filters: Better MPG, better gas response, less frequent regenerations (passive), longer DPF life, less downtime…

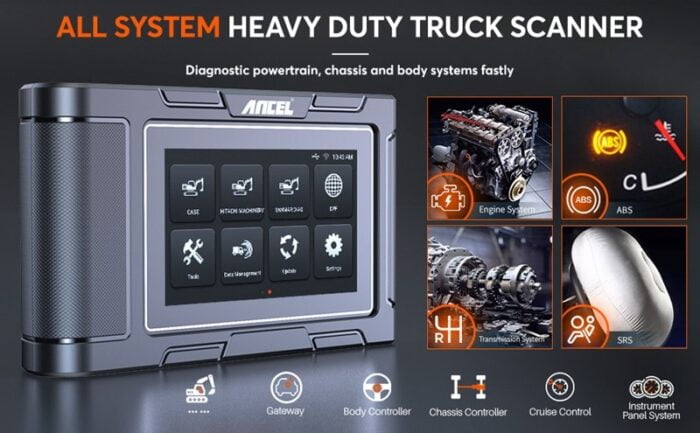

Ancel HD3600 OEM-Level Full Systems Diagnostics:

Ancel HD3600 diesel scanner support full system scanning of construction machinery vehicles conforming to standard diesel OBD protocol, namely: engine, ABS/EBS, transmission, body controller, chassis controller, instrument panel system, cruise control, gateway, etc. Supports all system diagnostics for heavy duty trucks. Meet the diagnostic needs of a variety of models!

OBD-Level Diagnostic on Engine:

  • Retrieve ECU Information: Read and display the control system module information detected from ECU.
  • Read Fault Codes: Read the fault code information retrieved from the vehicle system module.
  • Erase Fault Codes: Clear the fault code and freeze frame data retrieved from the vehicle system module.
  • Review Live Data: Read and display the real-time operation parameters of the current system module.
  1. Graphic: View the real-time operating parameters of the unit in the data stream waveform graph mode, and select [List] to return to the numerical display state.
  2. Compare: Compare the data steam. Select a saved data file of the same vehicle type in the pop-up dialog box, and select [OK] to return, and then an additional column “CMPR values” in the data stream interface.
  3. Save: Save the current data stream (for subsequent data stream comparison)

Ancel HD3600 Heavy Duty Truck Full System Scanner With DPF

Superior compatibility for 12v & 24v construction machinery vehicles and heavy-duty trucks.

  • Construction, marine, agricultural, and other construction equipment and machinery that meet standard diesel OBD protocols.
  • For Excavators, dozers, scrapers, loaders, graders, mixer pumps, tower cranes, wheeled cranes, crawler cranes, construction hoists, winches, tower cranes, concrete mixers, concrete dump trucks, small equipment namely: steel bar cutters, steel bar straighteners, hand-pushed concrete dump trucks, chain transfer trucks, etc.
  • Semi-trucks and heavy-duty trucks that meet HD OBD standard protocols.
  • Includes delivery trucks, school buses, garbage trucks, long heavy-duty trucks, buses, roll-ons, municipal vehicles, refrigerated and conventional trucks, and all other heavy-duty vehicles.
  • Ordinary passenger cars, SUV pickups, light-duty trucks that comply with OBDII protocols.

Unlock more advanced features:

  1. One-click activate: Let you easily start your first construction machinery vehicle diagnosis.
  2. One-click upgrade: Click on the “Upgrade” menu to automatically check for the latest updates.
  3. Updates: Lifetime Free Update via official website:
  4. One-click feedback: You will get reliable and professional product support from ANCEL’s after-sales team through this function.
  5. One-click printing: Print diagnostic report data namely: vehicle information, fault codes and data streams and software interfaces. Print Report using an optional printer.


  • CPU: Quad-Core ARM Cortex-A7.
  • RAM: 1GB.
  • Storage: 8GB(Flash)
  • Display: 5 inches LCD, resolution ratio 800*480.
  • WIFI: 802.11b/g/n 2.4GHz.
  • USB interface: Type C interface.
  • Diagnose interface: DB15 interface.
  • Operating voltage: DC 10V~24V/3A.
  • Operating temperature: -20℃~60℃.

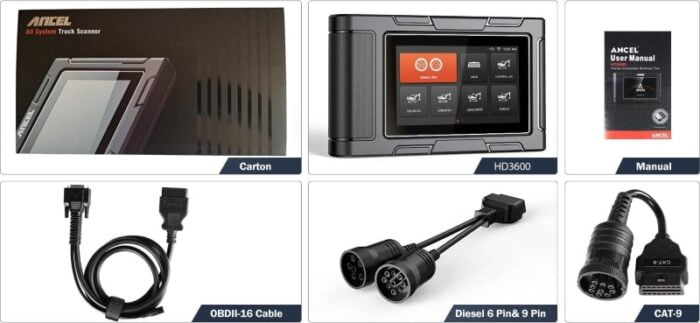

Ancel HD3600 Package List:

  • D3600 Main Unit.
  • 1.5m OBDII Diagnostic Cable.
  • 6/9 pin Diesel OBD cable.
  • CAT-9 Connector
  • Storage Box.
  • User’s Manual.

Ancel HD3600 Heavy Duty Truck Full System Scanner Package List

Weight2 kg
Dimensions30 × 20 × 15 cm
