Xhorse Condor XC-Mini Plus Key Cutting Machine Built in Database


SKU: iKeycutter CONDOR XC MINI V5.1.1 Category: Tags: ,

Original Xhorse Condor XC-Mini Plus (Condor XC-MINI II) Automotive Key Cutting Machine Built in Database

The Xhorse Condor XC-Mini Plus Key Cutting Machine built-in actuate database,detailed parameters, schematic sample depth key tool available for users, Support More Than 60 Global Brand,2000 car Models and 20000.

Tips on using iKeycutter CONDOR XC MINI:

  1. If you buy XHorse CONDOR XC-MINI plus key cutting machine with VVDI BGA Tool together, you not only save much money, and we can offer you one calculation service for free every day.
  2. Condor XC Mini Key Cutting Machine support Install code function (if you need, you can pay 100USD, we can offer you Install code certificate of authenticity (The code valid period is 1 year)

ALL XHORSE PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Xhorse/

Xhorse Condor XC-Mini Plus Key Cutting Machine

Condor XC-MiNi Key Cutter highlights:

  1. English, Portuguese, Spanish, French, Germany, Russian, Czech, Arabic, Turkish, Dutch, Polish, Bulgarian, Norway, Slovakia, Italian, Chinese.
  2. Software supports online-update lifetime for free
  3. 100% original Xhorse make, free shipping via dhl
  4. Condor XC-Mini Master User Manual
  5. With 3 Years Warranty, Engineer online technical support
  6. Support more then 60 Global Brands, 2,000 car models and 20,000 all key lost database

Xhorse Condor XC-Mini Plus Key Cutting Machine Newly Update:

  • Add universal key decode function.
  • Modify probe/cutter detection.
  • Add motor sensor testing function.
  • Fix machine may crash error problem.
  • Add M2-D function.
  • Fix HU49 key decode error.
  • Fix Fix HU66 cutting speed issue.

Clamp Equipped:

Condor XC-Mini automatic key cutting machine stranderdly includes two clamps M1 and M2 support sided, track, dimple and tibble keys, some dimple/tibble keys need M3 optional clamps used for Ford FO21 & CItroen SX9 keys.

Built—in Database:

Built-in actuate database,detailed parameters, schematic sample depth key tool available for users, according to the blank key data,  edit key shape, space flat, depth for making a new key data. It is convenient to synchronize the new key data to machine.

Patent Certificate:

Condor XC-Mini Plus has appearance Patent Certificate, computer software copyright registration Certificate, Untility Model Patent Certificate etc.

Essential Tool for All Key Lost:

Condor Mini Plus contains three powerful functions for all keys lost key database, cut by butting & find bitting, esstional tool for locksmith all key lost job easier to be completed.

Manufacture Process:

Aluminum main body, partial made by 304 stainless steel matertals.  net weight 18KG is lightweight machine with stable structure. Machine used 3-Axis precison Ball screw transmisson with higher accuracy & stability than T screw transmisson


  1. New update for both SN KM02/KM03 machines.
  2. New function:Main Interface-Key Duplication-Universal Type.
  3. Universal Type support decode/cutting parts of home & vehicle keys.
  4. Please keep the whole key clean and conductivity good(ensure without dust/oil)
  5. One side key thickness of whole key usually 1.5mm or 2.00mm. Add a shim/business under the key to ensure the whole thickness of key 3mm.

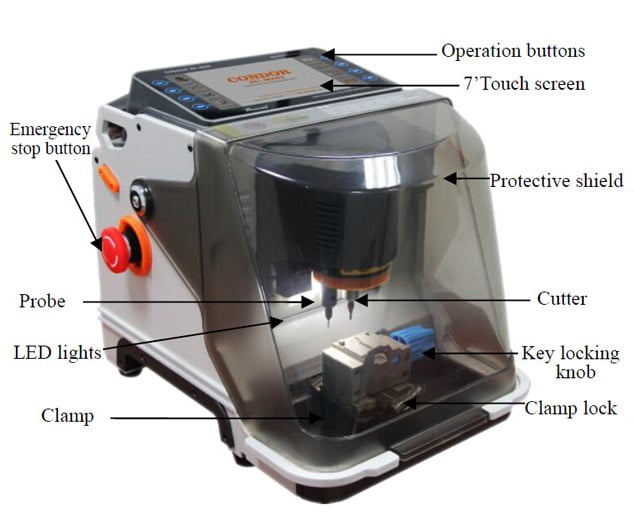

Condor XC Mini Master Overview:

Xhorse Condor XC-Mini Plus Key Cutting Machine Overview

Xhorse Condor XC-Mini Plus Key Cutting Machine Master Features:

  1. Built-in Database, can easily find key information.
  2. 7” Capacitive Touch Screen.
  3. 3-Axis Precision Ball Screw Transmission.
  4. Cross Rail.
  5. All Aluminum Machine Body.
  6. Single machine with both Tracer/Cutter.
  7. Standard include three clamps M1/M2/M3.
  8. Support Sided/Track/Dimple/Tibbe keys.
  9. Some Dimple/Tibbe keys need optional clamps.

iKeycutter CONDOR Master Update Steps:

  1. Connect iKeycutter CONDOR XC-MINI Master to the PC with a USB cable.
  2. Turn on the iKeycutter CONDOR XC-MINI Master.
  3. Click “Update online” button to start update.
  4. The screen will appear “Updating” prompt.
  5. Wait for the update completed.


  1. Don’t turn PC off or unplug USB cable during updating.
  2. Data downloading and firmware upgrading may take some time
  3. If the update fails. Turn anti virus software off and try again.

How to connect Condor XC Mini Key Cutting Machine in office

Xhorse Condor XC-Mini Plus Key Cutting Machine Specification:

  • Input voltage: 90V-264VAC.
  • Input frequency: 47-63Hz.
  • Consume: 200W.
  • Package Dimensions: L450xW450xH350mm.
  • Machine Dimensions: L265xW362xH301mm.
  • Spindle Speeds: 900rpm.
  • USB: USB2.0.
  • Working Temperature: 0-50℃.
  • Humidity: 10-90%.
  • Net Weight: 18Kg.
  • Gross Weight: 22.9Kg.

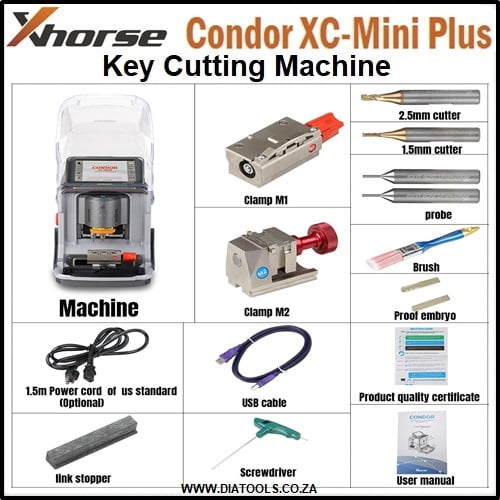

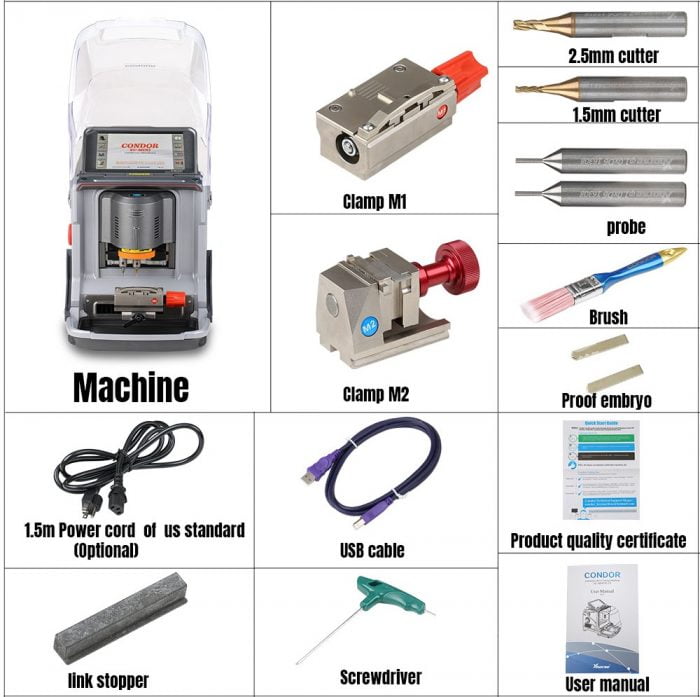

CONDOR XC-MINI Plus Package List:

  • CONDOR XC-MINI Plus Machine Body
  • 1.5mm Cutter
  • 2.0mm Cutter
  • 2.5mm Cutter
  • 1.0mm Probe
  • Power cord (1.5m) (Chinese Standard)
  • USB Cable(1.5m)
  • Brush
  • M1 Clamp for Single/Double sided keys
  • M2 Clamp for Channel-track keys
  • Quick Start Guide
  • User Manual

Xhorse Condor XC-Mini Plus Key Cutting Machine Package list 2



Weight 21 kg
Dimensions 48 × 37 × 37 cm
