iCarsoft CR MAX OBDII Full System Diagnostic Tool

Original price was: R8,699.00.Current price is: R7,499.00.

SKU: iCarsoft CR MAX Category: Tag:

iCarsoft CR MAX Professional And Powerful OBDII Full System Diagnosis Tool With Superior Special Functions

The iCarsoft CR MAX is a professional and powerful vehicle fault diagnosis tool for multi-brand vehicles (Over 40 kinds of vehicle makes) developed by iCarsoft technology. With a 7.0” lcd capacitive touchscreen and a displays at 1024 x 600 quality. CR MAX has the ability to quickly read and clear DTCS for all available modules of majority vehicle makes and models on the market. CR MAX provides you with superior special functions. it features full ECU diagnosis of most vehicle brands and test modes mainly include: Can bus, iso9141, kwp2000, and j1850 etc. it enables technicians to accurately diagnose complex problems.

ALL ICARSOFT PRODUCTS: Https://Www.Diatools.Co.Za/Brand/Icarsoft/

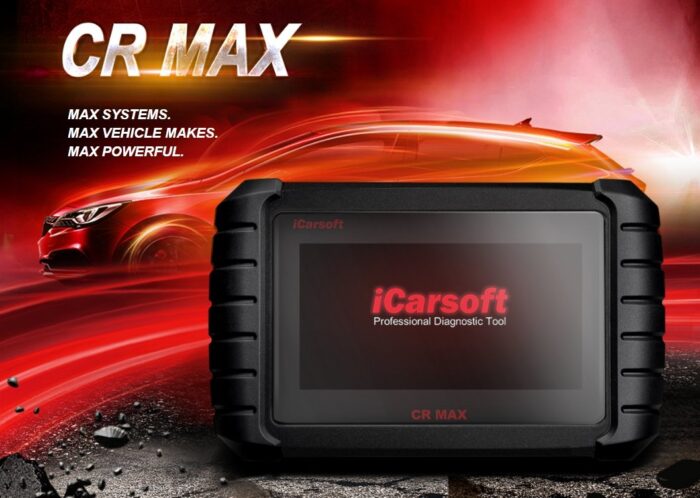

iCarsoft CR MAX OBDII Full System Diagnosis Tool

iCarsoft CR MAX Product Features:

  1. Comprehensive OBD relearn coverage.
  2. Onscreen relearn procedure.
  3. Read & Clear codes for available systems.
  4. Display live data in text, graph and analog for easy data review.
  5. Auto VIN technology: Automatically identify model and year information.
  6. Actuation Test / Bi-directory Test is used to access vehicle-specific subsystem and component tests.
  7. Steering Angle Sensor (SAS) calibration: Calibrates the steering wheel or recalibrates SAS.
  8. Oil Light/Service Reset: Support service lamp reset, reset service mileage and service intervals.
  9. Electronic Parking Brake (EPB): System maintenance deactivates and reactivates the EPB system for replacement and initialization.
  10. Diesel Particulate Filter (DPF): Regeneration control system.
  11. Battery Management System (BMS): Registers new battery.
  12. Electronic Throttle Control system (ETC): Relearns the throttle valve control value.
  13. ABS Bleeding: Release the air to restore ABS brake sensitivity.
  14. Injector coding: Relearn the injector control parameter.
  15. TPMS programming: Look up the tire sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.
  16. AFS Head Lamp reset: Means that the adaptive front lighting system can be rotated to either side.
  17. Air Suspension: Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
  18. Gearbox Reset: Reset Transmission Adaptive Learning DIY.
  19. Air conditioning service: Calibration of air-conditioning related control units, namely: additional calibration of air mass flow, etc.
  20. Air Filter Self-learning process after replacing the air filter.
  21. Fuel Pump activation function: Activate Fuel Pump.
  22. DTC library: look up DTC Fault codes.
  23. Support Freeze Frame of Fault Code functions.
  24. Automatic software upgrade Via Official Website: Https://Www.Icarsoft.Com/
  25. Easy to feedback test questions online.
  26. Provides convenient instruction with customer in interface.
  27. Multi-language: English, German, Dutch, Spanish, French. (More languages will be added in the future.)

Note!

  • Certain functions is limited from vehicle makes and models.
  • This scan tool covers 20 years models and some functions may not be available on all years and models.
  • We reserve the rights to make any change to this description without notice.

iCarsoft CR MAX Product Features

Specifications:

  • Dimensions (W*H*D): 240.0mm*150.0mm*35.0mm
  • Operating System: Android 8.10.
  • Processor: 4Nuclear 1.3GHz.
  • Display: 7-inch LCD capacitive touchscreen with 1024 x 600 resolution.

OBDII Function:

  1. Read Codes.
  2. Erase Codes.
  3. I/M Readiness: Indicate whether or not the various emissions-related systems on the vehicle are operating properly and ready for Inspection and Maintenance testing.
  4. DataStream.
  5. Freeze Frame: Emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
  6. O2 Sensor Test: Allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
  7. On-Board Monitoring: This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
  8. Evap System Test: EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
  9. Vehicle Information: Displays the vehicle identification number (VIN), calibration verification number (CVN).
  10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
  11. Turn off Check Engine Light (MIL), clear codes and reset monitors.
  12. Read live PCM DataStream.
  13. Support CAN (Controller Area Network) and all other.
  14. Multilingual menu and DTC definitions: English, Spanish and German etc.
  15. Read pending DTCs.
  16. Read permanent DTCs.
  17. DTCs search.
  18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
  19. Works on most of 2001 and newer OBDII compliant PETROL European vehicles.
  20. Support most of 2004 and newer OBDII compliant DIESEL European vehicles.
  21. Works on most of 1996 and newer OBDII compliant US and Asian vehicles.
  22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
  23. Comprehensive Help, Including OBD Parameter, Mode Explanations and More.

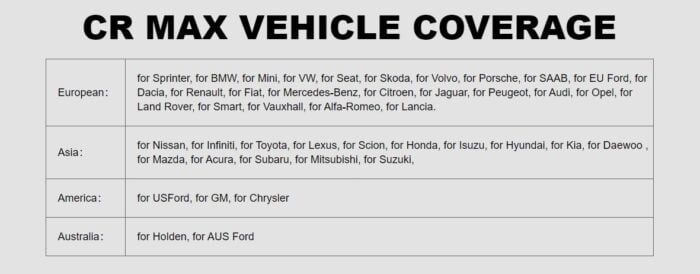

Vehicle Coverage:

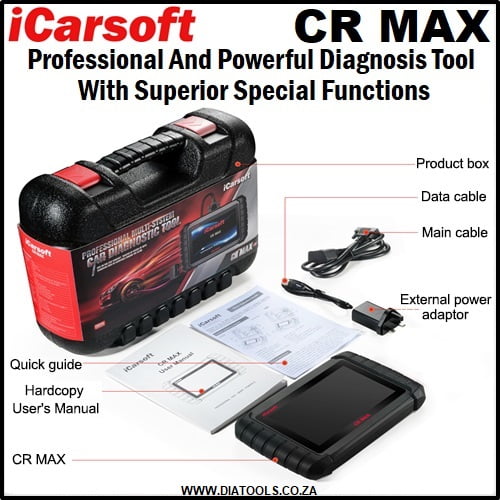

Contents:

  1. Main Unit CR MAX.
  2. Main OBD2 Cable.
  3. USB connecting Cable.
  4. External Power Adapter.
  5. Quick Guide Manual.
  6. User’s Manual
  7. Packaging item box.
Weight2 kg
Dimensions48 × 34 × 20 cm
