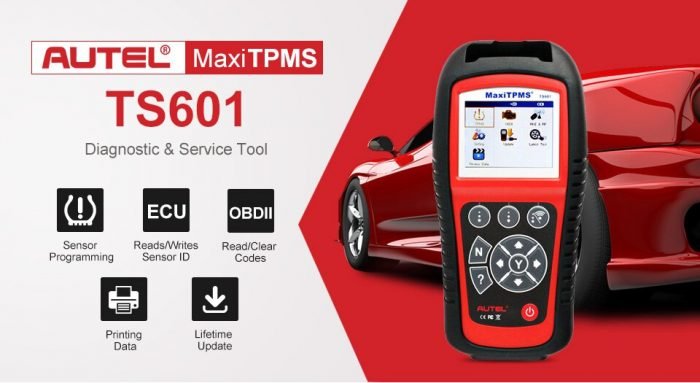

Autel MaxiTPMS TS601 TPMS Tool And Diagnostic Tool


SKU: AUTEL MaxiTPMS TS601 Categories: , Tag:

Autel MaxiTPMS TS601 TPMS Check / Relearn / Sensor Programming, Diagnostic Scan Tool, Full OBDII Functions, Printing Data, Lifetime Update

The Autel MaxiTPMS TS601 is the most powerful TPMS diagnostic & service tool in the world capable of fully diagnosing TPMS problems as well as activating TPMS sensors and reprogramming the vehicle’s ECU. This professional tool is the best solution for tire shops and automotive workshops to perform TPMS service!

All Autel Products Link:


AUTEL MaxiTPMS TS601 Update and Warranty:

Supported Languages: English, Traditional Chinese, French, German, Spanish, Dutch, Polish, Swedish, Russian, Italian, Hungarian, Czech.

Professional TPMS Diagnosis and Programming:

The easy-to-use TPMS tool Autel TS601 provides users with unparalleled experience of efficiency and accuracy for complete TPMS diagnosis. Instead of simply checking the sensor data, sensor ID, tire pressure/temperature, battery condition, sensor position and diagnosing the TPMS to read/write sensor ID, read/clear TPMS codes (turn off TPMS warning light), retrieve TPMS ECU information, and perform actuation test, this TPMS tool allows user programming the sensor data to MX-sensor and replacing faulty sensor that is with low battery life or is not functioning.

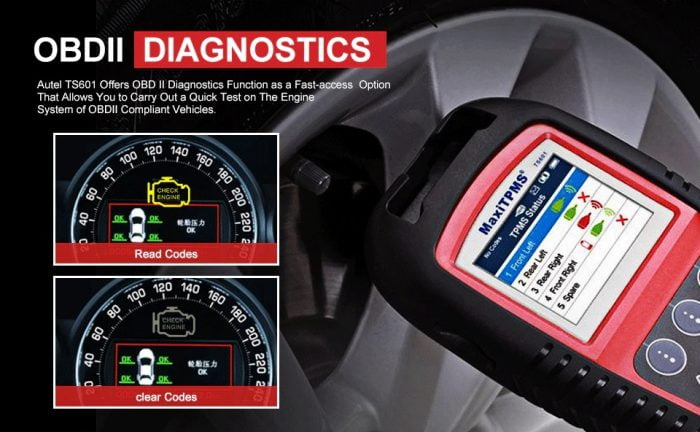

Fast Access to Accurate OBDII Diagnosis:

  • Autel TS601 is the first one to integrate the TPMS tool with OBDII code reader. Except professional diagnosis to the TPMS, you can also perform the exceptional diagnosis to vehicle engine running conditions and the operating status of the exhaust after-treatment, which is called OBDII diagnosis.
  • With OBDII diagnostic functions, you can quickly check the vehicle self-inspection condition, accurately locate the fault that caused the Check Engine Light, and easily turn off the check engine light after the maintenance and repair.

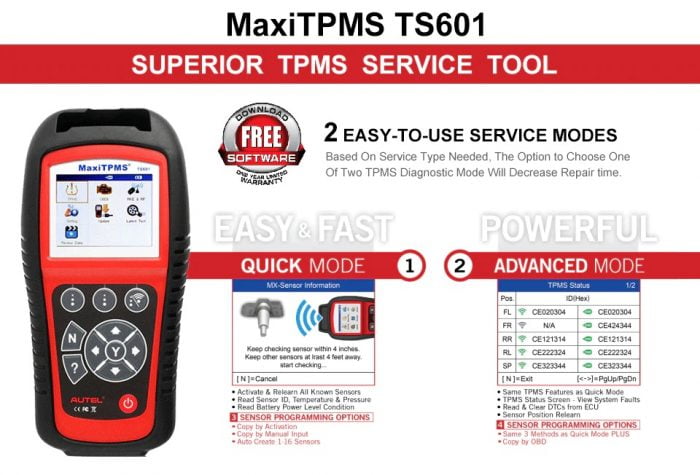

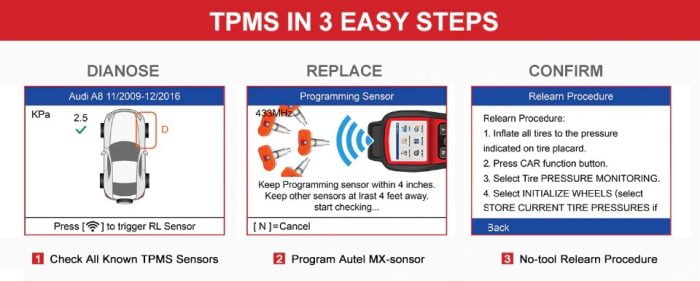

Easy and Fast MX-Sensor Programming:

The TPMS sensor programming can and will only work with the Autel MX-sensor. There are 4 options available for you to complete MX-sensor programming, and they each have their own advantages and characteristics:

  • Auto Create – applying random ID for the tested vehicle.
  • Manual Create – manually input the random ID or the original sensor ID.
  • Copy by OBD – read sensor ID with Relearn function, and write it to MX-sensor.
  • Copy by Activation – automatically write in the retrieved original sensor data to MX-sensor in the case of original sensor is triggered.

Comprehensive TPMS Functions:

  1. Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous
  2. Modulated wave signals.
  3. Receives 315MHz and 433MHz signals.
  4. Reads / writes sensor ID from vehicle ECU.
  5. Read / clears codes of the TPMS system and resets malfunction indicator light.
  6. Reads / activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information.
  7. Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.
  8. Retrieves TPMS ECU information.
  9. Performs actuation tests and special functions.
  10. Programs vehicle ECU to learn sensor IDs and positions.
  11. Capable of programming single tires for Chrysler, Renault, and Citroen.
  12. Checks Remote Keyless Entry (Key FOB) for transmissions.
  13. Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process.
  14. Pre-selection process offers faster activation and diagnostics.
  15. Provides visual and audible responses to confirm sensors are working properly.
  16. On-screen code definitions.
  17. Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions.
  18. Proper LF signal to prevent being fooled by other RF signals.
  19. Built-in rechargeable Li-polymer battery.
  20. Automatic power-off to preserve battery life.
  21. Multilingual support: English, French, and Spanish and more languages around the world.
  22. Lifetime free update on the internet via USB port.
  23. Ergonomic design features strong housing and protective rubber boot.

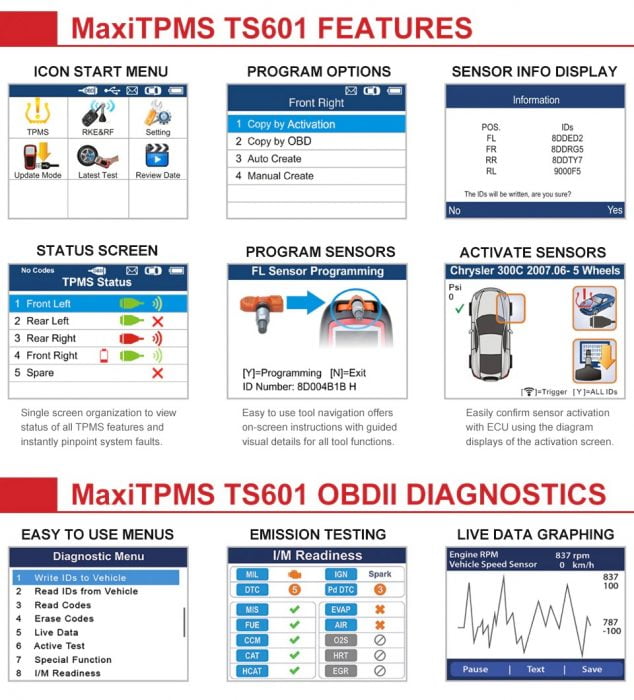

AUTEL MaxiTPMS TS601 Features:

  1. Activates all known OEM/Universal TPMS sensors using 125KHz continuous or modulated wave signals.
  2. Reads sensor data including sensor ID, tire pressure, temperature, battery condition, OEM part number, OEM sensor maker and OEM frequency.
  3. Allows you to directly read feedback from all 4 sensors, clearly view the status of all TPMS sensors, and compare sensor and ECU data to instantly pinpoint system faults.
  4. Offers on-tool relearn procedure for every TPMS-equipped American, Asian and European vehicle. No need for relearning charts or internet lookups.
  5. Programs AUTEL MX-Sensor with multiple options available including Auto Create, Manual Create, or Clone Sensor IDs with no sensor re-learn required for sensor positioning.
  6. Offers OBD II Relearn to write IDs to vehicles directly without further procedures.
  7. Offers visual/audio responses to make the operations much easier to complete.
  8. Checks Remote Keyless Entry-Key FOB for transmissions.
  9. Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions.

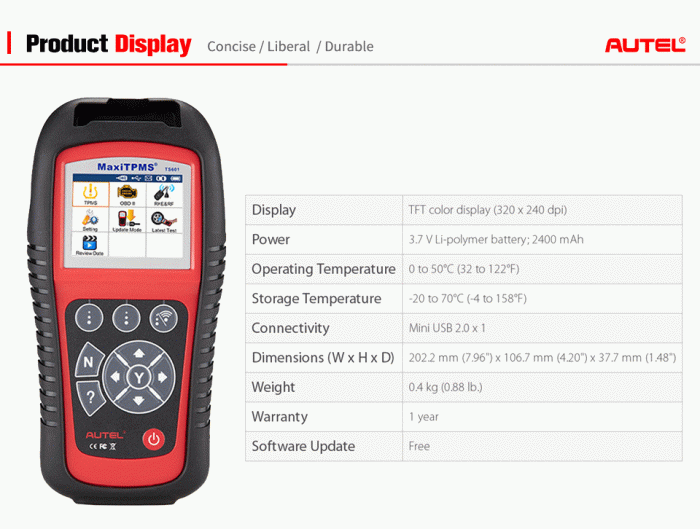

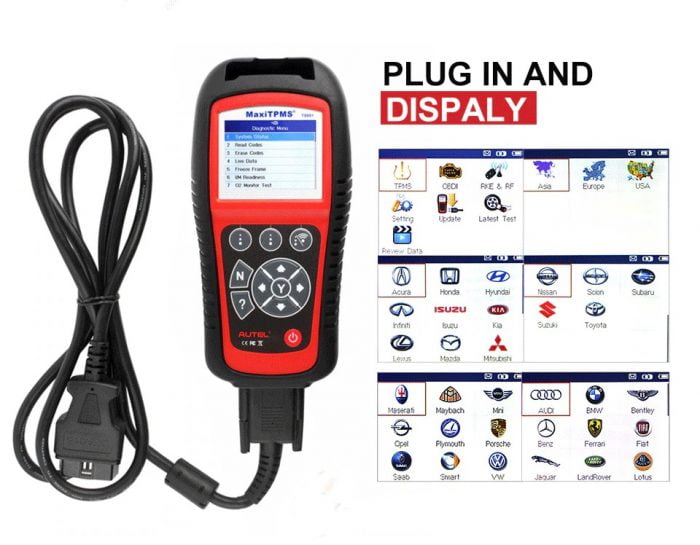

AUTEL MaxiTPMS TS601 Display

AUTEL MaxiTPMS TS601 Vehicle Support:

ABARTH, Acuba, Alfa Romeo, Alpina, Aston Martin, Audi, Bentley, BMW, Bugatti, Buick, BYD, Cadillac, ChangAn, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Dodge, Ferrari, Fiat, Ford, Foton,  Geely, GMC, GreatWall, Haval, Holden, Honda, HSV, Hummer, Hyundai, Infiniti, ISUZU, JAC, Jaguar, Jeep, Junpai, KIA, Lada, Lamborghini, Lancia, LandRover, Lexus, Lifan, Lincoln, Lotus, Mahindra, Maserati, Maybach, Mazda, McLaren, Mercedes Benz, Mercury, MG, Mini, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Plymouth, Pontiac, Porsche, Renault, Rolls-Royce, SAAB, Samsung, Saturn,  Scion, Skoda, Smart, SsangYong, Subaru, Suzuki, Tesla, Toyota, Venucia, Volvo, VPG, VW.

AUTEL MaxiTPMS TS601 Vehicle Support

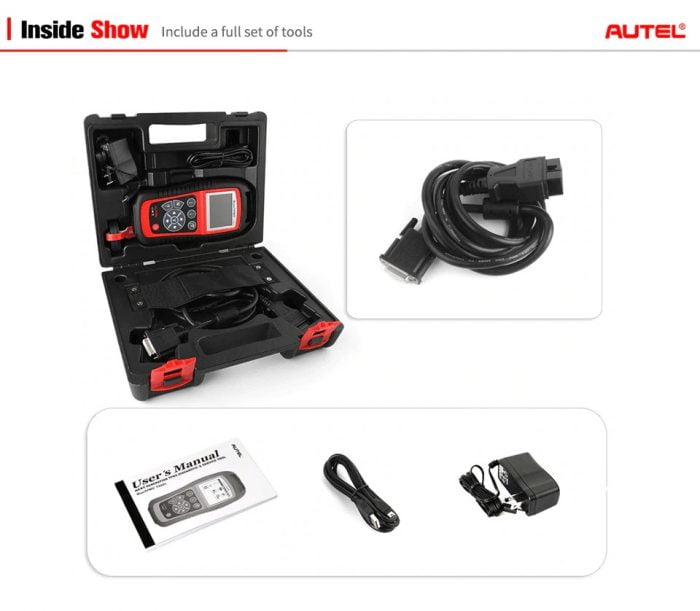

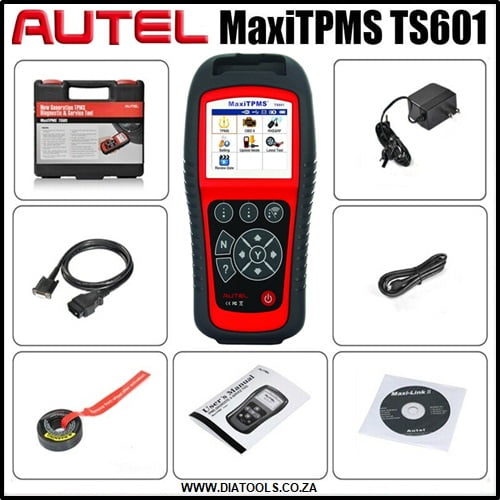

AUTEL MaxiTPMS TS601 Package List

Weight2 kg
Dimensions28 × 25 × 13 cm
