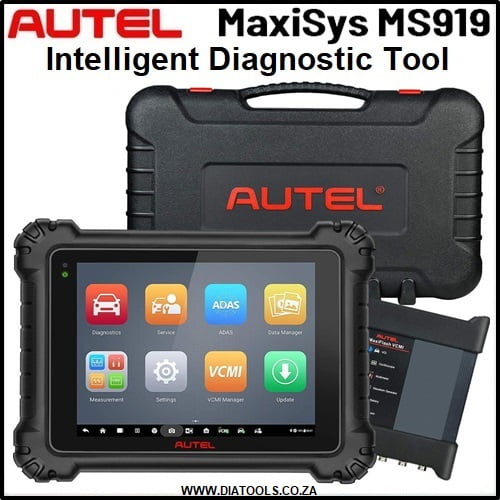

Autel MaxiSys MS919 Ultra Advanced ECU Programmer Auto Diagnostic Tool.
The Autel MaxiSys MS919 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The new MaxiFlash VCMI, functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The supporting MS919 software provides a large library of preset guided tests and extensive waveform library, to ensure techs are getting the most Oscilloscope use. The MS919 software outperforms competitors by offering DTC and sensor specific test options to help test more accurately, as well as providing probe and component location diagrams so technicians test while connected correctly.
ALL AUTEL PRODUCTS LINK: Https://Www.Diatools.Co.Za/Brand/Autel/
Autel Maxisys MS919 Features:
- Autel updates provide latest OE level coverage for over 80 US Domestic, Asian and European vehicles, including supercar.
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming.
- Automatic system and software updates with real-time push message notifications via official website: http://www.Auteltech.Com/
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error.
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.
- MaxiFlash VCMI included.
- Built-In Oscilloscope.
- With Built-In Waveform Generator.
- Built-In Multimeter.
- Built-In CAN bus Check.
The MaxiSys 919 incorporates diagnostics, solution, considerable live data, network coding, and ECU re-flashing. The MS919 has MaxiFLASH VCMI with an integrated Oscilloscope, Multimeter, Signal Generator, and also OBD Bus Examine Features, and links to the Ultra utilizing Wi-fi, so significantly raising the communication speeds. The all-new VCMI additionally has actually Enhanced Protocol Compatibility and sustains D-PDU, RP1210, CANFD. J2534 and DoIP procedures.
The MaxiSys MS919 has all new software professional abilities that we have named Repair Assistance, DTC Analysis, Topology Mapping, and Relevant Cases.
Supported Protocols:
- DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2).

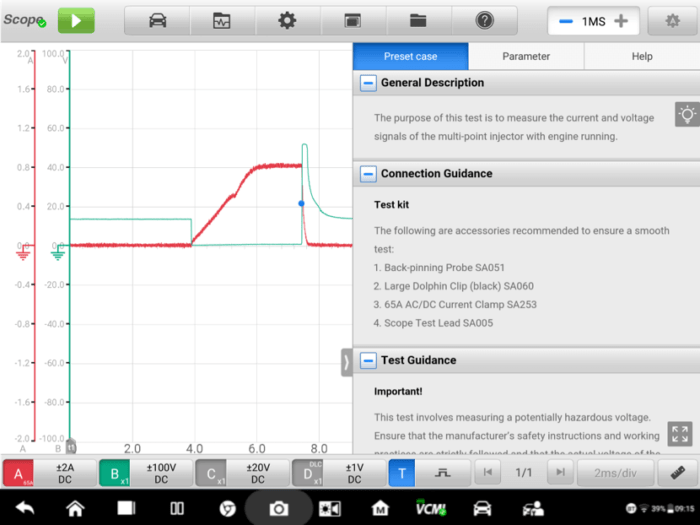

Oscilloscope;
- The 4 Channel Oscilloscope of MaxiSys MS919 is faster with 20MHz Bandwidth, more accurate with 80MS/s sampling data rate, and a 32M memory buffer that stores more complex signals, zoom and replay.
- MaxiSys MS919 pre-set Guided Test and Waveform Library instructs technician’s on use and fault analysis We also provide a large number of cloud preset cases, including connection diagrams, waveform library, reference waveforms, fault case analysis and one-press waveform settings.

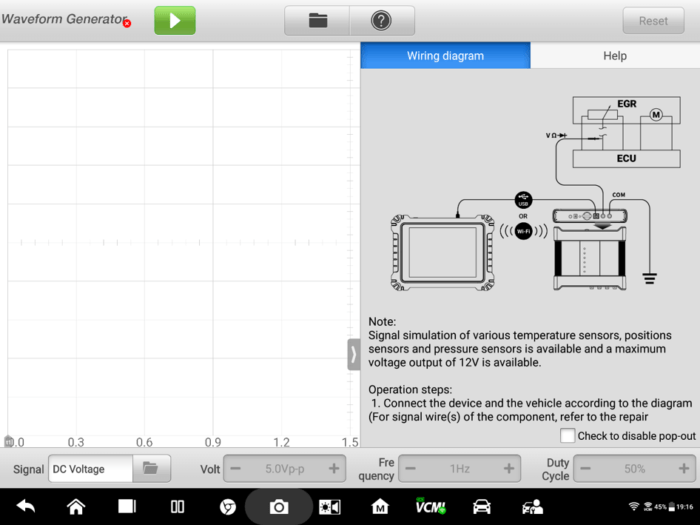

- Waveform Generator – The Waveform Generator of MaxiSys MS919 is used to test a sensor, an actuator, or an ECU without the need to replace them one by one to identify the fault. This is done by simulating signals of various sensors and ECUs, identifying hardware issues.
- Simulates sensor signals to quickly diagnose ECU, sensor, and wiring harness issues;
- It Simulates ECU signals to perform active tests to verify functions of certain parts (Electronic fan, solenoid valves etc);
- Simulates actuator signals and verifies the communication status between the actuator and ECU (Electronic fan, solenoid valve, headlight)

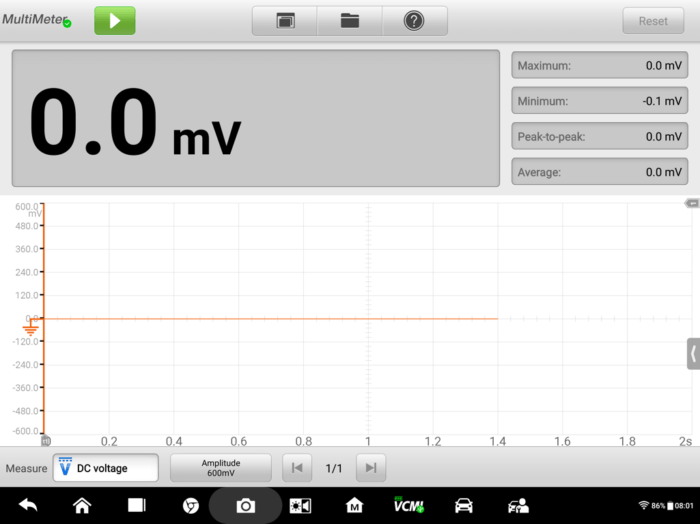

- Multimeter – The professional Multimeter will measure Voltage, Current, Resistance, Diode, Frequency/Period, Duty Cycle, Connectivity and Pulse Width.

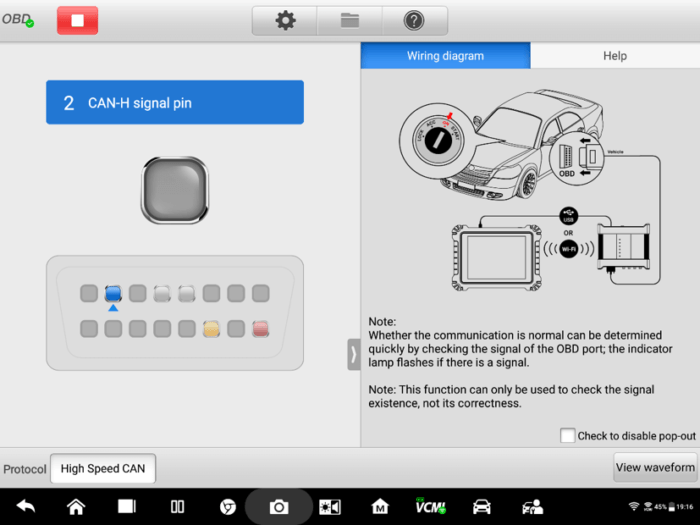

- CAN Bus Check – The CAN Bus Check of MaxiSys MS919 can quickly determine whether the OBD pins are functioning correctly.
- J2534, DoIP Bus, CAN-FD Bus, RP1210 and D-PDU – The Autel VCMI supplied with the Ultra and MS919 supports all the very latest communication and application programming interface protocols.

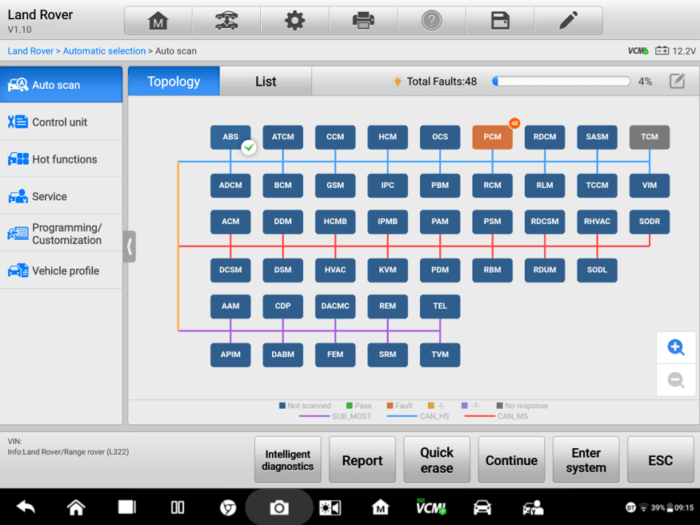

System Topology:
- With our Autel exclusive System Topology Software, the technician can see a color coded topology display for all vehicle systems and their status on one page!
- The display shows the structure of communication between modules, and gives the ability to press on a system module to display any DTC’s and access the system.
- Currently available on BMW, Ford, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda, Toyota Lexus, Jaguar, Land Rover, Mercedes Benz, Hyundai, Kia, Volvo.
- Repair Assistant – MaxiSys MS919 Repair Assist Software displays a list of recommended tests, the completion status and priority for undertaking. Very simply, the higher the priority, the earlier the components should be tested.
- Prioritization – The best solution path is given in priority via automatic sorting.
- Guided Maintenance – An integrated troubleshooting process organized into the operation steps, that guide the user to solve the maintenance problems.
- Accurate recommendation – Automatically match the circuit diagram and pin position required for the fault.
- In the case of multiple inspection steps, you can carry out the inspection step by step, or skip unnecessary steps.
- Currently available on BMW, JLR, GM, Ford, Chrysler and Porsche.
- Relevant Cases – The software automatically recommends repair processes that may be relevant to the vehicle and fault. These repair cases/suggestions provide the technician with great insight when diagnosing and repairing vehicle faults.
- Tech Services Bulletins – See official announcements issued by vehicle manufacturers regarding common problems including vehicle modules, DTCs, repair methods, program updates and recall strategies. Currently available on Ford, GM, FCA, Toyota, Lexus, VW, Nissan, Honda, BMW, Mercedes, Audi, Hyundai, Kia.
- DTC Analysis – The DTC Analysis describes possible causes and solutions for vehicle faults. Currently available on GM, Ford, Toyota, Lexus, Nissan, Honda, VW, Audi, BMW, FCA, Mercedes.
Autel Maxisys MS919 Specifications:
- Operating System: Android 7.0
- Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
- Memory: 4GB RAM & 128GB On-board Memory
- Display: 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
- Connectivity: Wi-Fix2 (802.11 a/b/g/n/ac 2×2 MIMO); BT v.2.1 + EDR; GPS; USB 2.0 (TWO USB HOST Type A, ONE USB mini device); HDMI 2.0; SD Card (Support up to 256GB)
- Camera (rear): Rear: 16 Megapixel, Autofocus with Flashlight; Front: 5.0 Megapixel
- Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
- Audio Input/Output: Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack
- Power and Battery: 15000mAh 3.8V lithium-polymer battery; Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
- Input Voltage: 12V/3A Adapter
- Operating Temperature: 0 to 50°C (32 to 122°F)
- Storage Temperature: -20 to 60°C (-4 to 140°F)
- Dimensions: (WxHxD) 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
- Weight: 1.66kg (3.66lb.)

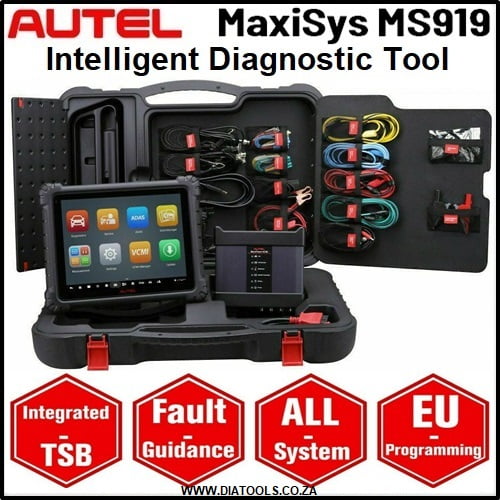

Maxisys MS919 Package List:
- MaxiSys MS919.
- MaxiFlash VCMI.
- Main Cable V2.0
- USB 2.0 Cable V2.
- AC/DC Adapter (12V)
- Scope Test Lead (4pcs)
- Multimeter Test Lead (2pcs)
- Secondary Ignitation Pickup (2pcs)
- Attenuator 20:1 (2pcs)
- Breakout Lead (4x6pcs)
- Multimeter Probe (1x2pcs)
- Flexible Back-pinning Probe (2x2pcs)
- Back-pinning Probe (1x5pcs)
- Probe Screw(2pcs) Back-pinning.
- Back-pinning Probe Replacement Needle (20pcs)
- Small Crocodile Clip (2x2pcs)
- Large Dolphin Clip (1x2pcs)
- Cigarette Lighter.
- Light Fuse (2pcs)
- Clipper Cable.
- Quick Reference Guide.
- Carrying Case.
