Ancel PB100 Automotive Power Circuit Probe Tester

Ancel PB100 Automotive Power Circuit Probe Tester, 12V 24V Car Electrical System Test Tool Kit

The Ancel PB100 Automotive circuit tester is designed for both professional mechanics and home-use customers. Supporting equipment electrical systems from 12V to 24V. It reads the real-time data of voltage, current, and resistance quickly and accurately. Assist you to track and locate short circuit and check bad grounding contact.

ALL ANCEL PRODUCTS: Https://Www.Diatools.Co.Za/Brand/Ancel/

Ancel PB100 Features:

• 12V-24V Probe Tester with Wide Compatibility: Ancel PB100 circuit tester is a fast and efficient electrical scanning probe, works for all 12V and 24V electrical system, like cars, boats, trailers, fuel pumps, relays and many other Vehicles.

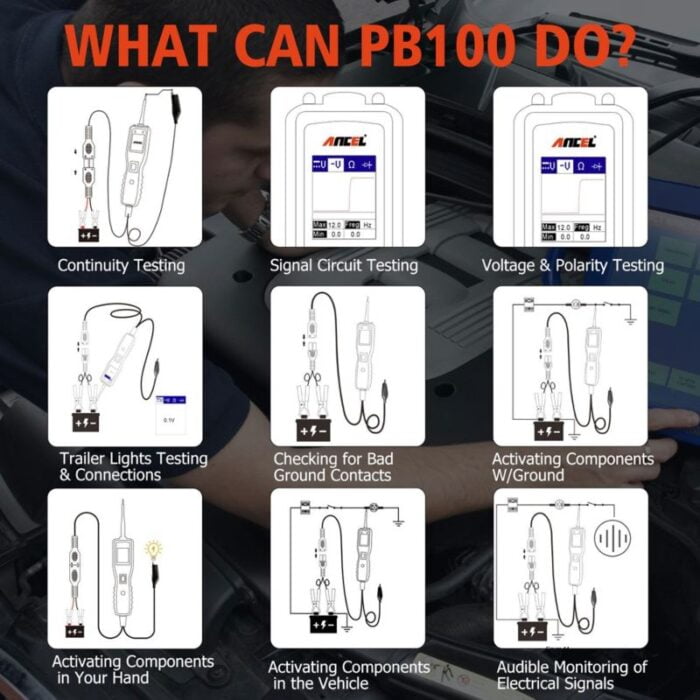

• Electrical Probe Tester with Multi-Function: Designed to do Voltage & Polarity Testing, Continuity Testing, Signal Circuit Testing, Activating Components in your hand and in the vehicle, Testing Trailer Lights and Connections, Activating Components W/Ground, Red/Green Polarity LED, Following & Locating Short Circuits and Checking for Bad Ground Contacts.

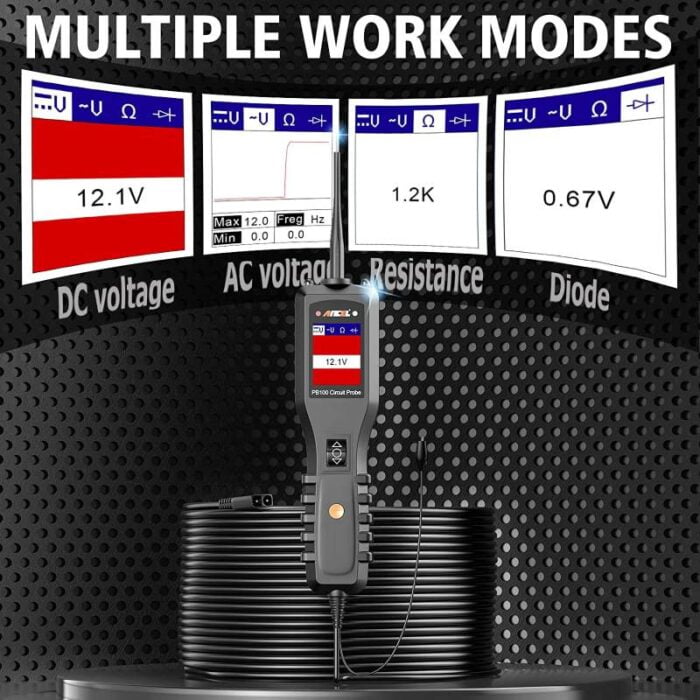

• 4 Work modes and Quick Self-test: The TFT colour back lit display allows the user to read DC Voltage, AC voltage, Resistance and Diode parameters very clear. A quick self-test is a must before testing a circuit or component just to make sure your tool is in good order.
• Automotive Tester with Durable and Safety: Auto circuit breaker makes this tool very safety and durable, it is short-circuit protected as well as a safety measure to protect the tool from overload.
• This unit housed in rugged and with very friendly user interface, even a beginner can easily use it without the manual. Built in two head lights allows you to work in the dark area, Flexible 20ft long allows reaching wires in or out of the vehicle or some congested places. One-Year Limited Warranty.

Product Properties:

• DC voltage range: 0-65V; Resistance range: 0-100 kΩ; Rated current: 1-10 amps; Frequency response of sound passage: 0Hz to 10Khz.
• Perform current injection, measurement, ground test, polarity test, continuity test and component activation.
• Ergonomic housing design with waterproof, rugged, blow-moulded housing, easy to handle and store.
• There are 4 modes to diagnose the electrical systems. (DC voltage, AC voltage, Resistance, Diode)
• AC- RMS, AC peak to peak, frequency and pulse width for signal testing.
• High voltage capability: displays up to 60 volts, 0.1-volt resolution.
• 8-amp circuit breaker, automatic reset, no button to press.
• Three additional modes: MIN / MAX / audible monitoring.
• Automatically detects positive, negative and open circuit.
• Large colour screen LCD with easy to navigate user menu.
• Comes with an additional 20ft extension cable.
• Find shorts to ground and to voltage.

More uses are worth your expectation:

• Find The Short Circuits: In most cases, a short circuit will appear as a blown fuse or a tripping of an electrical protection device. Use the probe tip to activate and energize each of the fuse contacts. The contact which trips the circuit breaker is the shorted circuit.
• Find The Bad Ground: Probe the suspected ground wire or contact with the probe tip. If the circuit breaker tripped, this circuit is more than likely a good ground.
• Testing Trailer Lights: While the tool in DC Voltage mode, clip the auxiliary ground lead to the trailer ground, probe the contacts at the jack and then apply voltage to the probe tip. This lets you check the function and orientation of the connector and trailer lights.
• Check Continuity: While the tool is in Resistance mode, using the probe tip with chassis is ground or the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the vehicle’s electrical system.
• Activating Component: The component activation function is designed to generate activation signals to the tested components, such as activating lights, motors and other on-board electric equipment’s.
• Signal Circuit Testing: Once you extract a DTC from the vehicle and realize that troubleshooting begins with some kind of sensor circuit, there is a quick test you can perform to verify the code. Testing your sensor is easy while using the tool.
• Voltage & Polarity Testing: While the tool is in DC Voltage mode, contact the probe tip to a POSITIVE circuit. If contact the probe tip to an OPEN circuit, neither of the LED will light.

Specifications:

• PB100 Display:2.8” TFT colour display(160*128dpi).
• External Power: 12.0 or 24 V power provided via vehicle battery.
• Dimensions(L*W*H): 128*47*28mm(7*1.85*1.10in).
• Net weight 0.1kg0.22LB.

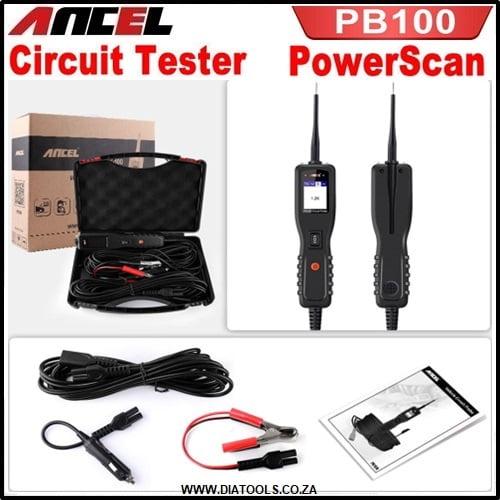

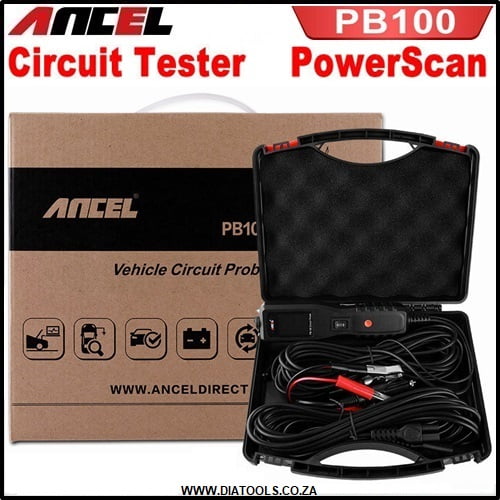

Package list:

• Circuit Probe.
• Extension Cable (20ft).
• Battery Hookup Clips.
• Cigarette Lighter Adapter.
• Protective Case.
• Probe tip.
• User’s Manual.
